SV21-UTPGK (1988)
Toyota Camry/Vista
(8808- )4FC..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55539-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55539-20020J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55539-20020D0 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55539-20020B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3203003 |
CV20,SV2#,VZV20 MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-32010 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-3205102 |
SV21..4FC..(VX,ZX) MAROON,TRIM3# |
1 | ||
| 58804-3205103 |
SV21..4FC..(VX,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58804-3206102 |
SV21..HT..4FC..VX VX ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 58804-3206103 |
SV21..HT..4FC..VX VX ﾘﾐﾃﾂﾄﾞ,MEDIUM GRAY,TRIM1# |
1 | ||
| 58804-3205104 |
SV21..4FC..(VX,ZX) DARK BLUE,TRIM8# |
1 | ||
| 58804-3206104 |
SV21..HT..4FC..VX VX ﾘﾐﾃﾂﾄﾞ,DARK BLUE,TRIM8# |
1 | ||
| 58805B - PANEL SUB-ASSY, CONSOLE, LOWER | ||||
| 58805-3203102 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 58805-3203104 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 58805-3203103 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-3205003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 58811-3205004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 58811-3205002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-3202004 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 58839-3202003 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58839-3202002 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-3202002 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 58901-3202003 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58901-3202004 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-32011 |
CV20,SV2#,VZV20 |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-32040 |
CV20,SV21,22,VZV20 |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30040 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
CV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
SV21..5F..(LUM,VE);SV22..4FC..(VR,ZE);CV20,SV22,25..LT,LUM,VC,VE,VL,XT;SV21,VZV20..4FC..(LUM,PRO,VE,VX,ZX) |
1 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90161-26008 | ||||
| 90176-04015 | ||||
| 90254-03007 | ||||
| 90541-06021 | ||||
| 93566-54514 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||

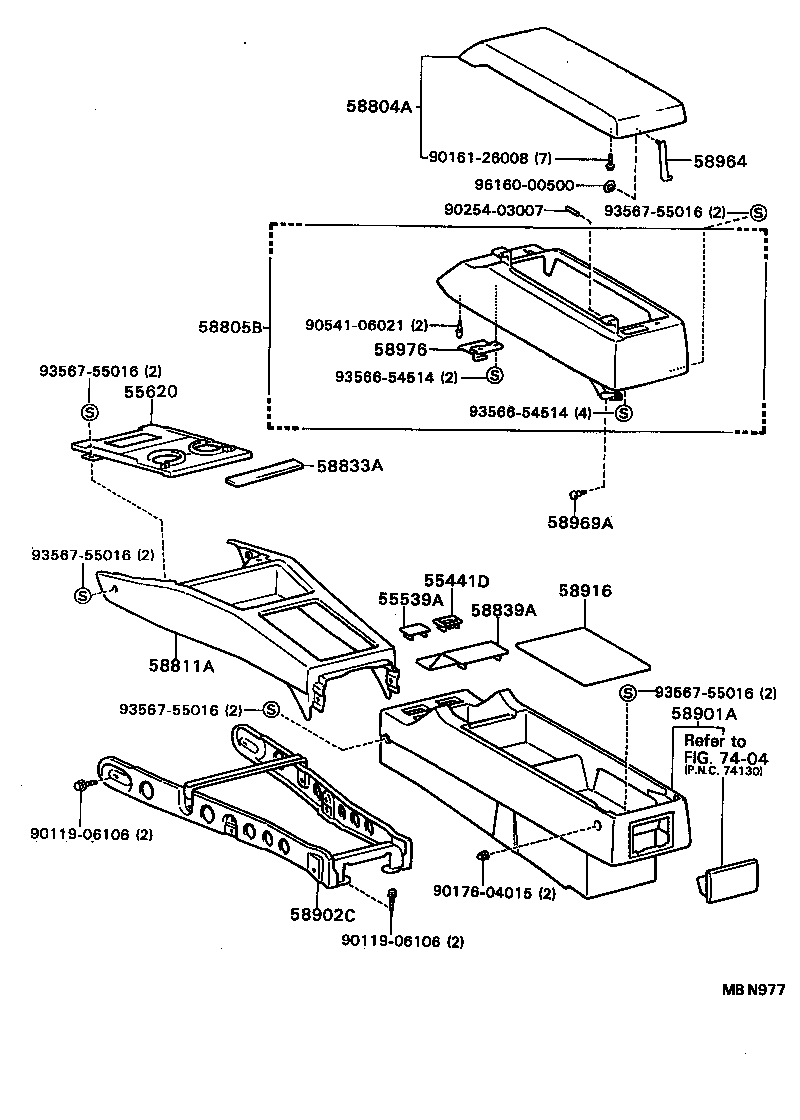

| Linked diagrams | ||||
| 7404 | ||||
