SV21-UTPGK (1986)
Toyota Camry/Vista

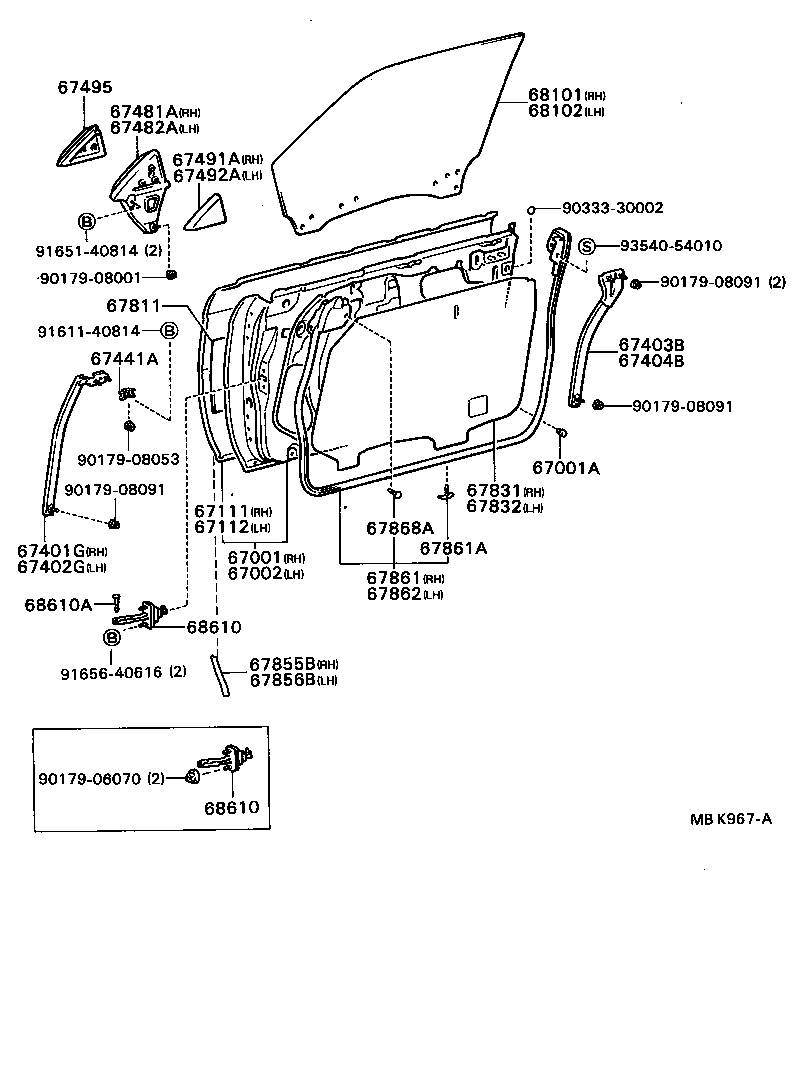

ILLUST NO. 1 OF 2(8608- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-32230 |
SV2#..HT |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09054 |
SV2#..HT |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-32220 |
SV2#..HT |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32060 |
SV2#..HT |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32060 |
SV2#..HT |
1 | ||
| 67401G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH | ||||
| 67401-32090 |
SV2#..HT |
1 | ||
| 67402G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH | ||||
| 67402-32090 |
SV2#..HT |
1 | ||
| 67403B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH | ||||
| 67403-32030 |
SV2#..HT |
1 | ||
| 67404B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH | ||||
| 67404-32030 |
SV2#..HT |
1 | ||
| 67441A - PLATE, FRONT DOOR FRONT GUIDE, UPPER | ||||
| 67441-32020 |
SV2#..HT |
2 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-32080 |
SV2#..HT |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-32070 |
SV2#..HT |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32090 |
SV2#..HT |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32090 |
SV2#..HT |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67496-32050 |
SV2#..HT LH |
1 | ||
| 67495-32050 |
SV2#..HT 右側 |
1 | ||
| 67495-32050 |
SV2#..HT RH |
1 | ||
| 67496-32050 |
SV2#..HT 左側 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
CV20,SV2#,VZV20 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32060 |
SV2#..HT |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-32060 |
SV2#..HT |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32100 |
SV2#..HT |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
SV2#..HT RH |
19 | ||
| 67868-32010 |
SV2#..HT LH |
19 | ||
| 67868-30040 |
SV2#..HT 右側 |
19 | ||
| 67868-32010 |
SV2#..HT 左側 |
19 | ||
| 67868-30050 |
SV2#..HT 左側 |
35 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32100 |
SV2#..HT |
1 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-30020 |
SV2#..HT |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-32130 |
SV2#..HT *TT,厚さ=5.0,*TT,T=5.0 |
1 | ||
| 68111-32140 |
SV20,21..HT;SV25..HT..VR *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-32140 |
SV2#..HT..(GT,VE,VR,VX) *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,BRONZE,*TT,T=5.0 |
1 | ||
| 68111-32130 |
SV2#..HT *TT,厚さ=5.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-32140 |
SV2#..HT..(GT,VE,VR,VX) *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,BRONZE,*TT,T=5.0 |
1 | ||
| 68112-32130 |
SV2#..HT *TT,厚さ=5.0,*TT,T=5.0 |
1 | ||
| 68112-32140 |
SV20,21..HT;SV25..HT..VR *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68112-32130 |
SV2#..HT *TT,厚さ=5.0 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32041 |
CV20,SV2#,VZV20 |
2 | ||
| 68610-32040 |
CV20,SV2#,VZV20 |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32041 |
CV20,SV2#,VZV20 |
2 | ||
| 68610-32040 |
CV20,SV2#,VZV20 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-32010 |
CV20,SV2#,VZV20 |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90179-08053 | ||||
| 90179-08091 | ||||
| 90333-30002 | ||||
| 91611-40814 | ||||
| 91651-40814 | ||||
| 91656-40616 | ||||
| 93540-54010 | ||||

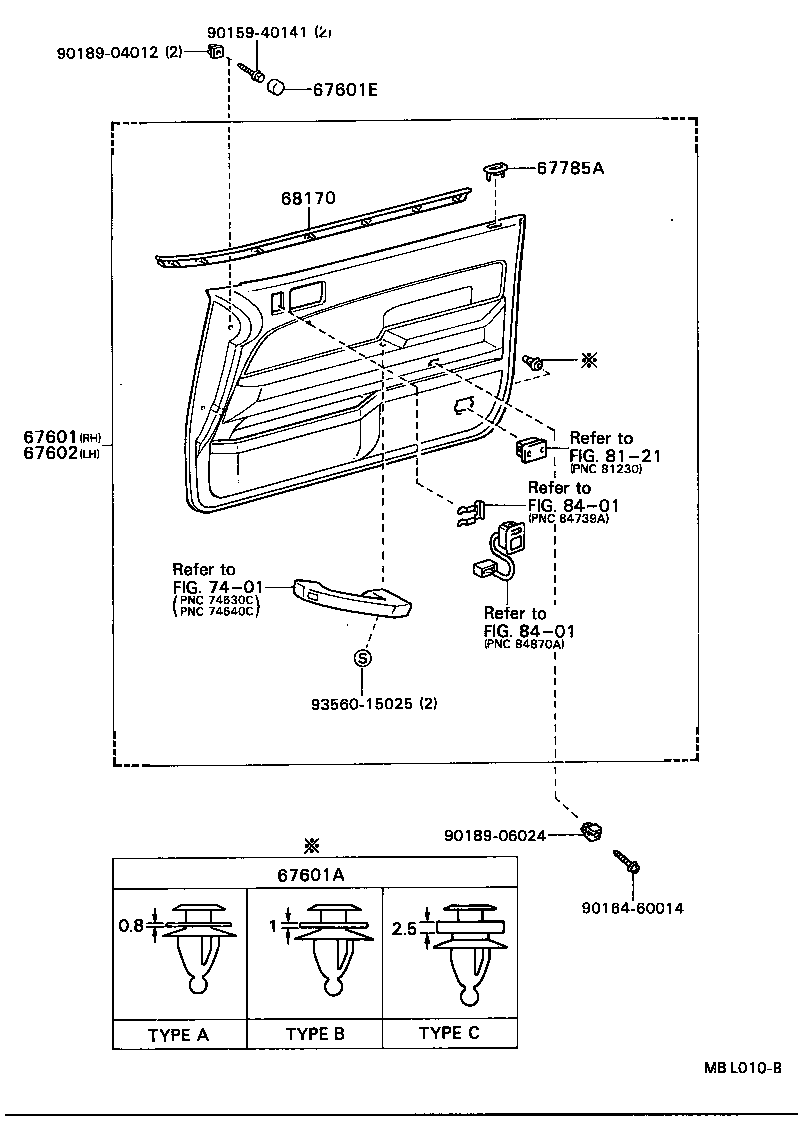

ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3273002 |
SV21..HT..VX W/*DM,MAROON,MAROON,TRIM3# |
1 | ||
| 67610-3273004 |
SV21..HT..VX W/*DM,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-3273005 |
SV21..HT..VX W/*DM,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67650-3203005 |
SV21..HT..VX W/*FM,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67650-3203004 |
SV21..HT..VX W/*FM,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67650-3203002 |
SV21..HT..VX W/*FM,MAROON,MAROON,TRIM3# |
1 | ||
| 67610-3273002 |
SV21..HT..VX MAROON,TRIM3# |
1 | ||
| 67610-3273004 |
SV21..HT..VX DARK BLUE,TRIM8# |
1 | ||
| 67610-3273005 |
SV21..HT..VX DARK BEIGE,TRIM4# |
1 | ||
| 67650-3203005 |
SV21..HT..VX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),DARK BEIGE,TRIM4# |
1 | ||
| 67650-3203004 |
SV21..HT..VX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),DARK BLUE,TRIM8# |
1 | ||
| 67650-3203002 |
SV21..HT..VX ｻﾙ-ﾝ,ｴｸｽﾄﾗ,MAROON,TRIM3# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-32060 |
CV20,SV2#,VZV20 TYPE C |
2 | ||
| 67771-14040 |
CV20,SV2# |
14 | ||
| 67771-14040 |
SV2#..HT |
7 | ||
| 67771-14030 |
CV20,SV2#,VZV20 TYPE B |
4 | ||
| 67771-14040 |
CV20,SV2#,VZV20 ﾀｲﾌﾟ A |
8 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000202 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
4 | ||
| 90339-1000202 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
4 | ||
| 90339-1000205 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000204 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
4 | ||
| 90339-1000205 |
CV20,SV2# DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000204 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3262004 |
SV21..HT..VX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-3262002 |
SV21..HT..VX MAROON,MAROON,TRIM3# |
1 | ||
| 67620-3262005 |
SV21..HT..VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-3262002 |
SV21..HT..VX MAROON,TRIM3# |
1 | ||
| 67620-3262004 |
SV21..HT..VX DARK BLUE,TRIM8# |
1 | ||
| 67620-3262005 |
SV21..HT..VX DARK BEIGE,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32060 |
SV2#..HT RH |
1 | ||
| 68220-32070 |
SV2#..HT LH |
1 | ||
| 68220-32070 |
SV2#..HT 左側 |
1 | ||
| 68170-32060 |
SV2#..HT 右側 |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90189-04012 | ||||
| 90189-06024 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||
| 8401 | ||||
