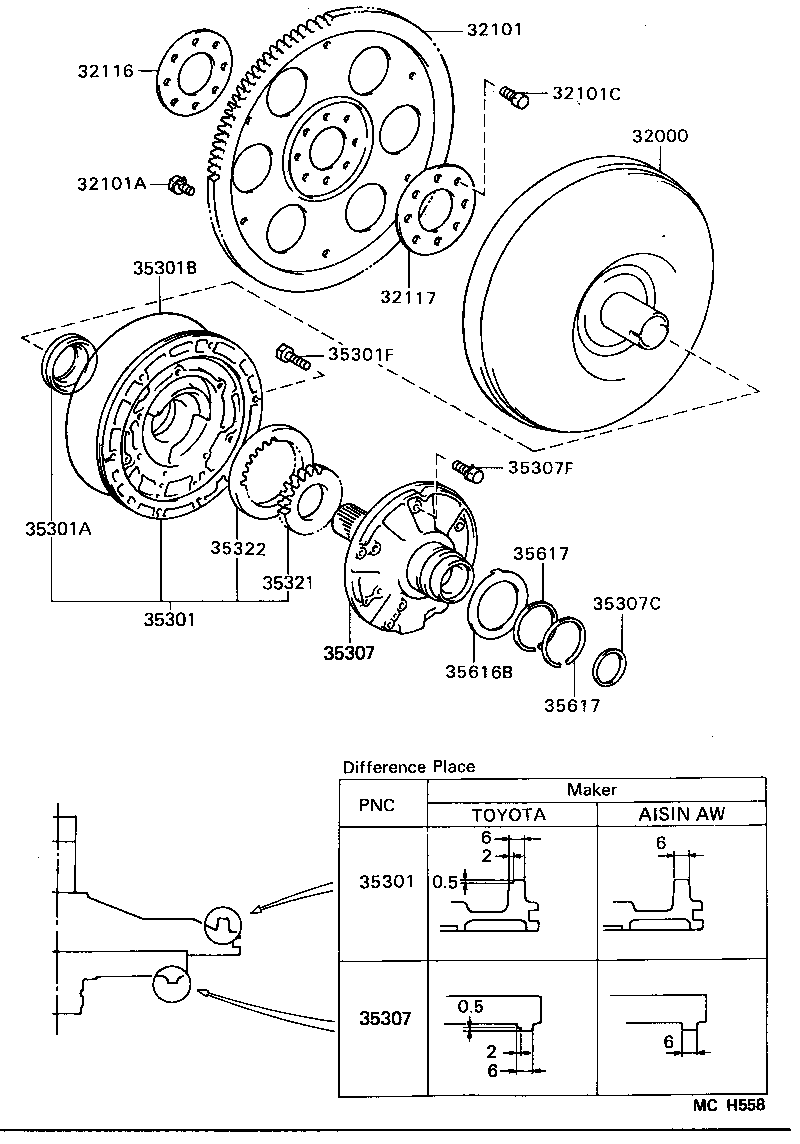

SV21-UTPGK (1986)
Toyota Camry/Vista
(8608- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-32020 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 32000-32040 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 32000-32020 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 32000-32012 |
CV20,SV2#..4FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-32040 |
SV21..4FC..(VE,VX,ZT,ZX) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08113 |
CV20,SV2#,VZV20..4FC *8−1.25PX12−8.4,OLIVE GREEN |
1 | ||
| 90119-08498 |
CV20,SV20,21,VZV20..4FC *8−1.25PX12−8,ﾌﾞﾗｯｸ |
5 | ||
| 90109-08113 |
CV20,SV20,21,VZV20..4FC *8−1.25PX12−8.4,OLIVE GREEN |
1 | ||
| 90119-08498 |
CV20,SV2#,VZV20..4FC *8−1.25PX12−8,BLACK |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90109-10054 |
SV2#..4FC *10−1.25PX22−16 |
8 | ||
| 90109-10054 |
SV20,21..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) *10−1.25PX22−16 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-14020 |
SV20,21..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 32116-14020 |
SV2#..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-14030 |
SV2#..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 32117-14030 |
SV20,21..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32010 |
CV20,SV2#,VZV20..4FC AISIN WARNER |
1 | ||
| 35035-32020 |
CV20,SV20,21,VZV20..4FC TOYOTA |
1 | ||
| 35035-32020 |
CV20,SV2#,VZV20..4FC TOYOTA |
1 | ||
| 35035-32010 |
CV20,SV20,21,VZV20..4FC AISIN WARNER |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32010 |
CV20,SV2#,VZV20..4FC AISIN WARNER |
1 | ||
| 35035-32020 |
CV20,SV20,21,VZV20..4FC TOYOTA |
1 | ||
| 35035-32020 |
CV20,SV2#,VZV20..4FC TOYOTA |
1 | ||
| 35035-32010 |
CV20,SV20,21,VZV20..4FC AISIN WARNER |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90311-38020 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99024 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 90301-99024 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08050 |
CV20,SV2#,VZV20..4FC *8−1.25PX28−28 |
7 | ||
| 90105-08050 |
CV20,SV20,21,VZV20..4FC *8−1.25PX28−28 |
7 | ||
| 35307 - SHAFT SUB-ASSY, STATOR | ||||
| 35370-32031 |
CV20,SV2#,VZV20..4FC TOYOTA |
1 | ||
| 35370-32022 |
CV20,SV20,21,VZV20..4FC AISIN WARNER |
1 | ||
| 35370-32022 |
CV20,SV2#,VZV20..4FC AISIN WARNER |
1 | ||
| 35370-32031 |
CV20,SV20,21,VZV20..4FC TOYOTA |
1 | ||
| 35307 - SHAFT SUB-ASSY, STATOR | ||||
| 35370-32031 |
CV20,SV2#,VZV20..4FC TOYOTA |
1 | ||
| 35370-32022 |
CV20,SV20,21,VZV20..4FC AISIN WARNER |
1 | ||
| 35370-32022 |
CV20,SV2#,VZV20..4FC AISIN WARNER |
1 | ||
| 35370-32031 |
CV20,SV20,21,VZV20..4FC TOYOTA |
1 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-32020 |
CV20,SV20,21,VZV20..4FC 厚さ=0.8,T=0.8 |
1 | ||
| 35789-32030 |
CV20,SV20,21,VZV20..4FC 厚さ=1.4,T=1.4 |
1 | ||
| 35789-32030 |
CV20,SV2#,VZV20..4FC 厚さ=1.4,T=1.4 |
1 | ||
| 35789-32020 |
CV20,SV2#,VZV20..4FC 厚さ=0.8,T=0.8 |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06180 |
CV20,SV2#,VZV20..4FC |
11 | ||
| 90119-06180 |
CV20,SV20,21,VZV20..4FC |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-32050 |
CV20,SV20,21,VZV20..4FC 厚さ=9.456−9.474 |
1 | ||
| 35321-32040 |
CV20,SV2#,VZV20..4FC 厚さ=9.440−9.456,MARK A OR D |
1 | ||
| 35321-32050 |
CV20,SV2#,VZV20..4FC 厚さ=9.456−9.474,MARK B OR E |
1 | ||
| 35321-32040 |
CV20,SV21,VZV20..4FC 厚さ=9.440−9.456,MARK A OR D |
1 | ||
| 35321-32060 |
CV20,SV2#,VZV20..4FC 厚さ=9.474−9.490,MARK C OR F |
1 | ||
| 35321-32060 |
CV20,SV20,21,VZV20..4FC 厚さ=9.474−9.490 |
1 | ||
| 35321-32060 |
CV20,SV21,VZV20..4FC 厚さ=9.474−9.490,MARK C OR F |
1 | ||
| 35321-32050 |
CV20,SV21,VZV20..4FC 厚さ=9.456−9.474,MARK B OR E |
1 | ||
| 35321-32040 |
CV20,SV20,21,VZV20..4FC 厚さ=9.440−9.456 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-32040 |
CV20,SV20,21,VZV20..4FC 厚さ=9.440−9.456 |
1 | ||
| 35322-32050 |
CV20,SV2#,VZV20..4FC 厚さ=9.456−9.474,MARK B OR E |
1 | ||
| 35322-32060 |
CV20,SV20,21,VZV20..4FC 厚さ=9.474−9.490 |
1 | ||
| 35322-32040 |
CV20,SV21,VZV20..4FC 厚さ=9.440−9.456,MARK A OR D |
1 | ||
| 35322-32060 |
CV20,SV2#,VZV20..4FC 厚さ=9.474−9.490,MARK C OR F |
1 | ||
| 35322-32060 |
CV20,SV21,VZV20..4FC 厚さ=9.474−9.490,MARK C OR F |
1 | ||
| 35322-32040 |
CV20,SV2#,VZV20..4FC 厚さ=9.440−9.456,MARK A OR D |
1 | ||
| 35322-32050 |
CV20,SV20,21,VZV20..4FC 厚さ=9.456−9.474 |
1 | ||
| 35322-32050 |
CV20,SV21,VZV20..4FC 厚さ=9.456−9.474,MARK B OR E |
1 | ||
| 35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT) | ||||
| 35616-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35616-32010 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 35617-32011 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 35617-32011 |
CV20,SV20,21,VZV20..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 35617-32011 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 35617-32011 |
CV20,SV20,21,VZV20..4FC |
2 | ||
