SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GT

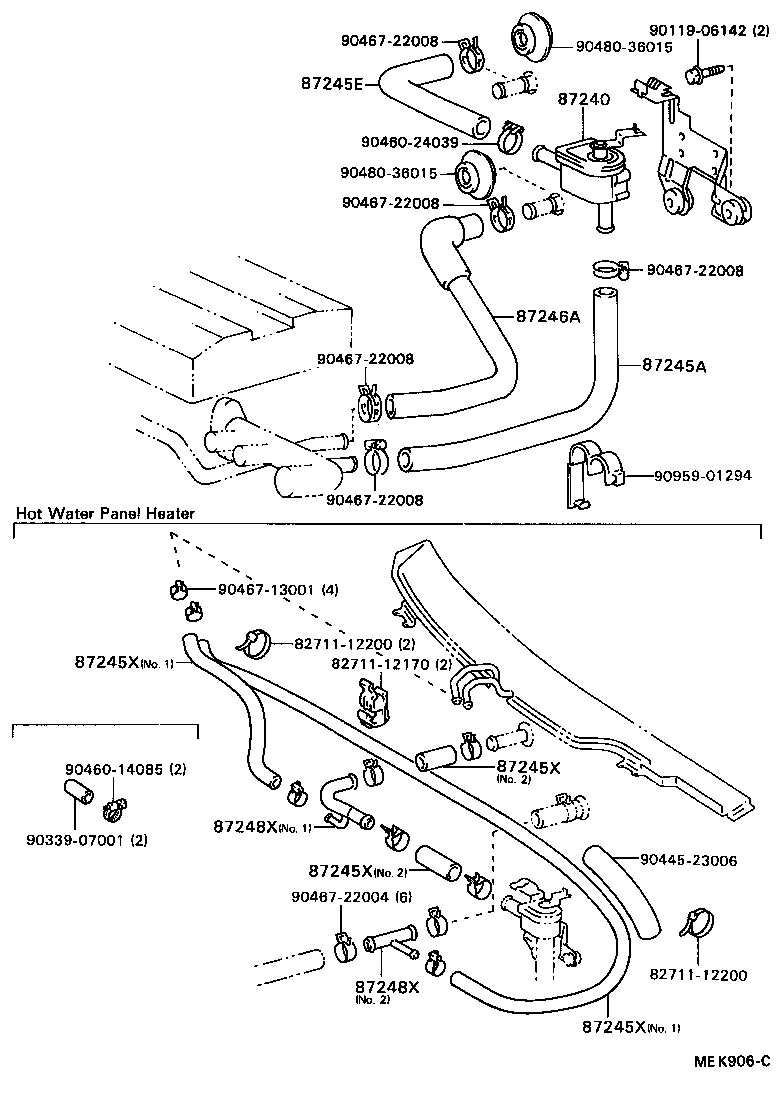

Click highlighted areas on diagram

diagram 8271112170 8271112200 8271112200 87240 87245A 87245E 87245X 87245X 87245X 87245X 87246A 87248X 87248X 9011906142 9033907001 9044523006 9046014085 9046024039 9046713001 9046722004 9046722008 9046722008 9046722008 9046722008 9046722008 9048036015 9048036015 9095901294
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-32040

CV20,SV2#,VZV20

 1
87245A - HOSE, HEATER WATER, INLET A
87245-32160

CV20,SV21,25

 1
87245E - HOSE, HEATER WATER, INLET E
87245-32150

CV20,SV2#,VZV20

 1
87245X - HOSE, HEATER WATER
99556-30100

CV20,SV2#,VZV20

*H,L=50,NO.2

 2
99556-12500

CV20,SV2#,VZV20

長さ=500,NO.1

 1
87245X - HOSE, HEATER WATER
99556-30100

CV20,SV2#,VZV20

*H,L=50,NO.2

 2
99556-12500

CV20,SV2#,VZV20

長さ=500,NO.1

 1
87245X - HOSE, HEATER WATER
99556-30100

CV20,SV2#,VZV20

*H,L=50,NO.2

 2
99556-12500

CV20,SV2#,VZV20

長さ=500,NO.1

 1
87245X - HOSE, HEATER WATER
99556-30100

CV20,SV2#,VZV20

*H,L=50,NO.2

 2
99556-12500

CV20,SV2#,VZV20

長さ=500,NO.1

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32130

SV21..GT

 1
87248X - PIPE, HEATER WATER
87248-32030

SV21,25

NO.1

 1
87248-20300

CV20,SV2#,VZV20

NO.2

 1
87248X - PIPE, HEATER WATER
87248-32030

SV21,25

NO.1

 1
87248-20300

CV20,SV2#,VZV20

NO.2

 1
Common parts
82711-12170
82711-12200
90119-06142
90339-07001
90445-23006
90460-14085
90460-24039
90467-13001
90467-22004
90467-22008
90480-36015
90959-01294
