SV21-UTMVF (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
3SGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )GT,PRO

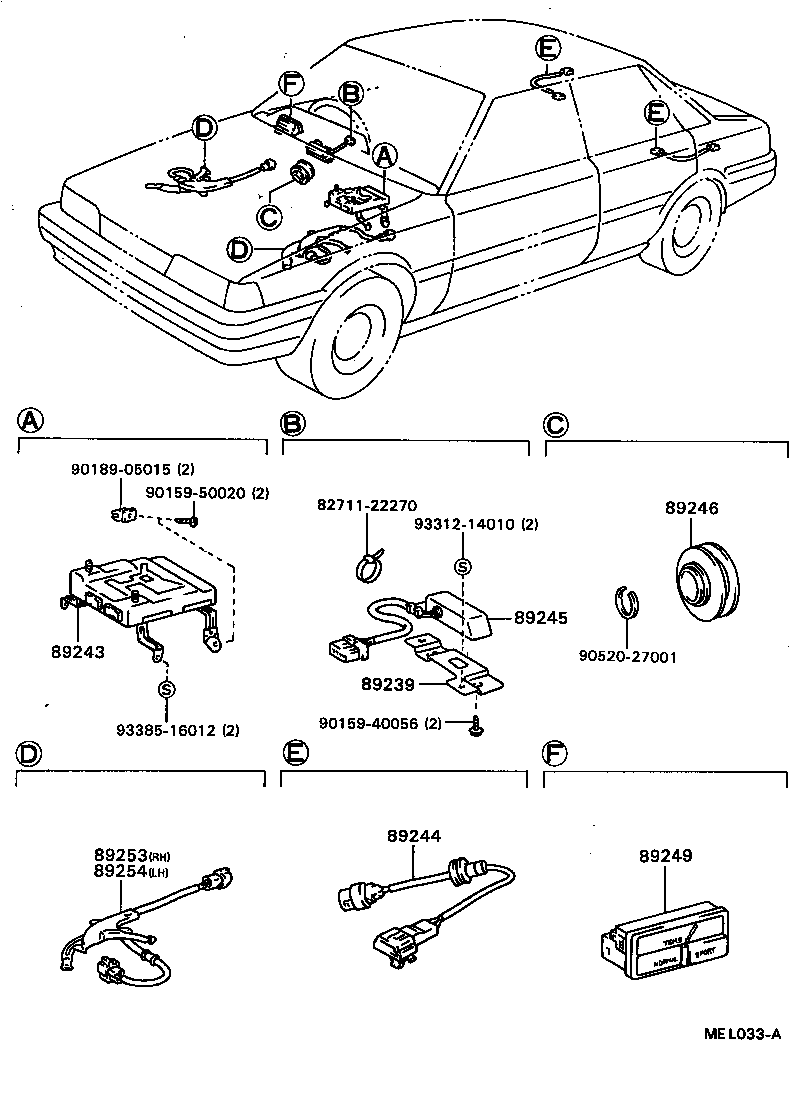

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89239 - BRACKET, STEERING SENSOR | ||||
| 89239-32010 |
SV21,VZV20..GT,PRO |
1 | ||
| 89243 - COMPUTER, ABSORBER CONTROL | ||||
| 89243-32040 |
SV21,VZV20..GT,PRO |
1 | ||
| 89244 - WIRE, ABSORBER CONTROL, REAR | ||||
| 89244-32010 |
SV21,VZV20..GT,PRO |
2 | ||
| 89245 - SENSOR, STEERING | ||||
| 89245-20010 |
SV21,VZV20..GT,PRO |
1 | ||
| 89246 - DISC, SENSOR STEERING | ||||
| 89246-32010 |
SV21,VZV20..GT,PRO |
1 | ||
| 89249 - SWITCH, ABSORBER CONTROL | ||||
| 89249-32020 |
SV21,VZV20..GT,PRO |
1 | ||
| 89253 - WIRE, ABSORBER CONTROL, FRONT RH | ||||
| 89253-32010 |
SV21,VZV20..GT,PRO |
1 | ||
| 89254 - WIRE, ABSORBER CONTROL, FRONT LH | ||||
| 89254-32010 |
SV21,VZV20..GT,PRO |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90159-40056 | ||||
| 90159-50020 | ||||
| 90189-05015 | ||||
| 90520-27001 | ||||
| 93312-14010 | ||||
| 93385-16012 | ||||
