SV21-UTMVF (1988)
Toyota Camry/Vista

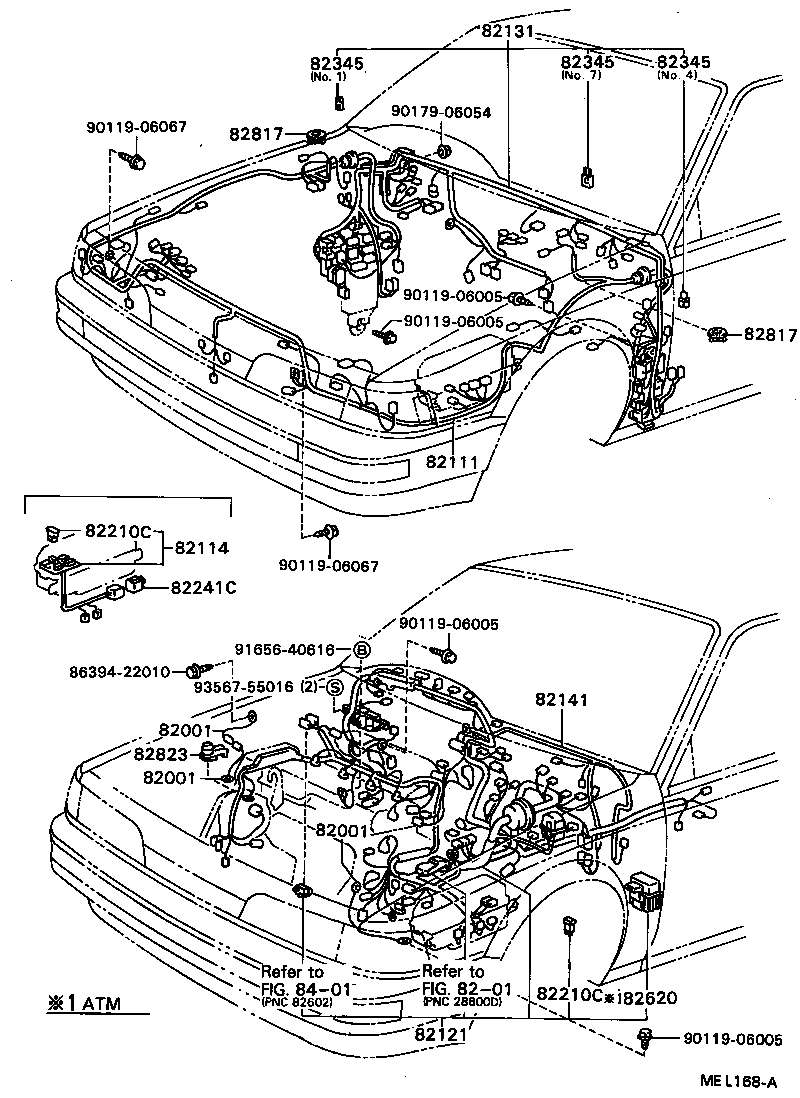

ILLUST NO. 1 OF 5(8808- )SV21,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07136 |
SV2# TRANSMISSION |
1 | ||
| 90980-07287 |
SV2#,VZV20 SUSPENSION TOWER |
1 | ||
| 90980-07307 |
SV21..GT ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07136 |
SV2# TRANSMISSION |
1 | ||
| 90980-07287 |
SV2#,VZV20 SUSPENSION TOWER |
1 | ||
| 90980-07307 |
SV21..GT ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07136 |
SV2# TRANSMISSION |
1 | ||
| 90980-07287 |
SV2#,VZV20 SUSPENSION TOWER |
1 | ||
| 90980-07307 |
SV21..GT ENGINE |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-32440 |
VZV20..5F;VZV20..SED..4FC;SV2#..GT,VR,VX,ZE,ZX |
1 | ||
| 82111-32460 |
SV21..GT;VZV20..5F;VZV20..SED..4FC ｱﾘ(*66) |
1 | ||
| 82111-32450 |
SV21..GT;VZV20..5F;VZV20..SED..4FC ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-)---ﾉｿﾞｸ(*66) |
1 | ||
| 82111-32441 |
VZV20..SED;SV2#..GT,VR,VX,ZE,ZX |
1 | ||
| 82111-32451 |
SV21..GT;VZV20..SED ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-)---ﾉｿﾞｸ(*66) |
1 | ||
| 82111-32461 |
SV21..GT;VZV20..SED ｱﾘ(*66) |
1 | ||
| 82111-32442 |
VZV20..SED;SV2#..GT,VR,VX,ZE,ZX |
1 | ||
| 82111-32462 |
SV21..GT;VZV20..SED ｱﾘ(*66) |
1 | ||
| 82111-32452 |
SV21..GT;VZV20..SED ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-)---ﾉｿﾞｸ(*66) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32090 |
SV2# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-3H330 |
SV21..5F..GT |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-3H800 |
SV21..GT ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 82131-3H790 |
SV21..GT,VX,ZX |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-32450 |
SV25..5F..(VR,ZE);SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-32440 |
SV21,VZV20..GT,PRO |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08253 |
CV20,SV2#;VZV20..5F 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
SV21..5F..GT;SV21,25,VZV20..4FC 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV20 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
CV20,SV2#;VZV20..5F 40A,ﾒｽ端子,緑 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08253 |
CV20,SV2#;VZV20..5F 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
SV21..5F..GT;SV21,25,VZV20..4FC 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08253 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV20 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
CV20,SV2#;VZV20..5F 40A,ﾒｽ端子,緑 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32020 |
SV2#;CV20..5F |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
VZV20..SED;SV21..GT,VX,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
VZV20..SED;CV20,SV21,22..GT,LUM,VE,VX,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
VZV20..SED;SV21..GT,VX,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
VZV20..SED;CV20,SV21,22..GT,LUM,VE,VX,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
VZV20..SED;SV21..GT,VX,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
VZV20..SED;CV20,SV21,22..GT,LUM,VE,VX,ZX COWL WIRE,NO.7 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
CV20,SV2#,VZV20 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
CV20,SV2#,VZV20 |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
SV2#,VZV20 |
1 | ||
| 82823-22050 |
SV21,25 |
1 | ||
| 82823-22050 |
SV2# |
1 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-06054 | ||||
| 91656-40616 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||

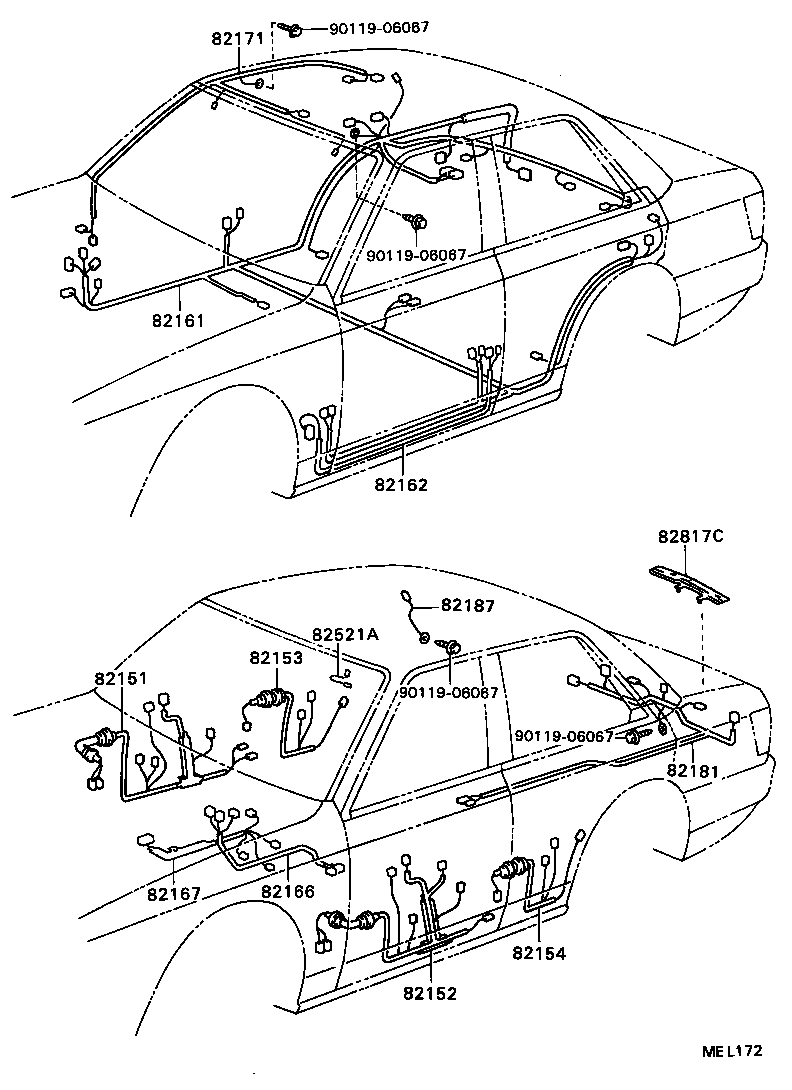

ILLUST NO. 2 OF 5(8808- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32690 |
SV2#..HT..(GT,VR,VX) ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-) |
1 | ||
| 82151-32700 |
SV2#..HT..(GT,VR,VX) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32630 |
SV2#,VZV20..HT..(GT,PRO,VR,VX) |
1 | ||
| 82152-32620 |
SV2#..HT..(GT,VR,VX) ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32150 |
CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-32100 |
CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-3H310 |
CV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 82161-3H320 |
SV21,VZV20..HT..(GT,PRO,VX) ｱﾘ(*66) |
1 | ||
| 82161-3H340 |
SV21..HT..GT ｱﾘ(*66 & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 82161-3H380 |
SV21..HT..GT ｱﾘ(TEMS)---ﾉｿﾞｸ(*66,ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 82161-3H321 |
SV21,VZV20..HT..(GT,PRO,VX) ｱﾘ(*66) |
1 | ||
| 82161-3H311 |
CV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 82161-3H330 |
SV21,VZV20..HT..(GT,PRO,VX) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-32550 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-32040 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32400 |
CV20,SV2#..HT..(GT,VE,VR,VX) |
1 | ||
| 82171-32410 |
CV20,SV2#..HT..(GT,VE,VR,VX) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32330 |
CV20,SV21,22,VZV20..HT |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
ILLUST NO. 3 OF 5(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-22140 | ||||
| 82711-22220 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-2B210 | ||||
| 82711-32460 | ||||
| 82711-32501 | ||||
| 82711-32520 | ||||
| 82711-32600 | ||||
| 82711-32620 | ||||
| 82711-32640 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32670 | ||||
| 82711-32730 | ||||
| 82711-32780 | ||||
| 82711-32810 | ||||
| 82711-32830 | ||||
| 82711-3H090 | ||||
| 82711-3H170 | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
ILLUST NO. 3 OF 5(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20880 | ||||
| 82711-32840 | ||||
| 82715-32010 | ||||
| 82715-32012 | ||||
| 82715-32020 | ||||
| 85373-32010 | ||||
| 90461-08066 | ||||
| 90464-00248 | ||||
ILLUST NO. 4 OF 5(8808- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20010 |
CV20,SV2#,VZV20 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22030 |
SV21..HT..GT |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20010 |
SV2#..HT..(GT,VL) |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
CV20,SV2#,VZV20 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-30010 |
CV20,SV21,VZV20;SV22,25..HT..VL;SV22,25..LUM,VE,VR,ZE |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
CV20;SV21..GT NO.1 |
1 | ||
| 82991-32050 |
SV21..GT NO.4 |
1 | ||
| Common parts | ||||
| 82981-20010 | ||||
| 82982-32010 | ||||
| 82983-32020 | ||||
| 82984-20010 | ||||
| 82987-30010 | ||||
| 82991-20050 | ||||
ILLUST NO. 4 OF 5(8808- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22030 |
SV21..HT..GT |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22030 |
SV21..HT..GT |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20010 |
SV2#..HT..(GT,VL) |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
CV20;SV21..GT NO.1 |
1 | ||
| 82991-32050 |
SV21..GT NO.4 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
CV20;SV21..GT NO.1 |
1 | ||
| 82991-32050 |
SV21..GT NO.4 |
1 | ||
| Common parts | ||||
| 82982-20030 | ||||
| 82982-22030 | ||||
| 82983-20010 | ||||
| 82991-32050 | ||||
| 82991-32060 | ||||
ILLUST NO. 5 OF 5(8808- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
VZV20..SED;SV21..GT,VX,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
VZV20..SED;CV20,SV21,22..GT,LUM,VE,VX,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
VZV20..SED;SV21..GT,VX,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
VZV20..SED;CV20,SV21,22..GT,LUM,VE,VX,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
VZV20..SED;SV21..GT,VX,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
VZV20..SED;CV20,SV21,22..GT,LUM,VE,VX,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
VZV20..SED;SV21..GT,VX,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
VZV20..SED;CV20,SV21,22..GT,LUM,VE,VX,ZX COWL WIRE,NO.7 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-20060 | ||||
| 82345-22051 | ||||
| 82345-32020 | ||||
