SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )HT

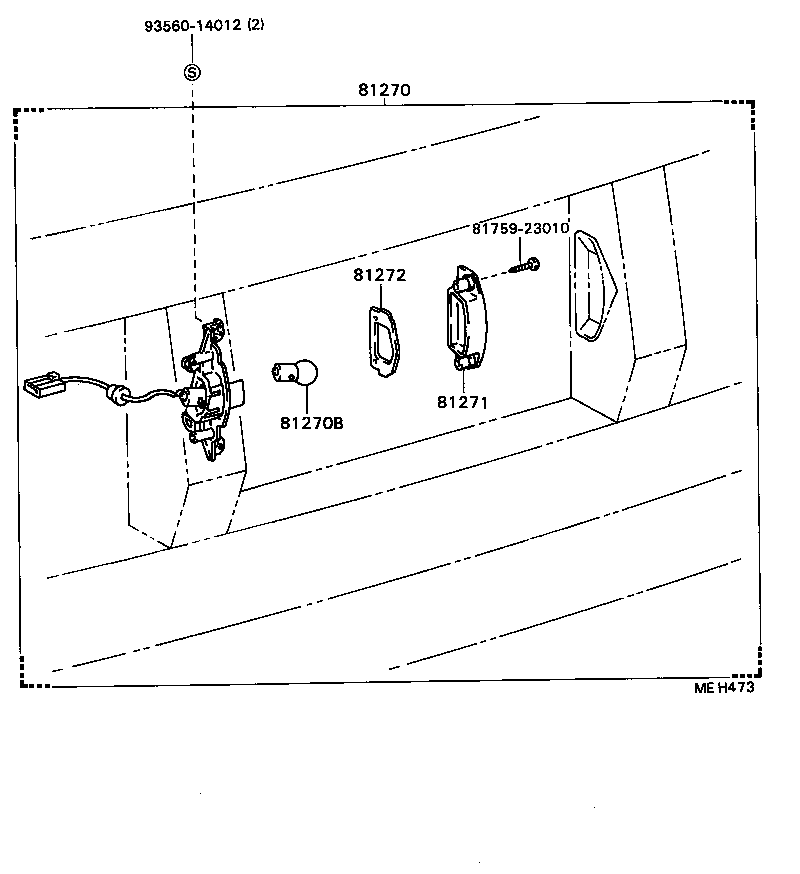

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 8175923010 9356014012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-32170

CV20,SV2#..HT

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

CV20,SV2#,VZV20..HT

12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-20210

CV20,SV2#..HT

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-20210

CV20,SV2#,VZV20..HT

 2
Common parts
81759-23010
93560-14012
