SV21-UTMVF (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
3SGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )CV20,SV2#..HT

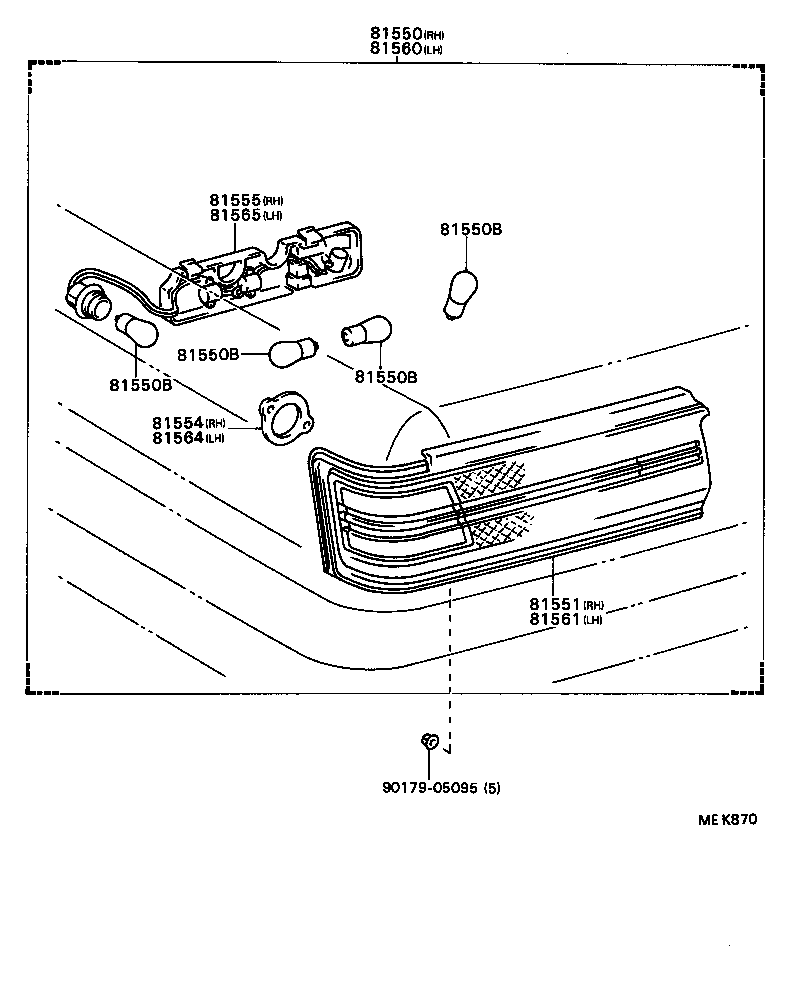

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-32181 |
CV20,SV2#..HT |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
CV20,SV2#,VZV20..HT 12V 21/5W |
4 | ||
| 99132-11210 |
CV20,SV2#,VZV20..HT 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
CV20,SV2#,VZV20..HT 12V 21/5W |
4 | ||
| 99132-11210 |
CV20,SV2#,VZV20..HT 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
CV20,SV2#,VZV20..HT 12V 21/5W |
4 | ||
| 99132-11210 |
CV20,SV2#,VZV20..HT 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
CV20,SV2#,VZV20..HT 12V 21/5W |
4 | ||
| 99132-11210 |
CV20,SV2#,VZV20..HT 12V 21W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-32181 |
CV20,SV2#..HT |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-30450 |
CV20,SV2#,VZV20..HT |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-32181 |
CV20,SV2#..HT |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-32181 |
CV20,SV2#..HT |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-32181 |
CV20,SV2#..HT |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81552-30450 |
CV20,SV2#,VZV20..HT |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-32181 |
CV20,SV2#..HT |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
