SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )HT

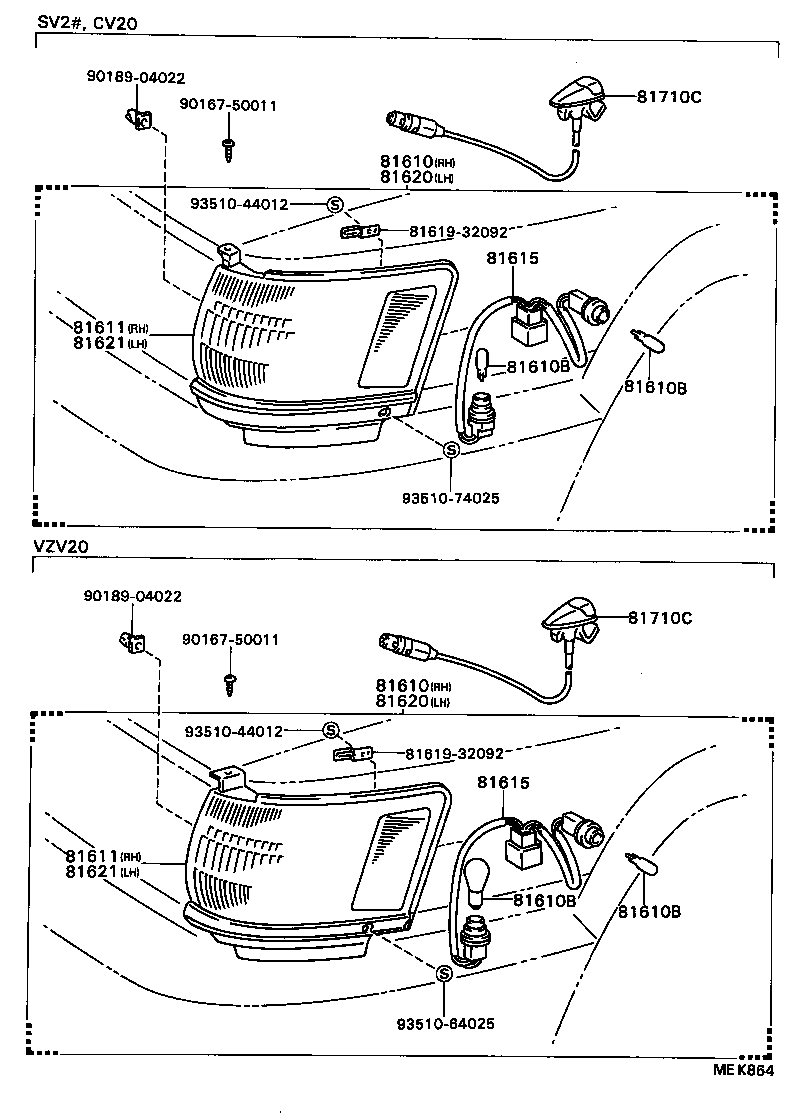

Click highlighted areas on diagram

diagram 81610 81610 81610B 81610B 81610B 81610B 81611 81611 81615 81615 8161932092 8161932092 81620 81620 81621 81621 81710C 81710C 9016750011 9016750011 9018904022 9018904022 9351044012 9351044012 9351064025 9351074025
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-32100

SV2#..HT..(GT,VR,VX)

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-32100

SV2#..HT..(GT,VR,VX)

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX

12V 35/5W

 2
99132-12050

CV20,SV2#..HT..(VE,VL);SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX

12V 5W,12V 5W,SIDE TURN

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX

12V 35/5W

 2
99132-12050

CV20,SV2#..HT..(VE,VL);SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX

12V 5W,12V 5W,SIDE TURN

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX

12V 35/5W

 2
99132-12050

CV20,SV2#..HT..(VE,VL);SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX

12V 5W,12V 5W,SIDE TURN

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX

12V 35/5W

 2
99132-12050

CV20,SV2#..HT..(VE,VL);SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX

12V 5W,12V 5W,SIDE TURN

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-32092

CV20,SV2#..HT

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-32092

CV20,SV2#..HT

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-32130

SV2#,VZV20..HT..(GT,PRO,VR,VX)

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-32130

SV2#,VZV20..HT..(GT,PRO,VR,VX)

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-32100

SV2#..HT..(GT,VR,VX)

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-32100

SV2#..HT..(GT,VR,VX)

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-32092

CV20,SV2#..HT

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-32092

CV20,SV2#..HT

 1
81710C - MARKER ASSY, FENDER
81710-32011

CV20,SV21,25;SV22..LUM,VE,VR,ZE;SV22,VZV20..HT..(PRO,VL)

 2
81710C - MARKER ASSY, FENDER
81710-32011

CV20,SV21,25;SV22..LUM,VE,VR,ZE;SV22,VZV20..HT..(PRO,VL)

 2
Common parts
81619-32092
90167-50011
90189-04022
93510-44012
93510-64025
93510-74025
