SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

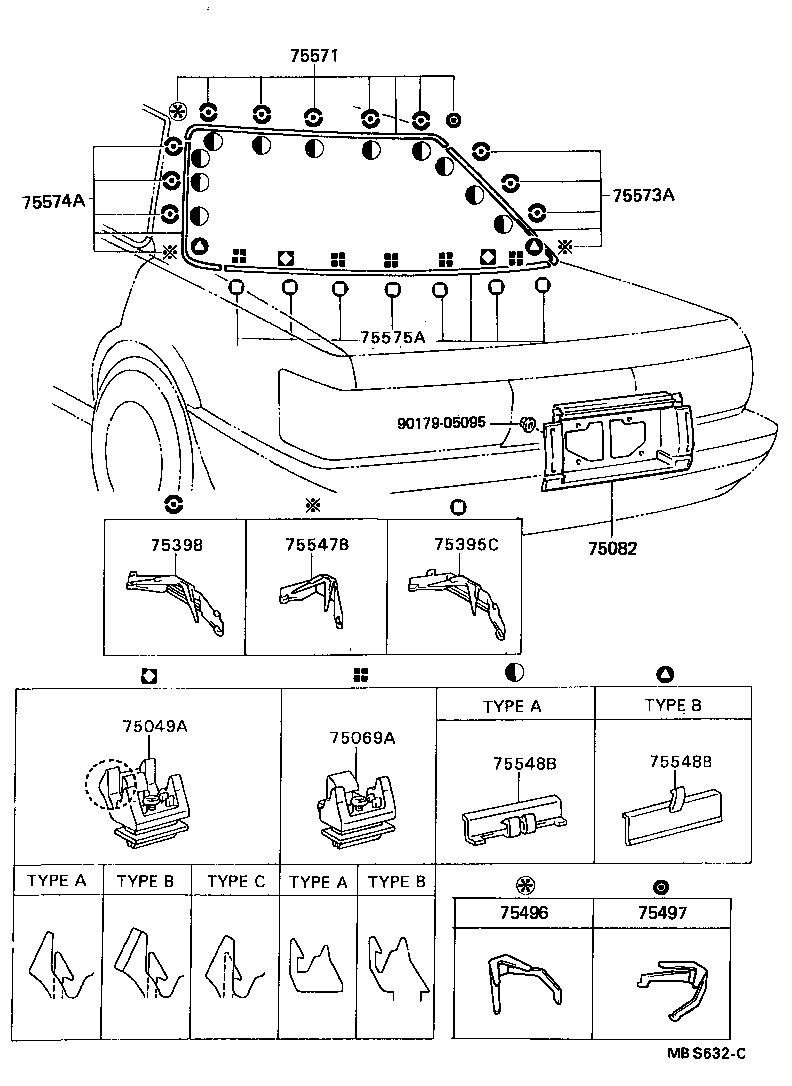

(8808-8908)HT

Click highlighted areas on diagram

diagram 75049A 75069A 75082 75395C 75398 75547B 75548B 75548B 75571 75573A 75574A 75575A 9017905095
Part # Description Qty Price
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-32080

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ C

 2
75049-32081

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ C

 2
75049-32041

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 2
75049-32070

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ B

 2
75069A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.4
75069-32030

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ B

 2
75069-32021

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 5
75069-32021

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 2
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-32140

CV20,SV2#..HT

 1
75395C - CLIP, OUTSIDE MOULDING, NO.1
75395-32080

CV20,SV2#,VZV20..HT

 7
75395-32080

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 7
75398 - CLIP, OUTSIDE MOULDING, NO.5
75398-32010

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 11
75398-32010

CV20,SV2#,VZV20..HT

 11
75398-32010

CV20,SV2#,VZV20..HT

 11
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-32030

CV20,SV2#,VZV20..HT

 2
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-20060

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 11
75548-32040

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ B

 2
75548-20060

CV20,SV2#,VZV20..HT

 11
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-20060

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 11
75548-32040

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ B

 2
75548-20060

CV20,SV2#,VZV20..HT

 11
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75501-32070

CV20,SV2#,VZV20..HT

 1
75571-32040

CV20,SV2#,VZV20..HT

 1
75501-32080

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75571-32070

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-32100

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75501-32050

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75501-32020

CV20,SV2#,VZV20..HT

 1
75573-32080

CV20,SV2#,VZV20..HT

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75502-32050

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75502-32020

CV20,SV2#,VZV20..HT

 1
75574-32070

CV20,SV2#,VZV20..HT

 1
75574-32090

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-32050

CV20,SV2#,VZV20..HT

 1
75575-32070

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
Common parts
90179-05095

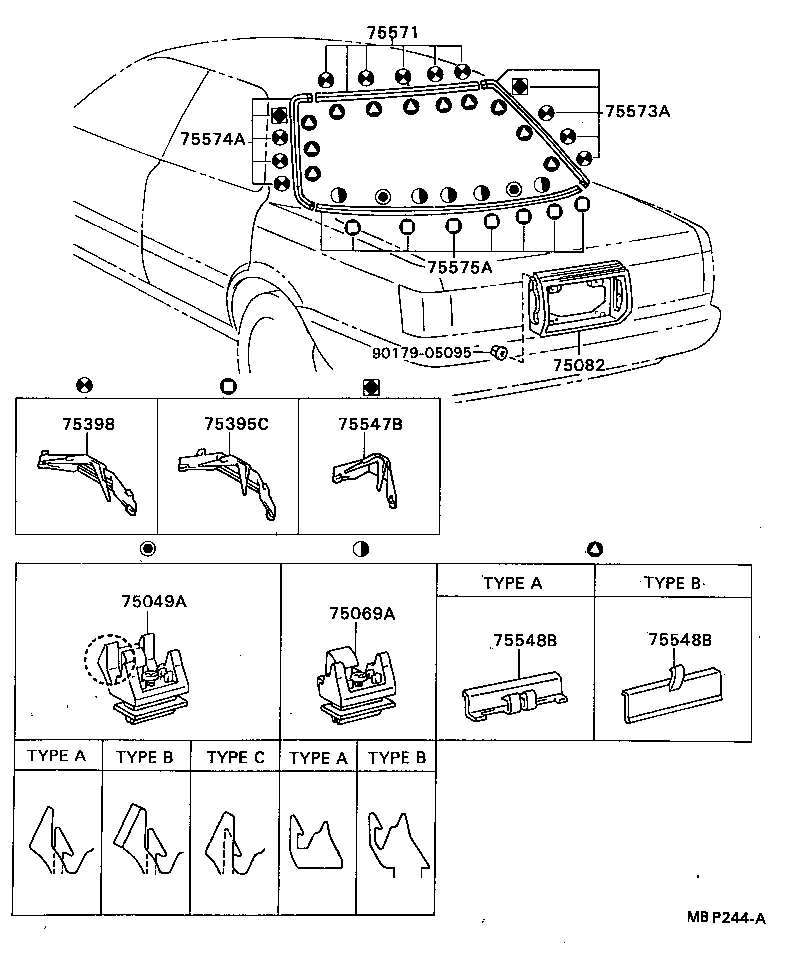

(8908- )HT

Click highlighted areas on diagram

diagram 75049A 75069A 75082 75395C 75398 75496 75497 75547B 75548B 75548B 75571 75573A 75574A 75575A 9017905095
Part # Description Qty Price
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-32080

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ C

 2
75049-32081

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ C

 2
75049-32041

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 2
75049-32070

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ B

 2
75069A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.4
75069-32030

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ B

 2
75069-32021

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 5
75069-32021

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 2
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-32140

CV20,SV2#..HT

 1
75395C - CLIP, OUTSIDE MOULDING, NO.1
75395-32080

CV20,SV2#,VZV20..HT

 7
75395-32080

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 7
75398 - CLIP, OUTSIDE MOULDING, NO.5
75398-32010

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 11
75398-32010

CV20,SV2#,VZV20..HT

 11
75398-32010

CV20,SV2#,VZV20..HT

 11
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-32020

CV20,SV2#,VZV20..HT

 1
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-32020

CV20,SV2#,VZV20..HT

 1
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-32030

CV20,SV2#,VZV20..HT

 2
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-20060

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 11
75548-32040

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ B

 2
75548-20060

CV20,SV2#,VZV20..HT

 11
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-20060

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ A

 11
75548-32040

CV20,SV2#,VZV20..HT

ﾀｲﾌﾟ B

 2
75548-20060

CV20,SV2#,VZV20..HT

 11
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75501-32070

CV20,SV2#,VZV20..HT

 1
75571-32040

CV20,SV2#,VZV20..HT

 1
75501-32080

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75571-32070

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-32100

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75501-32050

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75501-32020

CV20,SV2#,VZV20..HT

 1
75573-32080

CV20,SV2#,VZV20..HT

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75502-32050

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75502-32020

CV20,SV2#,VZV20..HT

 1
75574-32070

CV20,SV2#,VZV20..HT

 1
75574-32090

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-32050

CV20,SV2#,VZV20..HT

 1
75575-32070

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
Common parts
90179-05095
