SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )HT

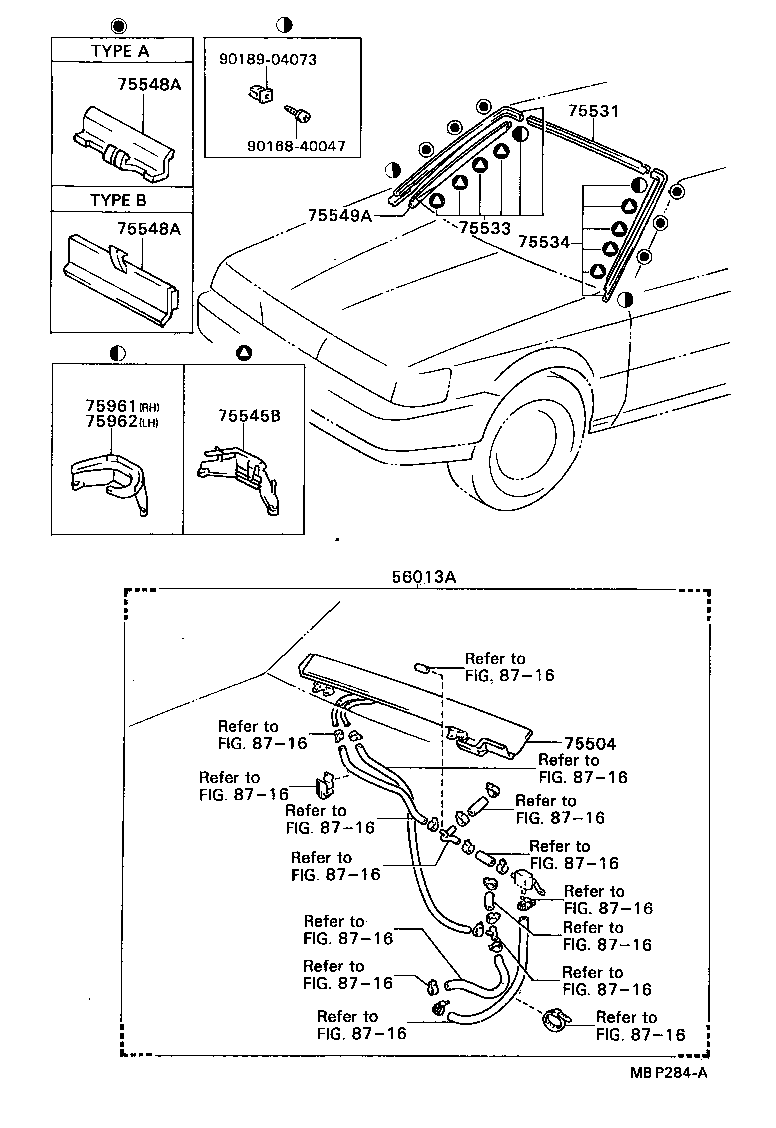

Click highlighted areas on diagram

diagram 56013A 75504 75531 75533 75534 75545B 75548A 75548A 75549A 75961 75962 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 9016840047 9018904073
Part # Description Qty Price
56013A - MOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER
56013-32020

SV21,25

***

 1
75504 - MOULDING SUB-ASSY, WINDSHILD, OUTSIDE LOWER
75504-32010

CV20,SV2#,VZV20

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-32050

CV20,SV2#,VZV20..HT

 1
75531-32110

CV20,SV2#,VZV20..HT

 1
75531-32090

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75531-32090

CV20,SV2#..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-32090

CV20,SV2#,VZV20..HT

 1
75533-32080

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75533-32060

CV20,SV2#..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75533-32040

CV20,SV2#,VZV20..HT

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-32090

CV20,SV2#,VZV20..HT

 1
75534-32080

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75534-32040

CV20,SV2#,VZV20..HT

 1
75534-32060

CV20,SV2#..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-32020

CV20,SV2#,VZV20..HT

 6
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-20060

CV20,SV2#,VZV20..HT

 6
75548-20060

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 6
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-20060

CV20,SV2#,VZV20..HT

 6
75548-20060

CV20,SV2#,VZV20..HT

ｶｺﾞｼﾏ ｼﾖｳ

 6
75549A - MOULDING, WINDSHIELD OUTSIDE SUB
75549-32020

CV20,SV2#,VZV20..HT

ｱﾘ(ｻﾌﾞ ﾓ-ﾙﾃﾞｲﾝｸﾞ)

 1
75961 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
75961-32010

CV20,SV2#,VZV20

 1
75961-32020

CV20,SV2#,VZV20..HT

 1
75961-32020

CV20,SV2#..HT

ｶｺﾞｼﾏ ｼﾖｳ

 1
75962 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
75961-32020

CV20,SV2#,VZV20..HT

 1
75962-32010

CV20,SV2#,VZV20

 1
Common parts
90168-40047
90189-04073
Linked diagrams
8716
