SV21-UTMVF (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
3SGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )VIS

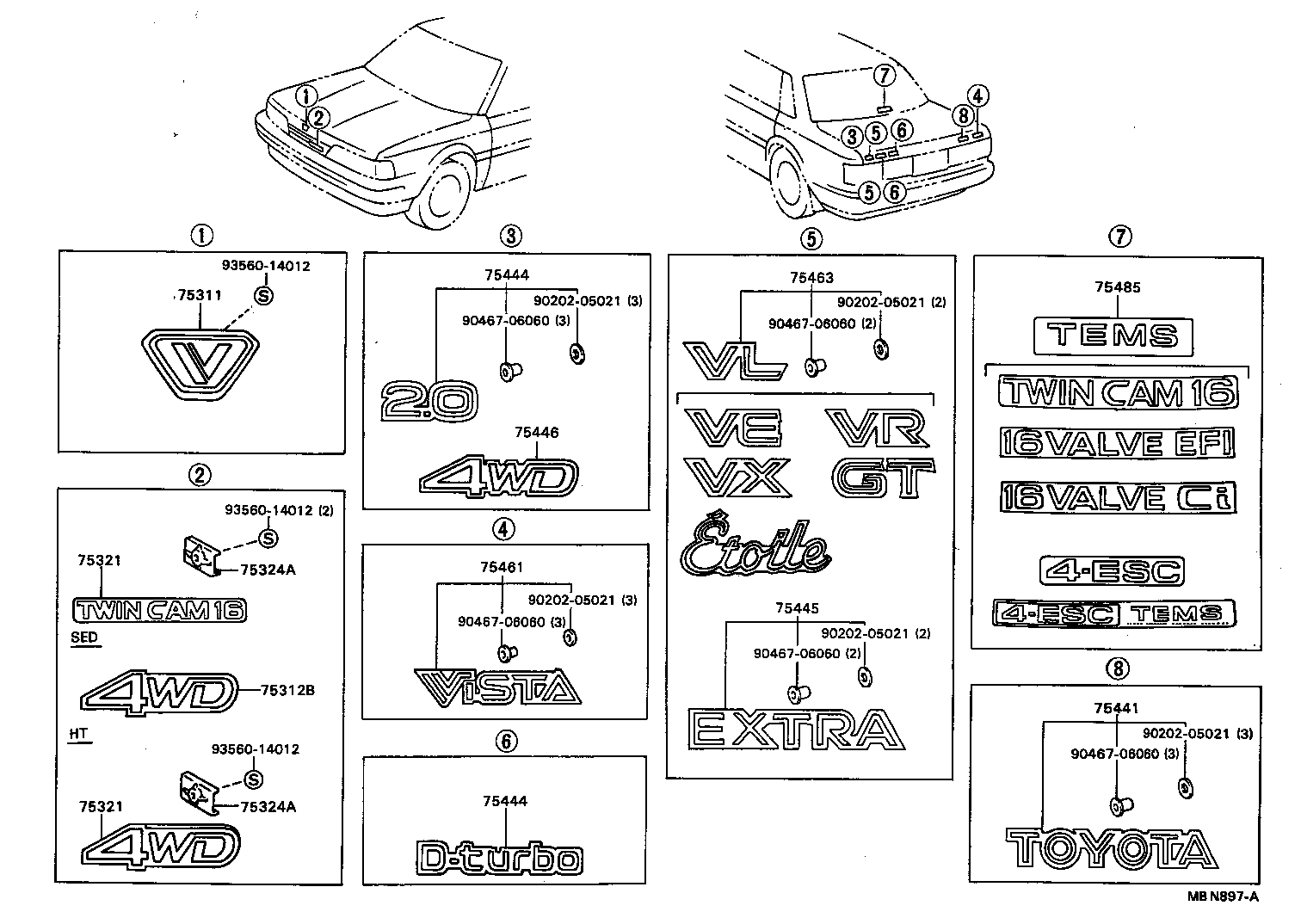

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75301-32050 |
CV20,SV2#..HT |
1 | ||
| 75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME | ||||
| 75321-32030 |
SV21..HT..GT TWIN CAM 16 |
1 | ||
| 75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME | ||||
| 75321-32030 |
SV21..HT..GT TWIN CAM 16 |
1 | ||
| 75324A - RETAINER, RADIATOR GRILLE NAME PLATE | ||||
| 75324-32050 |
SV21..HT..GT |
2 | ||
| 75324A - RETAINER, RADIATOR GRILLE NAME PLATE | ||||
| 75324-32050 |
SV21..HT..GT |
2 | ||
| 75441 - PLATE, REAR NAME, NO.1 | ||||
| 75441-32020 |
CV20,SV2#,VZV20 TOYOTA |
1 | ||
| 75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4 | ||||
| 75444-32060 |
SV21 2.0 |
1 | ||
| 75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4 | ||||
| 75444-32060 |
SV21 2.0 |
1 | ||
| 75461 - PLATE, REAR NAME, NO.2 (MODEL MARK) | ||||
| 75442-32060 |
CV20,SV2#..VIS VISTA |
1 | ||
| 75463 - PLATE, REAR NAME, NO.4 (GRADE MARK) | ||||
| 75443-32230 |
SV21..GT GT |
1 | ||
| 75485 - PLATE, BACK WINDOW NAME | ||||
| 75471-32010 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX 4−ESC |
1 | ||
| 75485-32040 |
SV21..GT TWIN CAM 16 |
1 | ||
| 75485-32030 |
SV21,VZV20..GT,PRO TEMS |
1 | ||
| 75485-32070 |
SV21,VZV20..GT,PRO 4−ESC TEMS |
1 | ||
| Common parts | ||||
| 90202-05021 | ||||
| 90467-06060 | ||||
| 93560-14012 | ||||
