SV21-UTMVF (1988)
Toyota Camry/Vista

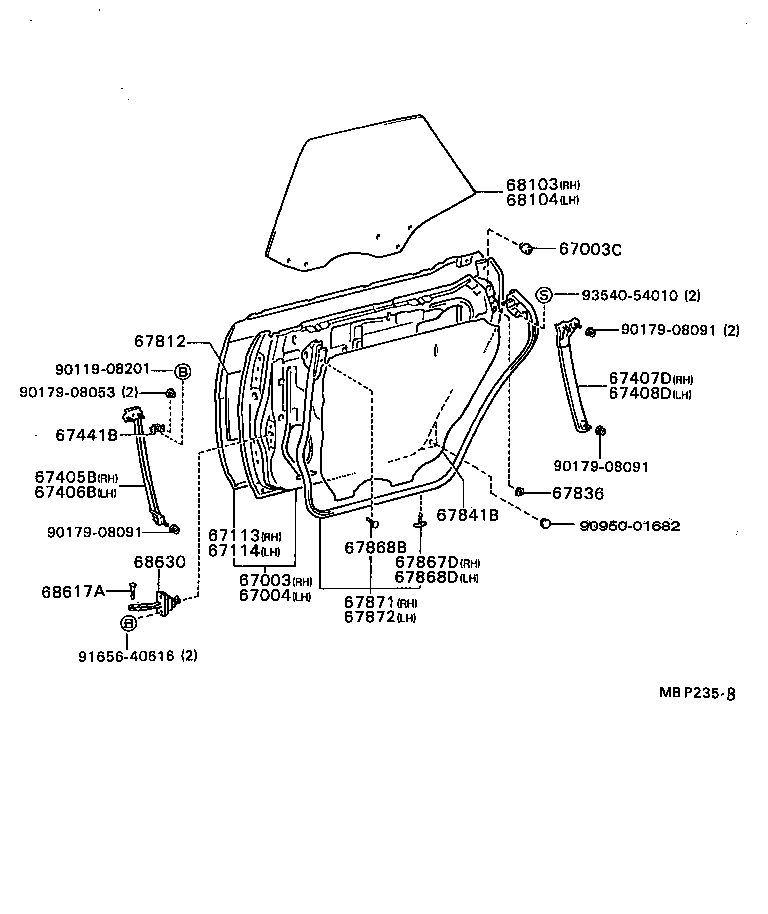

ILLUST NO. 1 OF 2(8808- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-32280 |
CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 67003-32280 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
CV20,SV2#,VZV20..HT |
2 | ||
| 90541-09054 |
CV20,SV2#,VZV20..HT |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-32280 |
CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 67004-32280 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-32060 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-32060 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-32010 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67405-32020 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-32010 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67406-32020 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-32050 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67407-32040 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-32040 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67408-32050 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67441B - PLATE, REAR DOOR FRONT GUIDE, UPPER | ||||
| 67441-32020 |
CV20,SV2#,VZV20..HT |
2 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-12010 |
CV20,SV2#,VZV20 |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-32010 |
CV20,SV2#,VZV20..HT |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-32060 |
CV20,SV2#,VZV20..HT |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-30050 |
CV20,SV2#,VZV20..HT |
16 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67869-30020 |
CV20,SV2#,VZV20..HT |
4 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-30050 |
CV20,SV2#,VZV20..HT |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-32060 |
CV20,SV2#,VZV20..HT |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-32060 |
CV20,SV2#,VZV20..HT |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-32080 |
SV25..HT..VR;CV20,SV21,22,VZV20..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-32080 |
CV20,SV2#,VZV20..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-32070 |
CV20,SV2#,VZV20..HT *TT,厚さ=5.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-32080 |
CV20,SV2#,VZV20..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-32080 |
SV25..HT..VR;CV20,SV21,22,VZV20..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-32070 |
CV20,SV2#,VZV20..HT *TT,厚さ=5.0 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-32010 |
CV20,SV2#,VZV20 |
2 | ||
| 68617-20011 |
CV20,SV2#,VZV20..HT |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-32031 |
CV20,SV2#,VZV20 |
2 | ||
| Common parts | ||||
| 90119-08201 | ||||
| 90179-08053 | ||||
| 90179-08091 | ||||
| 90950-01682 | ||||
| 91656-40616 | ||||
| 93540-54010 | ||||

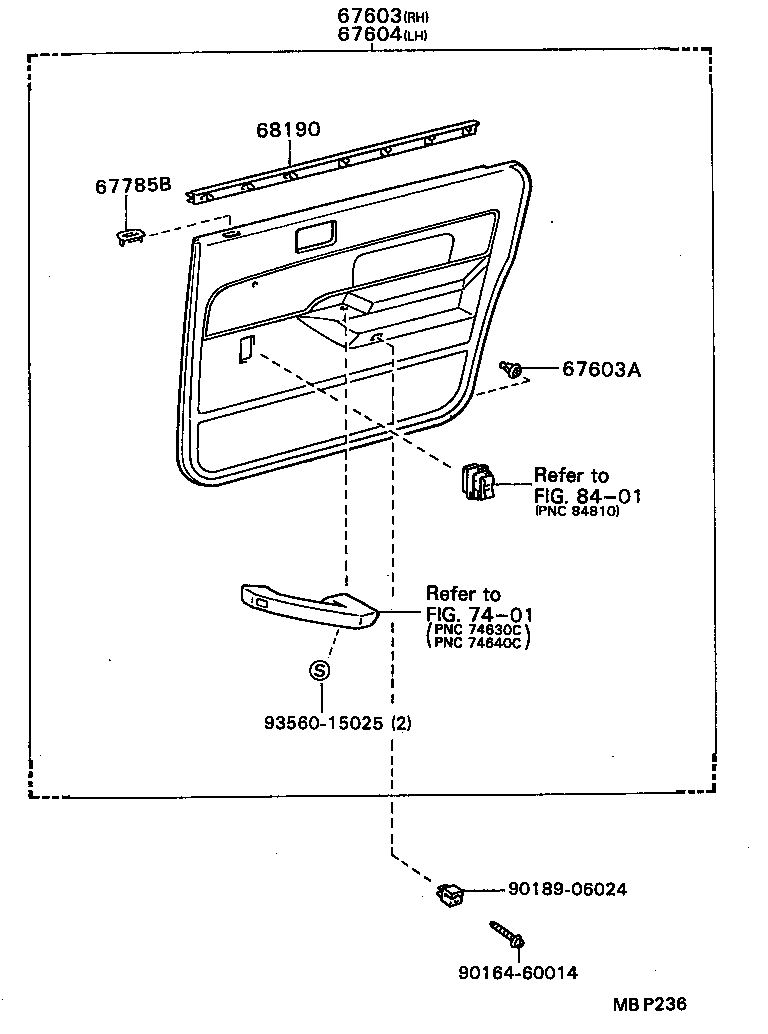

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3285002 |
SV21..HT..GT MAROON,TRIM3# |
1 | ||
| 67630-3285004 |
SV21..HT..GT DARK BLUE,TRIM8# |
1 | ||
| 67630-3285003 |
SV21..HT..GT MEDIUM GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-14040 |
CV20,SV2#,VZV20 |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3285002 |
SV21..HT..GT MAROON,TRIM3# |
1 | ||
| 67640-3285003 |
SV21..HT..GT MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-3285004 |
SV21..HT..GT DARK BLUE,TRIM8# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32040 |
CV20,SV2#,VZV20..HT 右側 |
1 | ||
| 68240-32020 |
CV20,SV2#,VZV20..HT 左側 |
1 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
