Toyota Camry/vista SV21 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-32211	CV20,SV22..HT..VL;SV21,25..HT..(GT,VE,VL,VX) ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ & ﾘﾔｽﾎﾟｲﾗ)	08/1988 - 07/1990	1
64401-32201	CV20,SV22..HT..VL;SV21,25..HT..(GT,VE,VL,VX)	08/1988 - 07/1990	1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09055	CV20,SV2#,VZV20..HT	08/1988 - 06/1989	2
90541-09043	CV20,SV2#,VZV20..HT	06/1989 - 07/1990	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-32060	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-32021	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-32021	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-14070	CV20,SV2#,VZV20	08/1988 - 07/1990	1
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004	CV20,SV2#,VZV20	08/1988 - 07/1990	2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004	CV20,SV2#,VZV20	08/1988 - 07/1990	2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-32130	CV20,SV2#,VZV20..HT	08/1988 - 06/1989	1
64607-32191	CV20,SV2#,VZV20..HT	06/1989 - 07/1990	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-32050	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90507-08008	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64620-20050	CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX	08/1988 - 07/1990	1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-12010	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	1
68950D - STAY ASSY, LUGGAGE DOOR, RH
68950-39165	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	1
68950-39156	CV20,SV2#,VZV20..HT ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	08/1988 - 07/1990	1
68950-39176	CV20,SV2#,VZV20..HT ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	08/1988 - 07/1990	1
68950-39215	CV20,SV2#,VZV20..HT ｶﾝﾚｲﾁｼﾖｳ	06/1989 - 07/1990	1
68960A - STAY ASSY, LUGGAGE DOOR, LH
68950-39165	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	1
68950-39156	CV20,SV2#,VZV20..HT ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	08/1988 - 07/1990	1
68950-39176	CV20,SV2#,VZV20..HT ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	08/1988 - 07/1990	1
68950-39215	CV20,SV2#,VZV20..HT ｶﾝﾚｲﾁｼﾖｳ	06/1989 - 07/1990	1
68961C - BOLT, LUGGAGE DOOR STAY
68961-20040	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	2
68961-20051	CV20,SV2#,VZV20..HT ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	08/1988 - 06/1989	2
68961-20051	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	2
68961C - BOLT, LUGGAGE DOOR STAY
68961-20040	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	2
68961-20051	CV20,SV2#,VZV20..HT ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	08/1988 - 06/1989	2
68961-20051	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	2
68961C - BOLT, LUGGAGE DOOR STAY
68961-20040	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	2
68961-20051	CV20,SV2#,VZV20..HT ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	08/1988 - 06/1989	2
68961-20051	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	2
68961C - BOLT, LUGGAGE DOOR STAY
68961-20040	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	2
68961-20051	CV20,SV2#,VZV20..HT ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	08/1988 - 06/1989	2
68961-20051	CV20,SV2#,VZV20..HT	08/1988 - 07/1990	2
Common parts
90105-06083
90119-08528
90950-01056
90950-01061
90959-01209
91511-60610
91656-60616

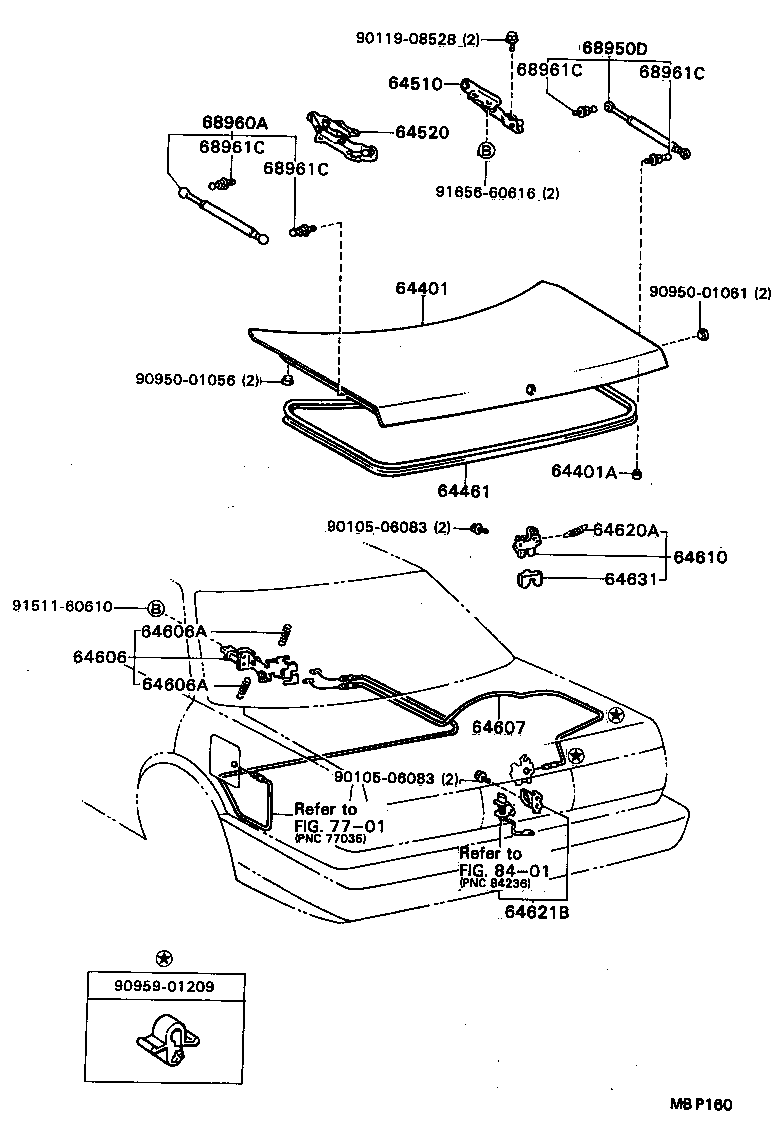

Linked diagrams
7701
8401

SV21-UTMVF (1988)

(8808- )HT
