SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )HT

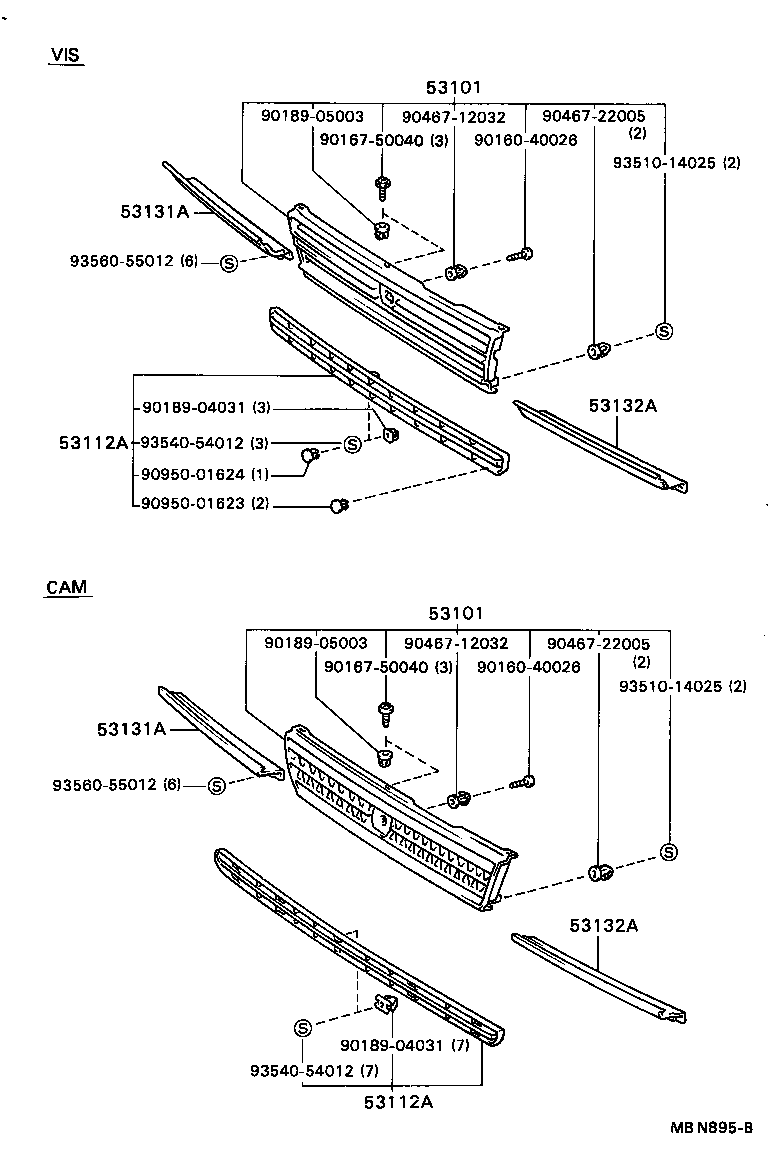

Click highlighted areas on diagram

diagram 53101 53101 53112A 53112A 53131A 53131A 53132A 53132A 9016040026 9016040026 9016750040 9016750040 9018904031 9018904031 9018905003 9018905003 9046712032 9046712032 9046722005 9046722005 9095001624 9095601623 9351014025 9351014025 9354054012 9354054012 9356055012 9356055012
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-32160

CV20,SV2#..HT

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-32160

CV20,SV2#..HT

 1
53112A - GRILLE, RADIATOR, LOWER
53112-32040

CV20,SV2#..HT

 1
53112A - GRILLE, RADIATOR, LOWER
53112-32040

CV20,SV2#..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-32120

CV20,SV2#..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-32120

CV20,SV2#..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-32120

CV20,SV2#..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-32120

CV20,SV2#..HT

 1
Common parts
90160-40026
90167-50040
90189-04031
90189-05003
90467-12032
90467-22005
90950-01624
90956-01623
93510-14025
93540-54012
93560-55012
