SV21-UTMVF (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
3SGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )CV20,SV2#..HT

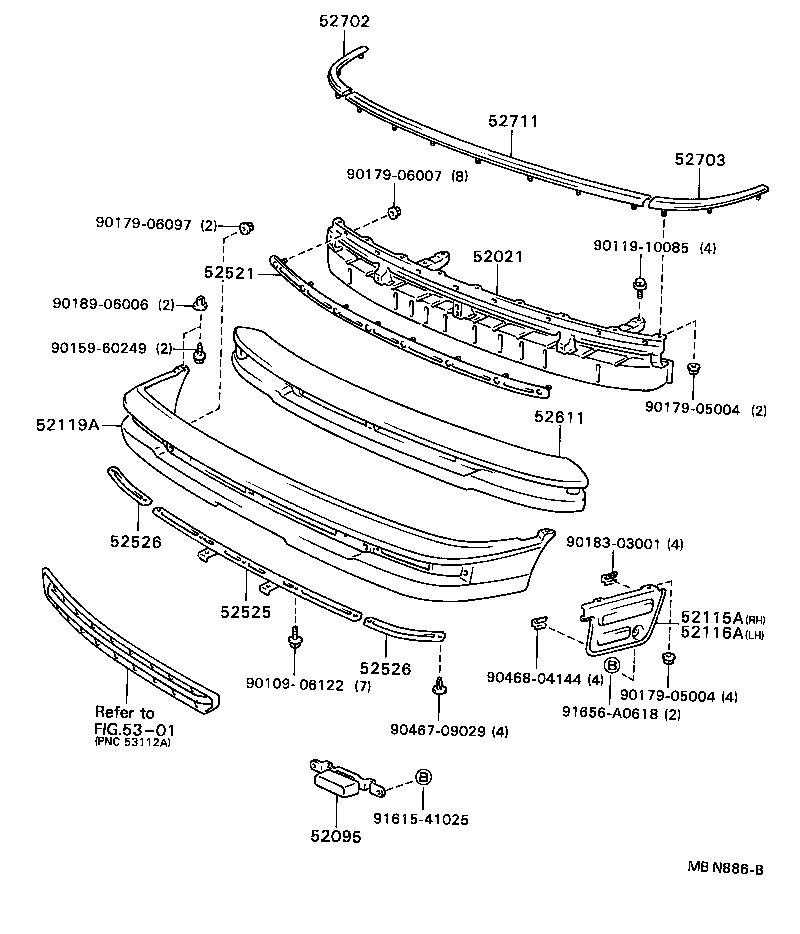

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-32080 |
SV21,22..HT;CV20,SV25..HT..5F |
1 | ||
| 52021-32100 |
CV20,SV2#..HT |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52061-32020 |
CV20,SV2#..HT |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52062-32020 |
CV20,SV2#..HT |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3230002 |
CV20,SV2#..HT RED MICA,3H4 |
1 | ||
| 52119-3230013 |
CV20,SV2#..HT GRAY M,167 |
1 | ||
| 52119-3230005 |
CV20,SV2#..HT LIGHT BEIGE M,4K1 |
1 | ||
| 52119-3230003 |
CV20,SV2#..HT SILVER M,173 |
1 | ||
| 52119-3230008 |
CV20,SV2#..HT SUPER WHITE 2,040 |
1 | ||
| 52119-3230023 |
SV21..HT..(GT,VX) M GRAY M,20K |
1 | ||
| 52119-3230004 |
CV20,SV2#..HT BLACKISH BLUE MICA M,8E4 |
1 | ||
| 52119-3230015 |
SV21..HT..(GT,VX) PEARL FRAGRANCE T0 2,29J |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-32080 |
CV20,SV2#..HT |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-32040 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE |
1 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-32060 |
CV20,SV2#..HT |
2 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-32060 |
CV20,SV2#..HT |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-32110 |
CV20,SV2#..HT |
1 | ||
| 52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH | ||||
| 52702-32070 |
CV20,SV2#..HT ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52702-32050 |
CV20,SV2#..HT |
1 | ||
| 52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH | ||||
| 52703-32070 |
CV20,SV2#..HT ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52703-32050 |
CV20,SV2#..HT |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-32070 |
CV20,SV2#..HT ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 52711-32050 |
CV20,SV2#..HT |
1 | ||
| Common parts | ||||
| 90109-06122 | ||||
| 90119-10085 | ||||
| 90159-60249 | ||||
| 90179-05004 | ||||
| 90179-06007 | ||||
| 90179-06097 | ||||
| 90183-03001 | ||||
| 90189-06006 | ||||
| 90467-09029 | ||||
| 90468-04144 | ||||
| 91615-41025 | ||||
| 91656-A0618 | ||||
| Linked diagrams | ||||
| 5301 | ||||
