SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GT

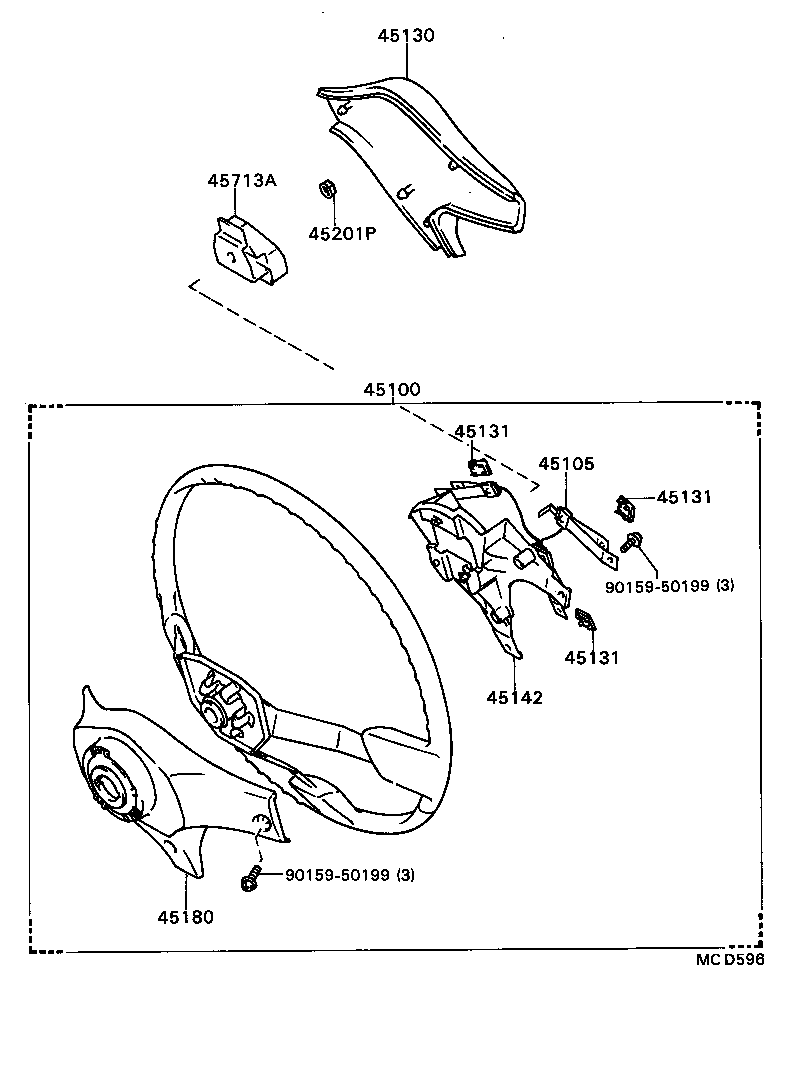

Click highlighted areas on diagram

diagram 45100 45105 45130 45131 45131 45131 45142 45180 45201P 45713A 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3209004

SV21..GT

DARK BLUE,TRIM8#

 1
45100-3209003

SV21..GT

MEDIUM GRAY,TRIM1#

 1
45100-3209002

SV21..GT

MAROON,TRIM3#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-32080

SV21..GT

 1
45130 - BUTTON ASSY, HORN
45130-3213002

SV21..GT

MAROON,TRIM3#

 1
45130-3213004

SV21..GT

DARK BLUE,TRIM8#

 1
45130-3213003

SV21..GT

MEDIUM GRAY,TRIM1#

 1
45131 - BUTTON, HORN, NO.1
45131-32060

SV21..GT

 3
45131 - BUTTON, HORN, NO.1
45131-32060

SV21..GT

 3
45131 - BUTTON, HORN, NO.1
45131-32060

SV21..GT

 3
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-32070

SV21..GT

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-32050

SV21..GT

 1
45180-3205002

SV21..GT

MAROON,TRIM3#

 1
45180-3205004

SV21..GT

DARK BLUE,TRIM8#

 1
45180-3205003

SV21..GT

MEDIUM GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CV20,SV2#,VZV20

 1
Common parts
90159-50199
