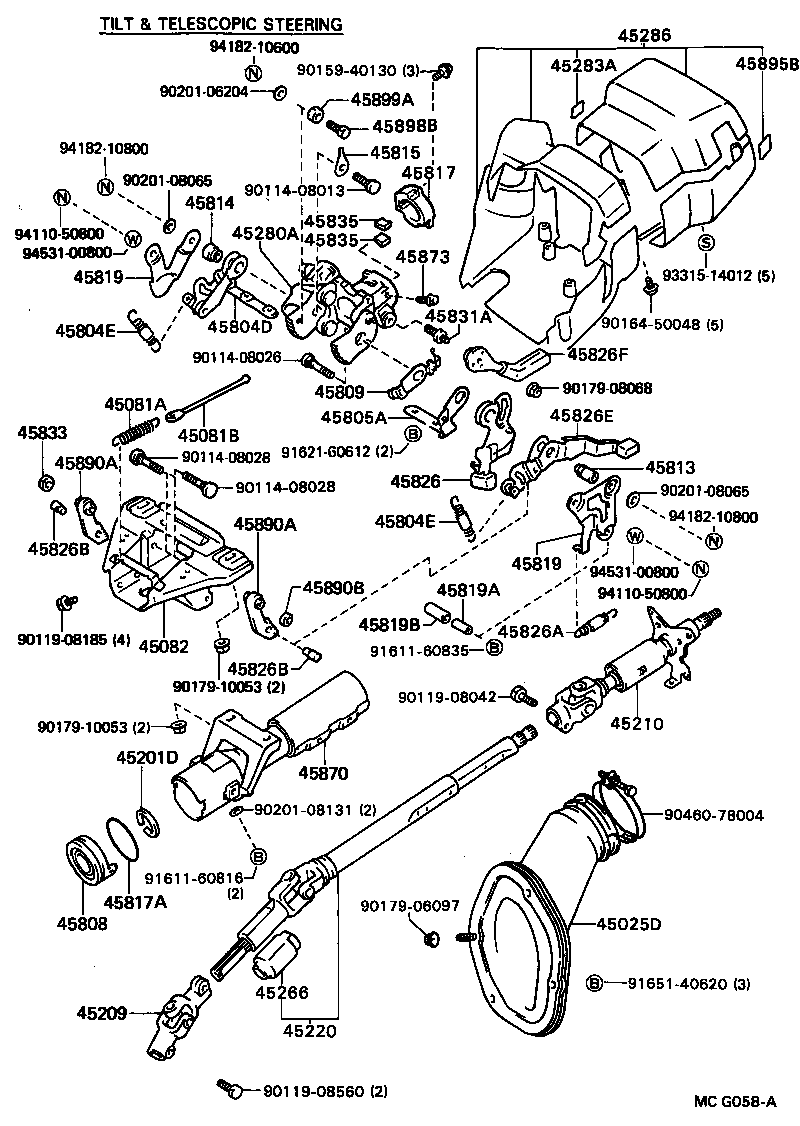

SV21-UTMVF (1988)
Toyota Camry/Vista
(8808- )GT,PRO,VX,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-32050 |
SV21..GT;CV20,SV22 |
1 | ||
| 45025-32090 |
SV21..GT;CV20,SV22 |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-32003 |
SV21,VZV20..GT,PRO,VX,ZX |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02052 |
SV21,VZV20..GT,PRO,VX,ZX 長さ=122 |
2 | ||
| 90945-02086 |
SV21,VZV20..GT,PRO,VX,ZX 長さ=121 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-32030 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-32151 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45210-32150 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-32010 |
SV21..GT |
1 | ||
| 45220-32040 |
SV21..GT ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ｼﾔｿｸ ｶﾝﾉｳ ｼｷ & TEMS) |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-32201 |
SV21,VZV20..5F..(GT,PRO,VX,ZX) |
1 | ||
| 45280-32200 |
SV21,VZV20..5F..(GT,PRO,VX,ZX) |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
CV20,SV2#,VZV20 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3293102 |
SV21,VZV20..GT,PRO,VX,ZX MAROON,TRIM3# |
1 | ||
| 45286-3293104 |
SV21,VZV20..GT,PRO,VX,ZX DARK BLUE,TRIM8# |
1 | ||
| 45286-3293103 |
SV21,VZV20..GT,PRO,VX,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-20040 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45804-20041 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13002 |
SV21,VZV20..GT,PRO,VX,ZX |
2 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13002 |
SV21,VZV20..GT,PRO,VX,ZX |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-20010 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45805-20011 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-32010 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45808-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-20060 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20020 |
SV21,VZV20..GT,PRO,VX,ZX 外径=17.996−18.003 |
1 | ||
| 45813-20050 |
SV21,VZV20..GT,PRO,VX,ZX 外径=18.017−18.024 |
1 | ||
| 45813-20030 |
SV21,VZV20..GT,PRO,VX,ZX 外径=18.003−18.010 |
1 | ||
| 45813-20040 |
SV21,VZV20..GT,PRO,VX,ZX 外径=18.010−18.017 |
1 | ||
| 45813-20060 |
SV21,VZV20..GT,PRO,VX,ZX 外径=17.989−17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20010 |
SV21,VZV20..GT,PRO,VX,ZX 外径=17.996−18.003 |
1 | ||
| 45814-20050 |
SV21,VZV20..GT,PRO,VX,ZX 外径=17.989−17.996 |
1 | ||
| 45814-20040 |
SV21,VZV20..GT,PRO,VX,ZX 外径=18.017−18.024 |
1 | ||
| 45814-20020 |
SV21,VZV20..GT,PRO,VX,ZX 外径=18.003−18.010 |
1 | ||
| 45814-20030 |
SV21,VZV20..GT,PRO,VX,ZX 外径=18.010−18.017 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20010 |
SV21,VZV20..GT,PRO,VX,ZX 厚さ=0.2 |
1 | ||
| 45815-20030 |
SV21,VZV20..GT,PRO,VX,ZX 厚さ=0.8 |
1 | ||
| 45815-20040 |
SV21,VZV20..GT,PRO,VX,ZX 厚さ=1.4 |
1 | ||
| 45815-20020 |
SV21,VZV20..GT,PRO,VX,ZX 厚さ=0.5 |
1 | ||
| 45815-20050 |
SV21,VZV20..GT,PRO,VX,ZX 厚さ=1.8 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-32020 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90301-54002 |
CV20,SV2#,VZV20 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-20030 |
SV21,VZV20..GT,PRO,VX,ZX 左側 |
1 | ||
| 45819-20020 |
SV21,VZV20..GT,PRO,VX,ZX 右側 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-20030 |
SV21,VZV20..GT,PRO,VX,ZX 左側 |
1 | ||
| 45819-20020 |
SV21,VZV20..GT,PRO,VX,ZX 右側 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08046 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-11007 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-20070 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-09005 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
SV21,VZV20..GT,PRO,VX,ZX |
2 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
SV21,VZV20..GT,PRO,VX,ZX |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45804-32010 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45826F - LEVER, STEERING TELESCOPIC | ||||
| 45804-20060 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-20020 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20020 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-20050 |
SV21,VZV20..GT,PRO,VX,ZX BOLT SIDE |
1 | ||
| 45835-20040 |
SV21,VZV20..GT,PRO,VX,ZX TUBE SIDE |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-20050 |
SV21,VZV20..GT,PRO,VX,ZX BOLT SIDE |
1 | ||
| 45835-20040 |
SV21,VZV20..GT,PRO,VX,ZX TUBE SIDE |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-32100 |
SV21..GT ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ｼﾔｿｸ ｶﾝﾉｳ ｼｷ & TEMS) |
1 | ||
| 45870-32090 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-20031 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20080 |
SV21,VZV20..GT,PRO,VX,ZX 右側 |
1 | ||
| 45890-20070 |
SV21,VZV20..GT,PRO,VX,ZX 左側 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20080 |
SV21,VZV20..GT,PRO,VX,ZX 右側 |
1 | ||
| 45890-20070 |
SV21,VZV20..GT,PRO,VX,ZX 左側 |
1 | ||
| 45890B - SPACER(FOR TILT STEERING PAWL) | ||||
| 90560-13008 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-32010 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45898B - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90119-08560 | ||||
| 90159-40130 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-08068 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||
| 91621-60612 | ||||
| 91651-40620 | ||||
| 93315-14012 | ||||
| 94110-50000 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
