SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-8809)CV20..5F ; (8808- )SV21,25..5F

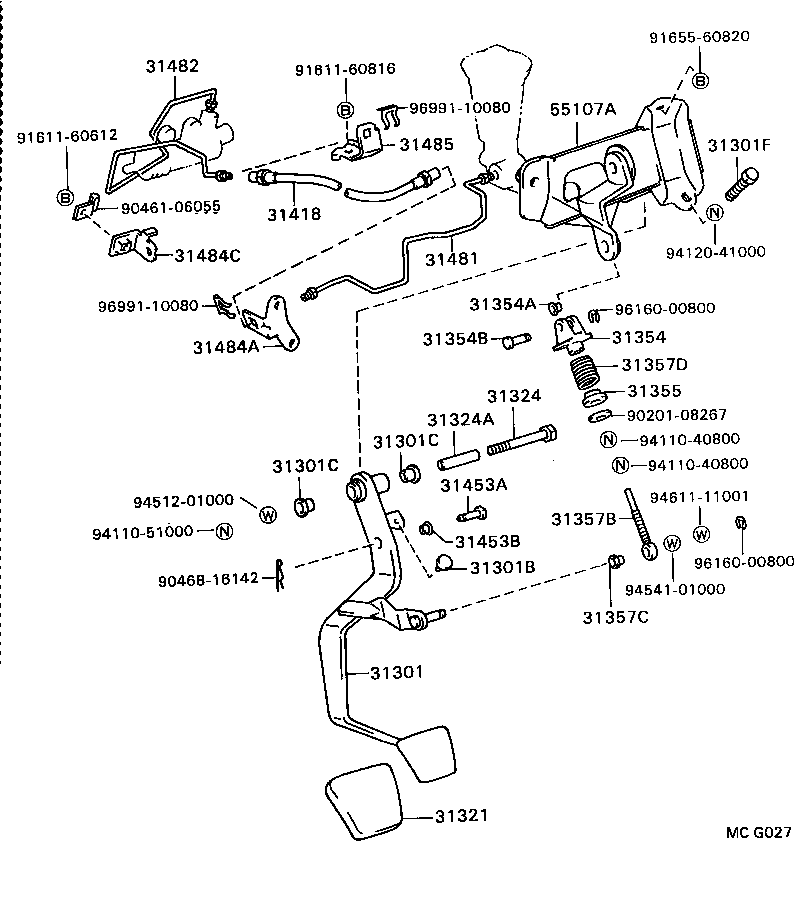

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31321 31324 31324A 31354 31354A 31354B 31355 31357B 31357C 31357D 31418 31453A 31453B 31481 31482 31484A 31484C 31485 55107A 9020108267 9046106055 9046816142 9161160612 9161160816 9165560820 9411040800 9411040800 9411051000 9412041000 9451201000 9454101000 9461111001 9616000800 9616000800 9699110080 9699110080
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-32060

CV20,SV21,25,VZV20..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-07020

CV20,SV21,25,VZV20..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

CV20,SV2#,VZV20..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

CV20,SV2#,VZV20..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

CV20,SV2#,VZV20..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

CV20,SV2#,VZV20..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10273

CV20,SV21,25,VZV20..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CV20,SV2#,VZV20..5F

 1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-12010

CV20,SV21,25,VZV20..5F

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019

CV20,SV21,25,VZV20..5F

 1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127

CV20,SV21,25,VZV20..5F

 1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-20020

CV20,SV21,25,VZV20..5F

 1
31357B - ROD, OVER CENTER ADJUSTING
31357-32020

CV20,SV21,25,VZV20..5F

 1
31357C - BUSH(FOR OVER CENTER ADJUSTING ROD)
90386-10019

CV20,SV21,25,VZV20..5F

 1
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90501-40015

CV20,SV21,25,VZV20..5F

 1
31418 - HOSE, CLUTCH
90931-01050

SV21..5F..GT

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143

CV20,SV2#,VZV20..5F

長さ=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08036

CV20,SV2#,VZV20..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-32110

SV2#..5F

 1
31481-32110

CV20,SV2#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-32070

CV20..5F;SV21..5F..GT

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-32080

CV20,SV2#,VZV20..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

CV20,SV21,22..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-32090

SV21..5F..GT;CV20,SV22..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-32060

CV20,SV21,25,VZV20..5F

 1
Common parts
90201-08267
90461-06055
90468-16142
91611-60612
91611-60816
91655-60820
94110-40800
94110-51000
94120-41000
94512-01000
94541-01000
94611-11001
96160-00800
96991-10080
