SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3SGE

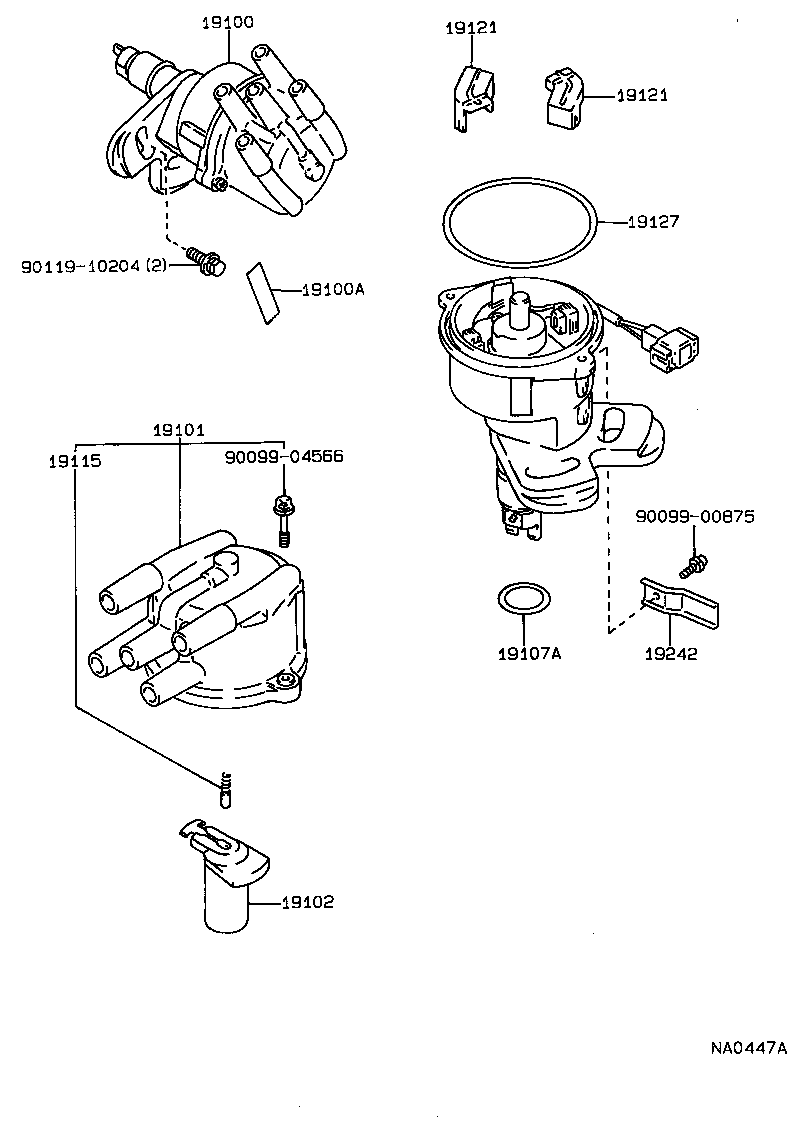

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19121 19121 19127 19242 9009900875 9009904566 9011910204
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-88362

3SGE..SV21

 1
19100A - TAPE, SEALING
90919-24004

3S#,4SFI..SV2#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-88360

3SGE..SV21

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-73021

3SGE..SV21

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

3SGE..SV21

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3S#,4SFI..SV2#

 1
19121 - COVER, DUST PROOF
19121-16040

3SGE..SV21

 2
19121 - COVER, DUST PROOF
19121-16040

3SGE..SV21

 2
19127 - PACKING, DUST PROOF
19127-15021

3S#,4SFI..SV2#

 1
19242 - CLAMP, CORD
19242-88361

3SGE..SV21

 1
Common parts
90099-00875
90099-04566
90119-10204
