SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3S#,4SFI

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8808- )3SGE

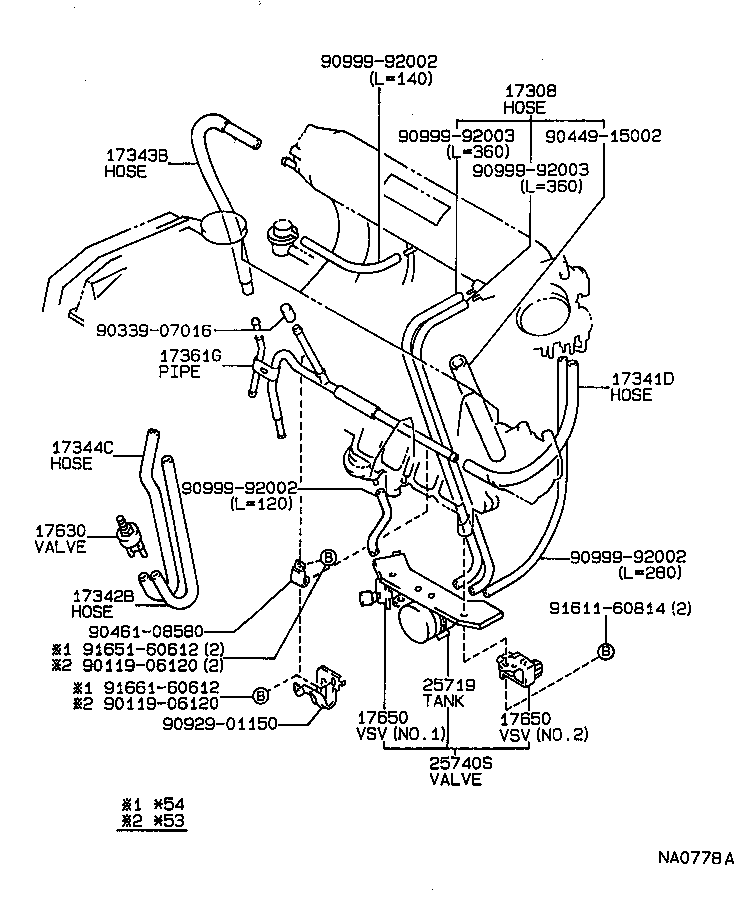

Click highlighted areas on diagram

diagram 17308 17341D 17342B 17343B 17344C 17361G 17630 17650 17650 25719 25740S 9011906120 9011906120 9033907016 9044915002 9046108580 9092901150 9099992002 9099992002 9099992002 9099992003 9099992003 9161160814 9165160612 9166160612
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74010

3SGE..SV21

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-88361

3SGE..SV21

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-88360

3SGE..SV21

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-88361

3SGE..SV21

 1
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-88360

3SGE..SV21

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-88361

3SGE..SV21

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74010

3S#..SV21,25

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-88365

3SGE..SV21

NO.2

 1
89570-88360

3SGE..SV21

NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-88365

3SGE..SV21

NO.2

 1
89570-88360

3SGE..SV21

NO.1

 1
25719 - TANK, VACUUM SURGE
25719-16020

3SGE..SV21

 1
25740S - VALVE ASSY, AIR CONTROL(FOR IDLE SPEED CONTROL)
25740-88360

3SGE..SV21

 1
Common parts
90119-06120
90339-07016
90449-15002
90461-08580
90929-01150
90999-92002
90999-92003
91611-60814
91651-60612
91661-60612
