SV21-UTMVF (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
3SGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3SGE

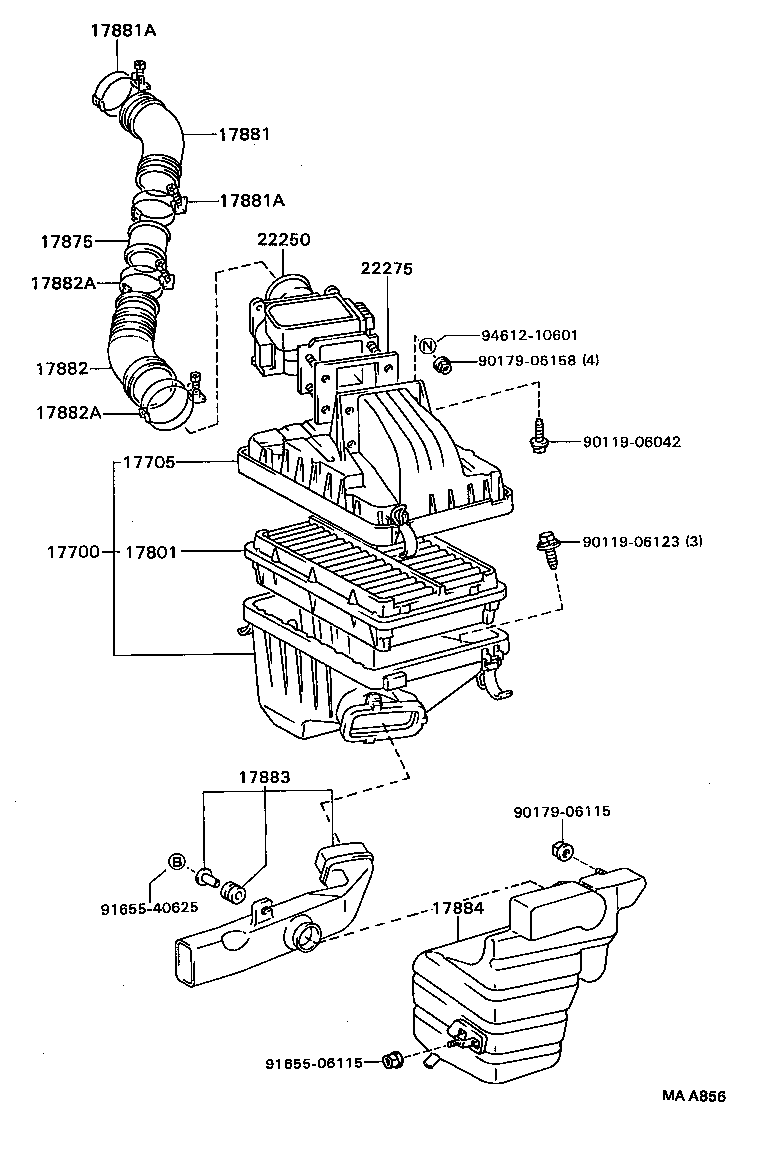

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-74031 |
3SGE..SV21 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-74031 |
3SGE..SV21 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-74010 |
3S#,4SFI..SV2# |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-74020 |
3SGE..SV21 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-74050 |
3SGE..SV21 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
3SGE..SV21 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
3SGE..SV21 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-74031 |
3SGE..SV21 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
3SGE..SV21 PIPE SIDE |
1 | ||
| 96111-10900 |
3SGE..SV21 AIR FLOW SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
3SGE..SV21 PIPE SIDE |
1 | ||
| 96111-10900 |
3SGE..SV21 AIR FLOW SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-63110 |
3S#,4SFI..SV2# |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-63030 |
3S#,4SFI..SV2# |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-74041 |
3SGE..SV21 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
3SGE..SV21 |
1 | ||
| Common parts | ||||
| 90119-06042 | ||||
| 90119-06123 | ||||
| 90179-06115 | ||||
| 90179-06158 | ||||
| 91655-06115 | ||||
| 91655-40625 | ||||
| 94612-10601 | ||||
