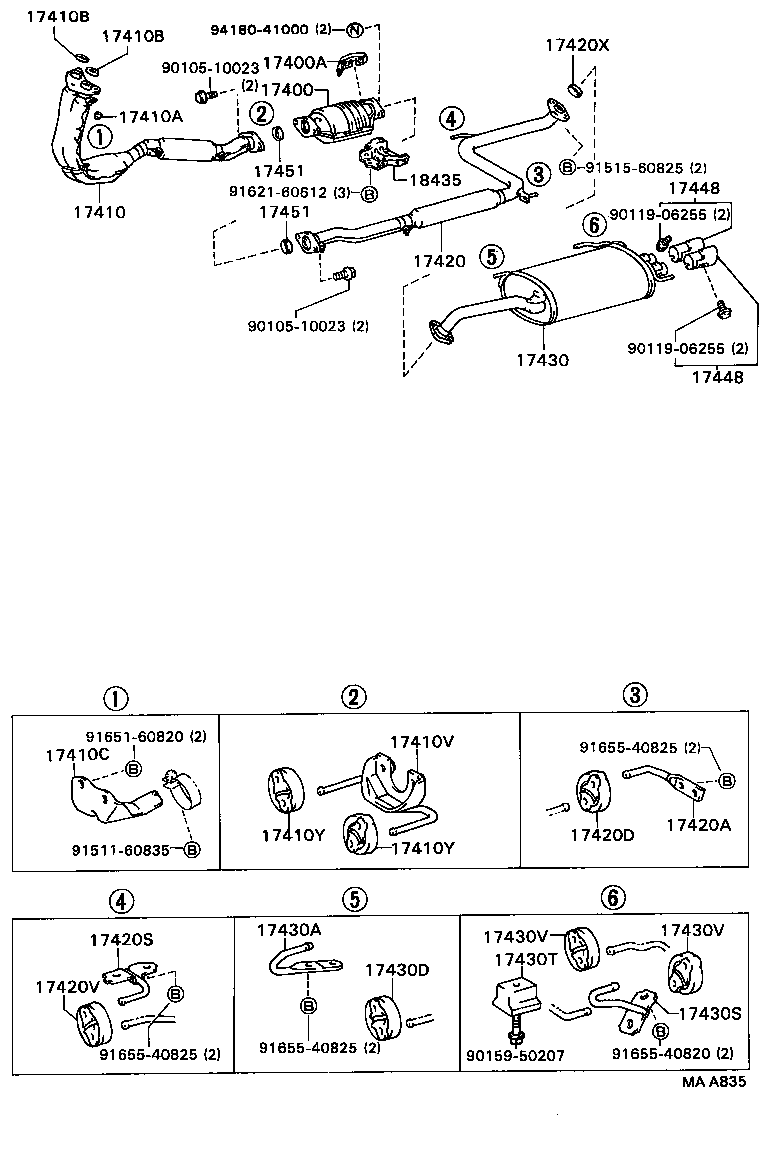

SV21-UTMVF (1988)
Toyota Camry/Vista
(8808- )3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-74110 |
3SGE,1VZFE..SV21,VZV20 |
1 | ||
| 17400A - FLANGE, THERMOSENSER INLET | ||||
| 18491-63010 |
3SGE,1VZFE..SV21,VZV20 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-74140 |
3SGE..SV21 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2CT,3S#,1VZFE..CV20,SV21,25,VZV20 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
3SGE..SV21 |
2 | ||
| 90917-06039 |
3SGE..SV21 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
3SGE..SV21 |
2 | ||
| 90917-06039 |
3SGE..SV21 |
2 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-74050 |
3SGE..SV21 |
1 | ||
| 17571-74050 |
3S#..SV21 |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17503-74050 |
3SGE..SV21 |
1 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-11100 |
2CT,3S#,4SFI..CV20,SV21,22 |
2 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-11100 |
2CT,3S#,4SFI..CV20,SV21,22 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-74151 |
3SGE..SV21 |
1 | ||
| 17420-74150 |
3SGE..SV21 |
1 | ||
| 17420A - BRACKET, EXHAUST PIPE CENTER, FRONT | ||||
| 17572-63050 |
2CT,3S#,4SFI,1VZFE..CV20,SV21,22,VZV20 |
1 | ||
| 17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT | ||||
| 17565-11100 |
2CT,3S#,4SFI..CV20,SV21,22 |
1 | ||
| 17420S - BRACKET, EXHAUST PIPE CENTER, REAR | ||||
| 17507-63030 |
2CT,3S#,4SFI,1VZFE..CV20,SV21,22,VZV20 |
1 | ||
| 17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR | ||||
| 17565-11100 |
2CT,3S#,4SFI..CV20,SV2# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06047 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
1 | ||
| 90917-06012 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-74150 |
3SGE..SV21 |
1 | ||
| 17430-74151 |
3SGE..SV21 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17563-63080 |
2CT,3S#,4SFI,1VZFE..CV20,SV21,22,VZV20 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-11100 |
2CT..CV20;3SGE..SV21..5F |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17509-63060 |
2CT,3S#,4SFI,1VZFE..CV20,SV21,22,VZV20 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17591-36011 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-63120 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-63120 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-79025 |
3SGE,1VZFE..SV21,VZV20 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-79025 |
3SGE,1VZFE..SV21,VZV20 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06043 |
3SGE,1VZFE..SV21,VZV20 ﾌﾛﾝﾄ |
1 | ||
| 90917-06054 |
3SGE,1VZFE..SV21,VZV20 ﾘﾔ |
1 | ||
| 90917-06032 |
3SGE,1VZFE..SV21,VZV20 ﾘﾔ |
1 | ||
| 90917-06031 |
3SGE,1VZFE..SV21,VZV20 ﾌﾛﾝﾄ |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06043 |
3SGE,1VZFE..SV21,VZV20 ﾌﾛﾝﾄ |
1 | ||
| 90917-06054 |
3SGE,1VZFE..SV21,VZV20 ﾘﾔ |
1 | ||
| 90917-06032 |
3SGE,1VZFE..SV21,VZV20 ﾘﾔ |
1 | ||
| 90917-06031 |
3SGE,1VZFE..SV21,VZV20 ﾌﾛﾝﾄ |
1 | ||
| 18435 - PROTECTOR, CATALYTIC CONVERTER | ||||
| 18436-74020 |
3SGE,1VZFE..SV21,VZV20 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90119-06255 | ||||
| 90159-50207 | ||||
| 91511-60835 | ||||
| 91515-60825 | ||||
| 91621-60612 | ||||
| 91651-60820 | ||||
| 91655-40820 | ||||
| 91655-40825 | ||||
| 94180-41000 | ||||
