SV21-UTMVF (1988)
Toyota Camry/Vista
(8808- )3SGE

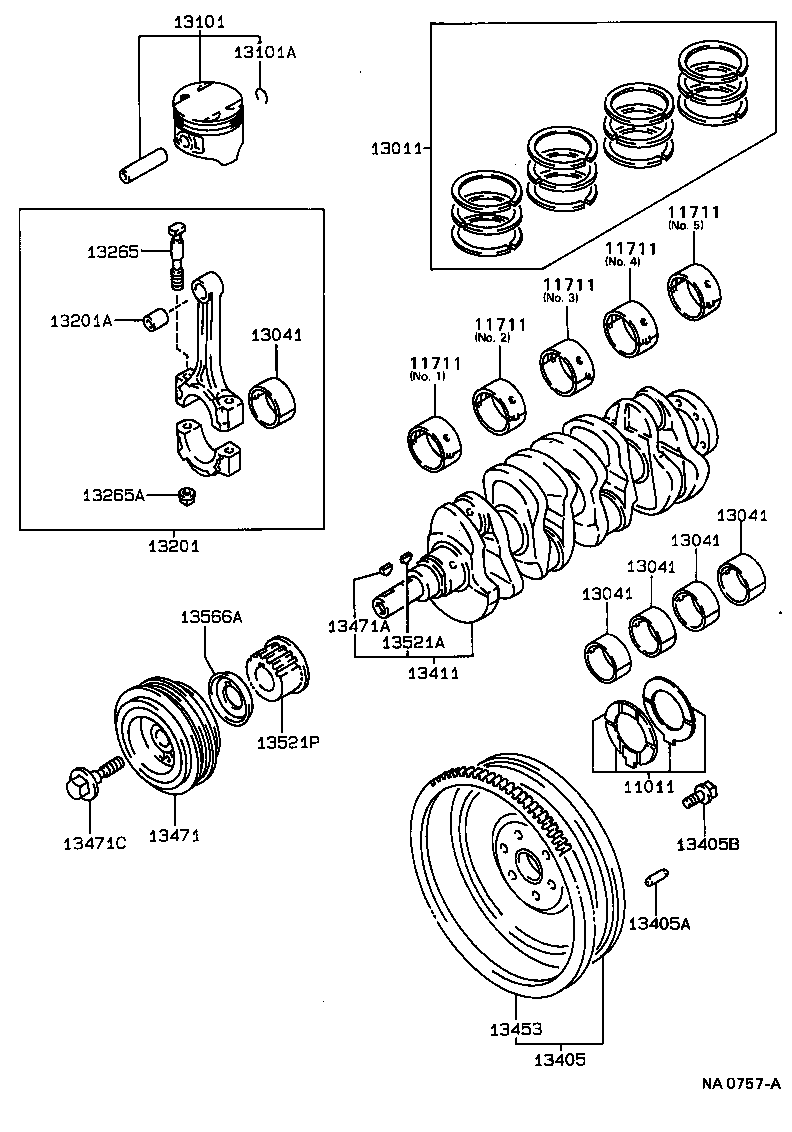

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
3S#,4SFI..SV2# STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8836005 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836003 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836002 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836001 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836004 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-6302002 |
3SGE..SV21 MARK 2,*53,NO.3 |
1 | ||
| 11071-6302003 |
3SGE..SV21 MARK 3,*53,NO.3 |
1 | ||
| 11071-6302001 |
3SGE..SV21 MARK 1,*53,NO.3 |
1 | ||
| 11071-8836003 |
3SGE..SV21 MARK 3,*54,NO.3,MARK 3 |
1 | ||
| 11071-6302004 |
3SGE..SV21 MARK 4,*53,NO.3 |
1 | ||
| 11071-8836002 |
3SGE..SV21 MARK 2,*54,NO.3,MARK 2 |
1 | ||
| 11071-8836005 |
3SGE..SV21 MARK 5,*54,NO.3,MARK 5 |
1 | ||
| 11701-6302101 |
3SGE..SV21 MARK 1,*53,NO.1,2,4,5,MARK 1 |
4 | ||
| 11071-8836004 |
3SGE..SV21 MARK 4,*54,NO.3,MARK 4 |
1 | ||
| 11071-6302005 |
3SGE..SV21 MARK 5,*53,NO.3 |
1 | ||
| 11701-6302102 |
3SGE..SV21 MARK 2,*53,NO.1,2,4,5,MARK 2 |
4 | ||
| 11701-8834201 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-6302103 |
3SGE..SV21 MARK 3,*53,NO.1,2,4,5,MARK 3 |
4 | ||
| 11701-6302104 |
3SGE..SV21 MARK 4,*53,NO.1,2,4,5,MARK 4 |
4 | ||
| 11701-8834204 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-8836001 |
3SGE..SV21 MARK 1,*54,NO.3,MARK 1 |
1 | ||
| 11701-6302105 |
3SGE..SV21 MARK 5,*53,NO.1,2,4,5,MARK 5 |
4 | ||
| 11701-8834202 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834205 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834203 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8836005 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836003 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836002 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836001 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836004 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-6302002 |
3SGE..SV21 MARK 2,*53,NO.3 |
1 | ||
| 11071-6302003 |
3SGE..SV21 MARK 3,*53,NO.3 |
1 | ||
| 11071-6302001 |
3SGE..SV21 MARK 1,*53,NO.3 |
1 | ||
| 11071-8836003 |
3SGE..SV21 MARK 3,*54,NO.3,MARK 3 |
1 | ||
| 11071-6302004 |
3SGE..SV21 MARK 4,*53,NO.3 |
1 | ||
| 11071-8836002 |
3SGE..SV21 MARK 2,*54,NO.3,MARK 2 |
1 | ||
| 11071-8836005 |
3SGE..SV21 MARK 5,*54,NO.3,MARK 5 |
1 | ||
| 11701-6302101 |
3SGE..SV21 MARK 1,*53,NO.1,2,4,5,MARK 1 |
4 | ||
| 11071-8836004 |
3SGE..SV21 MARK 4,*54,NO.3,MARK 4 |
1 | ||
| 11071-6302005 |
3SGE..SV21 MARK 5,*53,NO.3 |
1 | ||
| 11701-6302102 |
3SGE..SV21 MARK 2,*53,NO.1,2,4,5,MARK 2 |
4 | ||
| 11701-8834201 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-6302103 |
3SGE..SV21 MARK 3,*53,NO.1,2,4,5,MARK 3 |
4 | ||
| 11701-6302104 |
3SGE..SV21 MARK 4,*53,NO.1,2,4,5,MARK 4 |
4 | ||
| 11701-8834204 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-8836001 |
3SGE..SV21 MARK 1,*54,NO.3,MARK 1 |
1 | ||
| 11701-6302105 |
3SGE..SV21 MARK 5,*53,NO.1,2,4,5,MARK 5 |
4 | ||
| 11701-8834202 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834205 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834203 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8836005 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836003 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836002 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836001 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836004 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-6302002 |
3SGE..SV21 MARK 2,*53,NO.3 |
1 | ||
| 11071-6302003 |
3SGE..SV21 MARK 3,*53,NO.3 |
1 | ||
| 11071-6302001 |
3SGE..SV21 MARK 1,*53,NO.3 |
1 | ||
| 11071-8836003 |
3SGE..SV21 MARK 3,*54,NO.3,MARK 3 |
1 | ||
| 11071-6302004 |
3SGE..SV21 MARK 4,*53,NO.3 |
1 | ||
| 11071-8836002 |
3SGE..SV21 MARK 2,*54,NO.3,MARK 2 |
1 | ||
| 11071-8836005 |
3SGE..SV21 MARK 5,*54,NO.3,MARK 5 |
1 | ||
| 11701-6302101 |
3SGE..SV21 MARK 1,*53,NO.1,2,4,5,MARK 1 |
4 | ||
| 11071-8836004 |
3SGE..SV21 MARK 4,*54,NO.3,MARK 4 |
1 | ||
| 11071-6302005 |
3SGE..SV21 MARK 5,*53,NO.3 |
1 | ||
| 11701-6302102 |
3SGE..SV21 MARK 2,*53,NO.1,2,4,5,MARK 2 |
4 | ||
| 11701-8834201 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-6302103 |
3SGE..SV21 MARK 3,*53,NO.1,2,4,5,MARK 3 |
4 | ||
| 11701-6302104 |
3SGE..SV21 MARK 4,*53,NO.1,2,4,5,MARK 4 |
4 | ||
| 11701-8834204 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-8836001 |
3SGE..SV21 MARK 1,*54,NO.3,MARK 1 |
1 | ||
| 11701-6302105 |
3SGE..SV21 MARK 5,*53,NO.1,2,4,5,MARK 5 |
4 | ||
| 11701-8834202 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834205 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834203 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8836005 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836003 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836002 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836001 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836004 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-6302002 |
3SGE..SV21 MARK 2,*53,NO.3 |
1 | ||
| 11071-6302003 |
3SGE..SV21 MARK 3,*53,NO.3 |
1 | ||
| 11071-6302001 |
3SGE..SV21 MARK 1,*53,NO.3 |
1 | ||
| 11071-8836003 |
3SGE..SV21 MARK 3,*54,NO.3,MARK 3 |
1 | ||
| 11071-6302004 |
3SGE..SV21 MARK 4,*53,NO.3 |
1 | ||
| 11071-8836002 |
3SGE..SV21 MARK 2,*54,NO.3,MARK 2 |
1 | ||
| 11071-8836005 |
3SGE..SV21 MARK 5,*54,NO.3,MARK 5 |
1 | ||
| 11701-6302101 |
3SGE..SV21 MARK 1,*53,NO.1,2,4,5,MARK 1 |
4 | ||
| 11071-8836004 |
3SGE..SV21 MARK 4,*54,NO.3,MARK 4 |
1 | ||
| 11071-6302005 |
3SGE..SV21 MARK 5,*53,NO.3 |
1 | ||
| 11701-6302102 |
3SGE..SV21 MARK 2,*53,NO.1,2,4,5,MARK 2 |
4 | ||
| 11701-8834201 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-6302103 |
3SGE..SV21 MARK 3,*53,NO.1,2,4,5,MARK 3 |
4 | ||
| 11701-6302104 |
3SGE..SV21 MARK 4,*53,NO.1,2,4,5,MARK 4 |
4 | ||
| 11701-8834204 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-8836001 |
3SGE..SV21 MARK 1,*54,NO.3,MARK 1 |
1 | ||
| 11701-6302105 |
3SGE..SV21 MARK 5,*53,NO.1,2,4,5,MARK 5 |
4 | ||
| 11701-8834202 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834205 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834203 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8836005 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836003 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836002 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836001 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-8836004 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-6302002 |
3SGE..SV21 MARK 2,*53,NO.3 |
1 | ||
| 11071-6302003 |
3SGE..SV21 MARK 3,*53,NO.3 |
1 | ||
| 11071-6302001 |
3SGE..SV21 MARK 1,*53,NO.3 |
1 | ||
| 11071-8836003 |
3SGE..SV21 MARK 3,*54,NO.3,MARK 3 |
1 | ||
| 11071-6302004 |
3SGE..SV21 MARK 4,*53,NO.3 |
1 | ||
| 11071-8836002 |
3SGE..SV21 MARK 2,*54,NO.3,MARK 2 |
1 | ||
| 11071-8836005 |
3SGE..SV21 MARK 5,*54,NO.3,MARK 5 |
1 | ||
| 11701-6302101 |
3SGE..SV21 MARK 1,*53,NO.1,2,4,5,MARK 1 |
4 | ||
| 11071-8836004 |
3SGE..SV21 MARK 4,*54,NO.3,MARK 4 |
1 | ||
| 11071-6302005 |
3SGE..SV21 MARK 5,*53,NO.3 |
1 | ||
| 11701-6302102 |
3SGE..SV21 MARK 2,*53,NO.1,2,4,5,MARK 2 |
4 | ||
| 11701-8834201 |
3SGE..SV21 MARK 1,*54,NO.1,2,4,5 |
4 | ||
| 11701-6302103 |
3SGE..SV21 MARK 3,*53,NO.1,2,4,5,MARK 3 |
4 | ||
| 11701-6302104 |
3SGE..SV21 MARK 4,*53,NO.1,2,4,5,MARK 4 |
4 | ||
| 11701-8834204 |
3SGE..SV21 MARK 4,*54,NO.1,2,4,5 |
4 | ||
| 11071-8836001 |
3SGE..SV21 MARK 1,*54,NO.3,MARK 1 |
1 | ||
| 11701-6302105 |
3SGE..SV21 MARK 5,*53,NO.1,2,4,5,MARK 5 |
4 | ||
| 11701-8834202 |
3SGE..SV21 MARK 2,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834205 |
3SGE..SV21 MARK 5,*54,NO.1,2,4,5 |
4 | ||
| 11701-8834203 |
3SGE..SV21 MARK 3,*54,NO.1,2,4,5 |
4 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-88363 |
3SGE..SV21 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8836001 |
3SGE..SV21 MARK 1 |
4 | ||
| 13041-8836003 |
3SGE..SV21 MARK 3 |
4 | ||
| 13041-8836002 |
3SGE..SV21 MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8836001 |
3SGE..SV21 MARK 1 |
4 | ||
| 13041-8836003 |
3SGE..SV21 MARK 3 |
4 | ||
| 13041-8836002 |
3SGE..SV21 MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8836001 |
3SGE..SV21 MARK 1 |
4 | ||
| 13041-8836003 |
3SGE..SV21 MARK 3 |
4 | ||
| 13041-8836002 |
3SGE..SV21 MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8836001 |
3SGE..SV21 MARK 1 |
4 | ||
| 13041-8836003 |
3SGE..SV21 MARK 3 |
4 | ||
| 13041-8836002 |
3SGE..SV21 MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8836001 |
3SGE..SV21 MARK 1 |
4 | ||
| 13041-8836003 |
3SGE..SV21 MARK 3 |
4 | ||
| 13041-8836002 |
3SGE..SV21 MARK 2 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-7403202 |
3SGE..SV21 STD,STD,MARK2,*53,MARK2 |
4 | ||
| 13101-7403201 |
3SGE..SV21 STD,STD,MARK1,*53,MARK1 |
4 | ||
| 13101-8836101 |
3SGE..SV21 STD,STD,MARK1,*54,MARK1 |
4 | ||
| 13101-7403203 |
3SGE..SV21 STD,STD,MARK3,*53,MARK3 |
4 | ||
| 13101-8836103 |
3SGE..SV21 STD,STD,MARK3,*54,MARK3 |
4 | ||
| 13101-8836102 |
3SGE..SV21 STD,STD,MARK2,*54,MARK2 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25004 |
3SGE..SV21 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-79096 |
3SGE..SV21 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73112 |
3SGE..SV21 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-74010 |
3SGE..SV21 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-10107 |
3SGE..SV21 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-74110 |
3SGE..SV21..5F |
1 | ||
| 13405-74011 |
3SGE..SV21..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
3S#,4SFI..SV2#..5F 長さ=23,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10071 |
3SGE..SV21..5F |
8 | ||
| 90105-10071 |
3S#,4SFI..SV2#..5F |
8 | ||
| 90105-12187 |
3SGE..SV21..5F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-74903 |
3SGE..SV21 |
1 | ||
| 13411-74907 |
3SGE..SV21 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
3SGE..SV21..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-88360 |
3SGE..SV21 *54 |
1 | ||
| 13407-88380 |
3SGE..SV21 *53 |
1 | ||
| 13407-74020 |
3SGE..SV21 *53 |
1 | ||
| 13407-88380 |
3SGE..SV21 *54 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20519 |
3S#,4SFI..SV2# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14057 |
3S#..SV21,25 |
1 | ||
| 90105-14057 |
3SGE..SV21 |
1 | ||
| 90105-14011 |
3SGE..SV21 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20519 |
3S#,4SFI..SV2# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-88360 |
3SGE..SV21 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-88360 |
3SGE..SV21 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
