SV21-UTMVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3SGE..5F

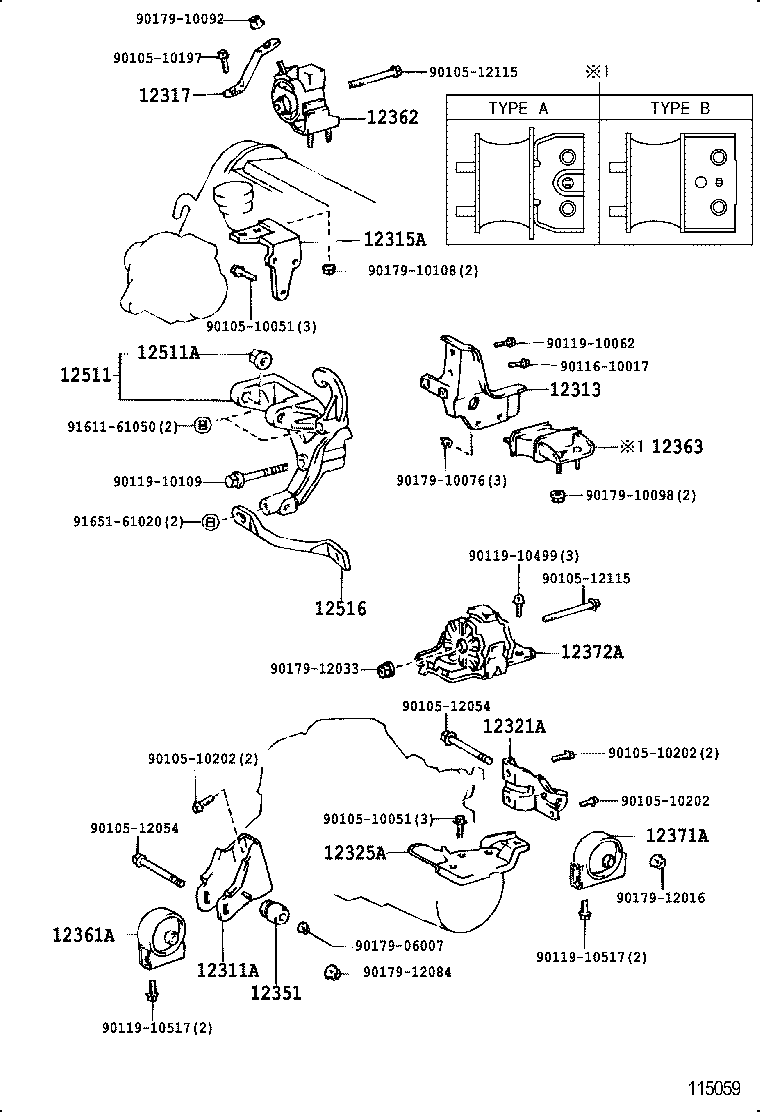

Click highlighted areas on diagram

diagram 12311A 12313 12315A 12317 12321A 12325A 12351 12361A 12362 12363 12371A 12372A 12511 12511A 12516 9010510051 9010510051 9010510197 9010510202 9010510202 9010510202 9010512054 9010512054 9010512115 9010512115 9011610017 9011910062 9011910109 9011910499 9011910517 9011910517 9017906007 9017910076 9017910092 9017910098 9017910108 9017912016 9017912033 9017912084 9161161050 9165161020
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74030

3S#,4SFI..SV21,22

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-74020

3SGE,4SFI..SV21,22

 1
12313-74020

3S#,4SFI..SV21,22

 1
12313-74021

3SGE,4SFI..SV21,22

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74030

3S#..SV21,25..GT,VL,VR,XT,ZE

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-74020

3SGE..SV21

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64110

3S#,4SFI..SV21,22..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74031

3S#,4SFI..SV21,22..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-64020

3S#,4SFI..SV21,22..5F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74020

3SGE..SV21..5F

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74030

3SGE..SV21

 1
12363 - INSULATOR, ENGINE MOUNTING, CENTER
12363-74010

3S#,4SFI..SV21,22

ｲﾗｽﾄ ｻﾝｼﾖｳ : TYPE A,東海ｺﾞﾑ

 1
12363-74030

3S#,4SFI..SV21,22

ｲﾗｽﾄ ｻﾝｼﾖｳ : TYPE B,TOGO GOMU

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74030

3SGE..SV21..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74040

3SGE..SV21..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74011

3SGE..SV21

 1
12511A - BUSH, ALTERNATOR BRACKET
27351-70010

3SGE..SV21

 1
12516 - BRACKET, ALTERNATOR, NO.2
12512-88362

3SGE..SV21

 1
Common parts
90105-10051
90105-10197
90105-10202
90105-12054
90105-12115
90116-10017
90119-10062
90119-10109
90119-10499
90119-10517
90179-06007
90179-10076
90179-10092
90179-10098
90179-10108
90179-12016
90179-12033
90179-12084
91611-61050
91651-61020
