SV21-UTMVF (1988)
Toyota Camry/Vista
(8808- )3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

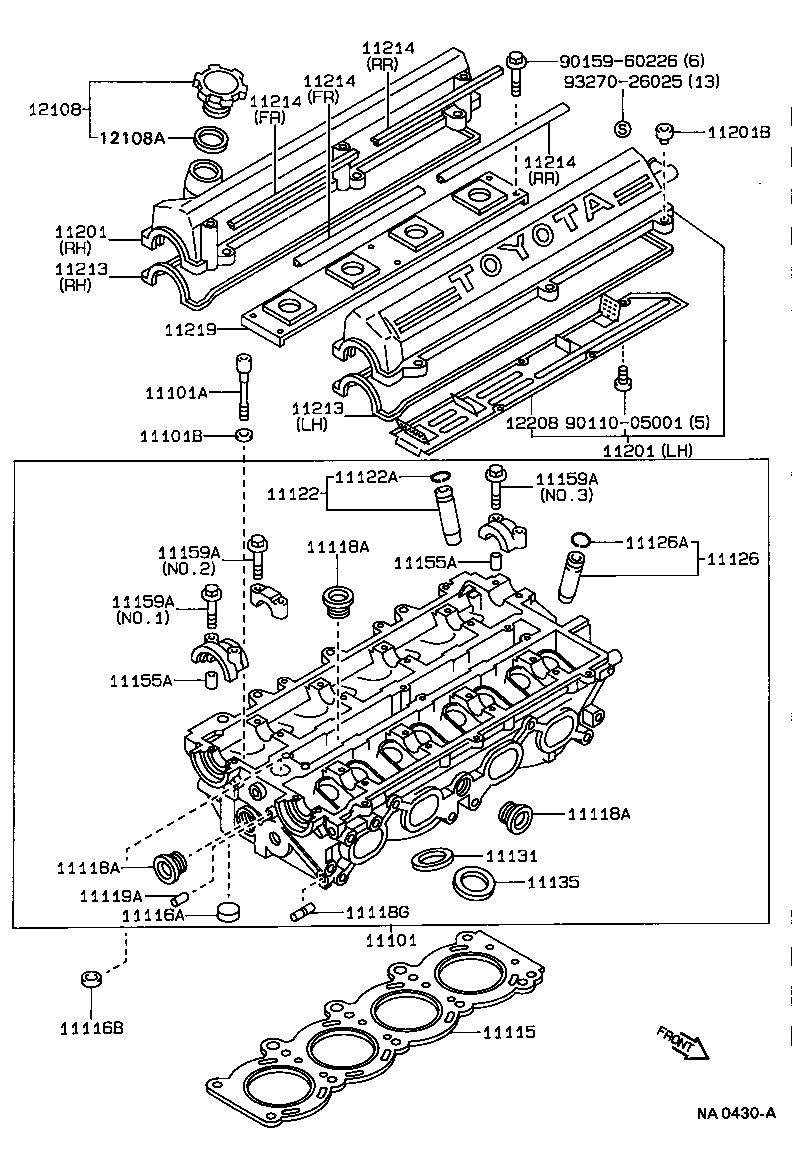

| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-88381 |
3SGE..SV21 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90110-10006 |
3SGE..SV21 |
10 | ||
| 90110-10006 |
3S#,4SFI..SV2# |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
3SGE..SV21 *53 |
10 | ||
| 90201-10050 |
3SGE..SV21 *54 |
10 | ||
| 90201-10344 |
3S#,4SFI..SV2# *53 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-88362 |
3SGE..SV21 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-41800 |
3SGE..SV21 *53 |
3 | ||
| 96411-41800 |
3SGE..SV21 *54 |
2 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-43000 |
3SGE..SV21 |
1 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
3SGE..SV21 *53,OD=30 |
2 | ||
| 90341-32031 |
3SGE..SV21 *53,OD=36 |
1 | ||
| 90341-27003 |
3SGE..SV21 *54 |
5 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
3SGE..SV21 *53,OD=30 |
2 | ||
| 90341-32031 |
3SGE..SV21 *53,OD=36 |
1 | ||
| 90341-27003 |
3SGE..SV21 *54 |
5 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
3SGE..SV21 *53,OD=30 |
2 | ||
| 90341-32031 |
3SGE..SV21 *53,OD=36 |
1 | ||
| 90341-27003 |
3SGE..SV21 *54 |
5 | ||
| 11118G - PIN, SLOTTED SPRING, NO.1 | ||||
| 90249-06052 |
3SGE..SV21 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06003 |
3S#,4SFI..SV2# 長さ=14,外径=6 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-88320 |
3SGE..SV21 O/S 0.05 |
8 | ||
| 11122-88320 |
3SGE..SV21 STD |
8 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
3S#,4SFI..SV2# |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-88320 |
3SGE..SV21 STD |
8 | ||
| 11123-88320 |
3SGE..SV21 O/S 0.05 |
8 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
3S#,4SFI..SV2# |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-74010 |
3SGE..SV21 STD |
8 | ||
| 11132-74010 |
3SGE..SV21 O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-74010 |
3SGE..SV21 STD |
8 | ||
| 11136-74010 |
3SGE..SV21 O/S 0.03 |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
3S#,4SFI..SV2# |
6 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
3S#,4SFI..SV2# |
6 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07002 |
3SGE..SV21 NO.2 |
16 | ||
| 90119-07003 |
3SGE..SV21 NO.3 |
2 | ||
| 90119-07001 |
3SGE..SV21 NO.1 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07002 |
3SGE..SV21 NO.2 |
16 | ||
| 90119-07003 |
3SGE..SV21 NO.3 |
2 | ||
| 90119-07001 |
3SGE..SV21 NO.1 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07002 |
3SGE..SV21 NO.2 |
16 | ||
| 90119-07003 |
3SGE..SV21 NO.3 |
2 | ||
| 90119-07001 |
3SGE..SV21 NO.1 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11211-88361 |
3SGE..SV21 RH,*53 |
1 | ||
| 11202-74010 |
3SGE..SV21 LH,*53 |
1 | ||
| 11211-74011 |
3SGE..SV21 RH,*53 |
1 | ||
| 11211-88361 |
3SGE..SV21 RH,*54 |
1 | ||
| 11202-88360 |
3SGE..SV21 LH,*54 |
1 | ||
| 11202-88360 |
3SGE..SV21 LH,*53 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11211-88361 |
3SGE..SV21 RH,*53 |
1 | ||
| 11202-74010 |
3SGE..SV21 LH,*53 |
1 | ||
| 11211-74011 |
3SGE..SV21 RH,*53 |
1 | ||
| 11211-88361 |
3SGE..SV21 RH,*54 |
1 | ||
| 11202-88360 |
3SGE..SV21 LH,*54 |
1 | ||
| 11202-88360 |
3SGE..SV21 LH,*53 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
3SGE..SV21 |
13 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11214-88380 |
3SGE..SV21 LH,*54 |
1 | ||
| 11214-74010 |
3SGE..SV21 LH,*53 |
1 | ||
| 11213-88360 |
3SGE..SV21 RH,*54 |
1 | ||
| 11213-74010 |
3SGE..SV21 RH,*53 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11214-88380 |
3SGE..SV21 LH,*54 |
1 | ||
| 11214-74010 |
3SGE..SV21 LH,*53 |
1 | ||
| 11213-88360 |
3SGE..SV21 RH,*54 |
1 | ||
| 11213-74010 |
3SGE..SV21 RH,*53 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11229-88360 |
3SGE..SV21 ﾌﾛﾝﾄ |
2 | ||
| 11239-88360 |
3SGE..SV21 ﾘﾔ |
2 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11229-88360 |
3SGE..SV21 ﾌﾛﾝﾄ |
2 | ||
| 11239-88360 |
3SGE..SV21 ﾘﾔ |
2 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11229-88360 |
3SGE..SV21 ﾌﾛﾝﾄ |
2 | ||
| 11239-88360 |
3SGE..SV21 ﾘﾔ |
2 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11229-88360 |
3SGE..SV21 ﾌﾛﾝﾄ |
2 | ||
| 11239-88360 |
3SGE..SV21 ﾘﾔ |
2 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-88361 |
3SGE..SV21 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13030 |
3S#,4SFI..SV2# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
3S#,4SFI..SV2# |
1 | ||
| 12208 - PLATE SUB-ASSY, VENTILATION BAFFLE | ||||
| 12208-88360 |
3SGE..SV21 |
1 | ||
| Common parts | ||||
| 90110-05001 | ||||
| 90159-60226 | ||||
| 93270-26025 | ||||
