SV21-UTMVF (1986)
Toyota Camry/Vista

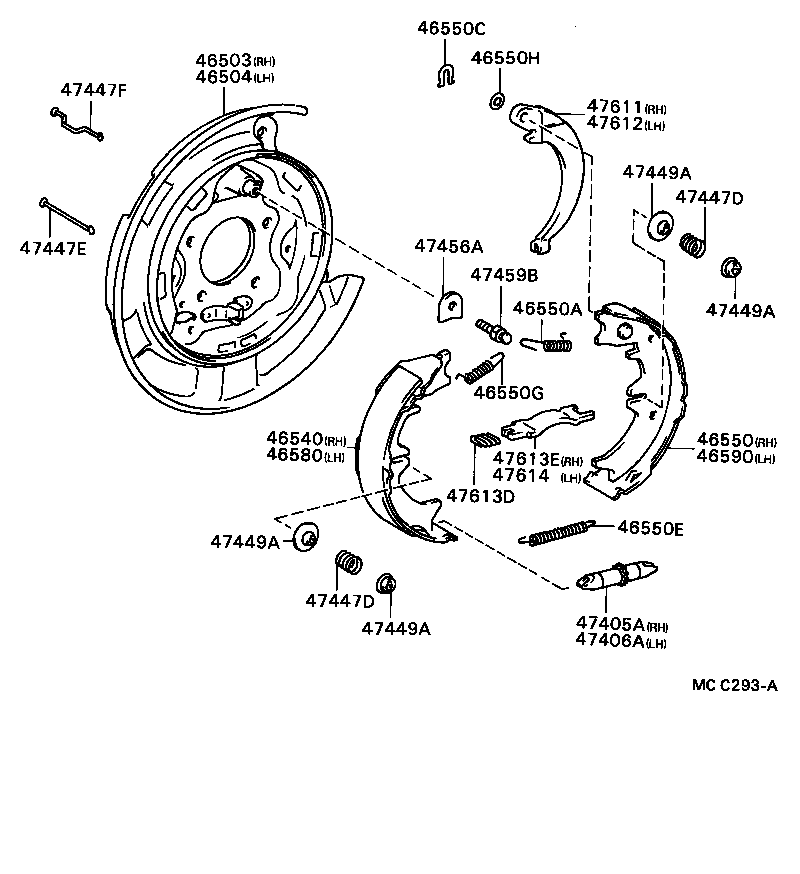

ILLUST NO. 3 OF 3(8608- )SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46503-20010 |
SV21,VZV20..GT,PRO |
1 | ||
| 46503-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-20010 |
SV21,VZV20..GT,PRO |
1 | ||
| 46504-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46504-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46540-20010 |
SV21,VZV20..GT,PRO |
1 | ||
| 46540-20010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 46540-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-20010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 46550-20010 |
SV21,VZV20..GT,PRO |
1 | ||
| 46550-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46550-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-18015 |
SV21,VZV20..GT,PRO RH,W/ESC |
1 | ||
| 90507-18015 |
SV21,VZV20..GT,PRO ｱﾘ(ESC),右側 |
2 | ||
| 90507-16009 |
SV21,VZV20..GT,PRO |
2 | ||
| 90507-16009 |
SV21..GT |
2 | ||
| 90507-18016 |
SV21,VZV20..GT,PRO ｱﾘ(ESC),左側 |
2 | ||
| 90507-18016 |
SV21,VZV20..GT,PRO LH,W/ESC |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
SV21,VZV20..GT,PRO |
2 | ||
| 90213-07018 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
SV21,VZV20..GT,PRO |
2 | ||
| 90506-12010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
SV21,VZV20..GT,PRO |
2 | ||
| 90507-18016 |
SV21,VZV20..GT,PRO RH,W/ESC |
1 | ||
| 90507-18015 |
SV21,VZV20..GT,PRO LH,W/ESC |
1 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09186 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE 厚さ=0.9 |
1 | ||
| 90564-09186 |
SV21,VZV20..GT,PRO 厚さ=0.9,T=0.9 |
1 | ||
| 90564-09185 |
SV21,VZV20..GT,PRO 厚さ=0.6,T=0.6 |
1 | ||
| 90564-09184 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE 厚さ=0.3 |
1 | ||
| 90564-09185 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE 厚さ=0.6 |
1 | ||
| 90564-09184 |
SV21,VZV20..GT,PRO 厚さ=0.3,T=0.3 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46540-20010 |
SV21,VZV20..GT,PRO |
1 | ||
| 46540-20010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 46540-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-20010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 46590-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 46590-20010 |
SV21,VZV20..GT,PRO |
1 | ||
| 46590-32010 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
SV21,VZV20..GT,PRO |
1 | ||
| 47405-30040 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47406-30040 |
SV21,VZV20..GT,PRO |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
SV21,VZV20..GT,PRO |
4 | ||
| 90501-14049 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
SV21,VZV20..GT,PRO |
4 | ||
| 90501-14049 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 47447-20030 |
SV21,VZV20..GT,PRO |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 47447-22020 |
SV21,VZV20..GT,PRO |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
SV21,VZV20..GT,PRO OUTER,T=0.8 |
4 | ||
| 47449-22010 |
SV21,VZV20..GT,PRO 内側 |
4 | ||
| 47449-22010 |
SV21,VZV20..GT,PRO INNER,T=0.8 |
4 | ||
| 47449-30030 |
SV21,VZV20..GT,PRO 外側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
SV21,VZV20..GT,PRO OUTER,T=0.8 |
4 | ||
| 47449-22010 |
SV21,VZV20..GT,PRO 内側 |
4 | ||
| 47449-22010 |
SV21,VZV20..GT,PRO INNER,T=0.8 |
4 | ||
| 47449-30030 |
SV21,VZV20..GT,PRO 外側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
SV21,VZV20..GT,PRO OUTER,T=0.8 |
4 | ||
| 47449-22010 |
SV21,VZV20..GT,PRO 内側 |
4 | ||
| 47449-22010 |
SV21,VZV20..GT,PRO INNER,T=0.8 |
4 | ||
| 47449-30030 |
SV21,VZV20..GT,PRO 外側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
SV21,VZV20..GT,PRO OUTER,T=0.8 |
4 | ||
| 47449-22010 |
SV21,VZV20..GT,PRO 内側 |
4 | ||
| 47449-22010 |
SV21,VZV20..GT,PRO INNER,T=0.8 |
4 | ||
| 47449-30030 |
SV21,VZV20..GT,PRO 外側 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 47456-20030 |
SV21,VZV20..GT,PRO |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
SV21,VZV20..GT,PRO |
2 | ||
| 47459-30010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-32030 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 47611-20030 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47611-20030 |
SV21,VZV20..GT,PRO |
1 | ||
| 47611-32030 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||
| 47612-20030 |
SV21,VZV20..GT,PRO |
1 | ||
| 47612-32030 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 47612-32030 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14004 |
SV21,VZV20..GT,PRO W/ESC |
2 | ||
| 90504-14002 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 90504-14004 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
2 | ||
| 90504-14002 |
SV21,VZV20..GT,PRO |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
SV21,VZV20..GT,PRO |
1 | ||
| 47613-32020 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 47613-32020 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-32020 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 47614-20010 |
SV21,VZV20..GT,PRO |
1 | ||
| 47613-32020 |
SV21,VZV20..GT,PRO ｱﾘ(ESC) |
1 | ||
| 47614-20010 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
1 | ||

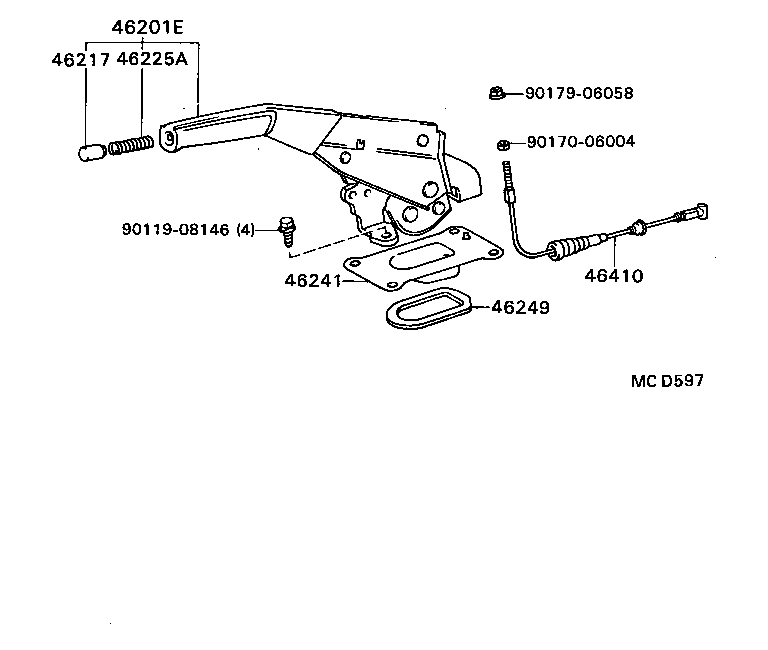

ILLUST NO. 1 OF 3(8608- )5F ; (8608- )4FC..GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-3208004 |
CV20,SV2#,VZV20..5F URETHAN,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 46201-3208002 |
CV20,SV2#,VZV20..5F URETHAN,MAROON,MAROON,TRIM3# |
1 | ||
| 46201-3208005 |
CV20,SV2#,VZV20..5F URETHAN,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 46201-3208005 |
SV20..HT..5F;SV21..4FC..GT;CV20,SV21,25..5F;SV20..SED..5F..(VE,VR,ZE,ZT) DARK BEIGE,TRIM4# |
1 | ||
| 46201-3208004 |
SV20..HT..5F;SV21..4FC..GT;CV20,SV21,25,VZV20..5F;SV20..SED..5F..(VE,VR,ZE,ZT) DARK BLUE,TRIM8# |
1 | ||
| 46201-3208002 |
SV20..HT..5F;SV21..4FC..GT;CV20,SV21,25,VZV20..5F;SV20..SED..5F..(VE,VR,ZE,ZT) MAROON,TRIM3# |
1 | ||
| 46201-3208104 |
SV20..HT..5F;SV21..4FC..GT;CV20,SV21,25,VZV20..5F;SV20..SED..5F..(VE,VR,ZE,ZT) DARK BLUE,TRIM8# |
1 | ||
| 46201-3208102 |
SV20..HT..5F;SV21..4FC..GT;CV20,SV21,25,VZV20..5F;SV20..SED..5F..(VE,VR,ZE,ZT) MAROON,TRIM3# |
1 | ||
| 46201-3208105 |
SV20..HT..5F;SV21..4FC..GT;CV20,SV21,25..5F;SV20..SED..5F..(VE,VR,ZE,ZT) DARK BEIGE,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002042 |
CV20,SV2#,VZV20..5F MAROON,MAROON,TRIM3# |
1 | ||
| 46217-2002015 |
CV20,SV2#,VZV20..5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 46217-2002054 |
SV21..4FC..GT;CV20,SV2#,VZV20..5F DARK BLUE,TRIM8# |
1 | ||
| 46217-2002015 |
CV20,SV2#..5F;SV21..4FC..GT BEIGE,TRIM4# |
1 | ||
| 46217-2002054 |
CV20,SV2#,VZV20..5F BLUE,DARK BLUE,TRIM8# |
1 | ||
| 46217-12020J0 |
SV21..4FC..GT;CV20,SV2#,VZV20..5F DARK BLUE,TRIM8# |
1 | ||
| 46217-12020D0 |
SV21..4FC..GT;CV20,SV2#,VZV20..5F MAROON,TRIM3# |
1 | ||
| 46217-2002042 |
SV21..4FC..GT;CV20,SV2#,VZV20..5F MAROON,TRIM3# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
SV21..4FC..GT;CV20,SV2#,VZV20..5F |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-32030 |
CV20,SV2#,VZV20..5F |
1 | ||
| 46241-32030 |
SV21..4FC..GT;CV20,SV20,21,VZV20..5F |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-32010 |
SV21..4FC..GT;CV20,SV2#,VZV20..5F |
1 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||

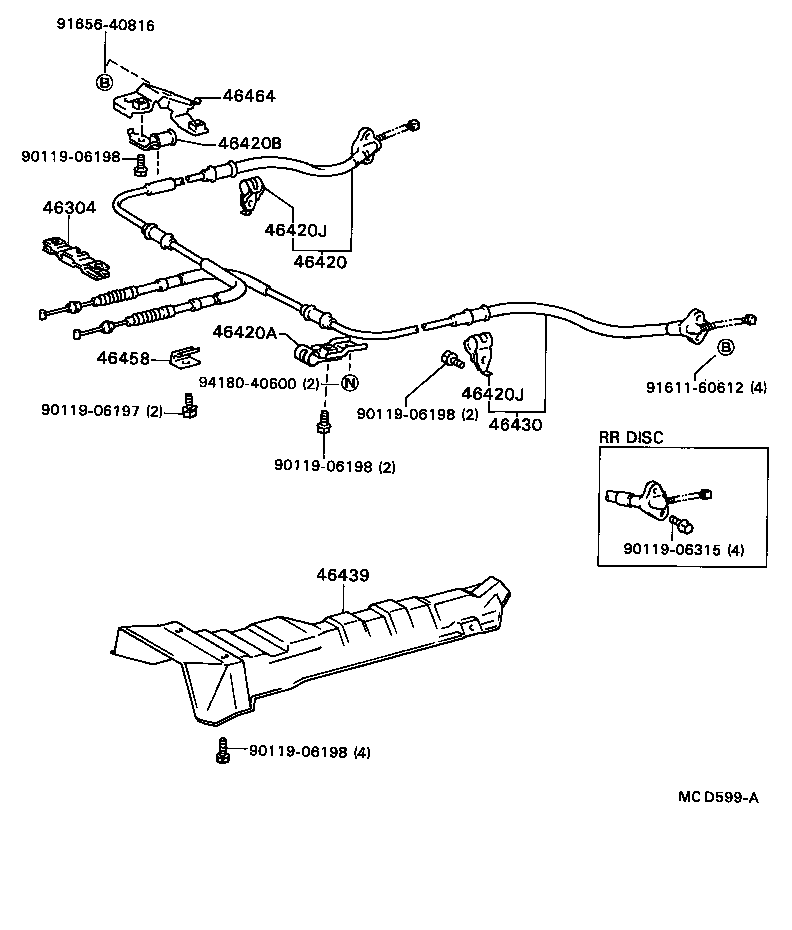

ILLUST NO. 2 OF 3(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-39055 |
SV21,VZV20..GT,PRO |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01331 |
CV20,SV2#,VZV20 |
2 | ||
| 90949-01331 |
CV20,SV20,21,VZV20 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01332 |
CV20,SV20,21,VZV20 |
1 | ||
| 90949-01332 |
CV20,SV2#,VZV20 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01330 |
CV20,SV20,21,VZV20 |
2 | ||
| 90949-01330 |
CV20,SV2#,VZV20 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01330 |
CV20,SV20,21,VZV20 |
2 | ||
| 90949-01330 |
CV20,SV2#,VZV20 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-39055 |
SV21,VZV20..GT,PRO |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-32020 |
SV21,VZV20..GT,PRO |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
CV20,SV2#,VZV20 |
2 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-32010 |
CV20,SV20,21,VZV20 |
1 | ||
| 46464-32010 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 91611-60612 | ||||
| 91656-40816 | ||||
| 94180-40600 | ||||
