SV21-UTMVF (1986)
Toyota Camry/Vista

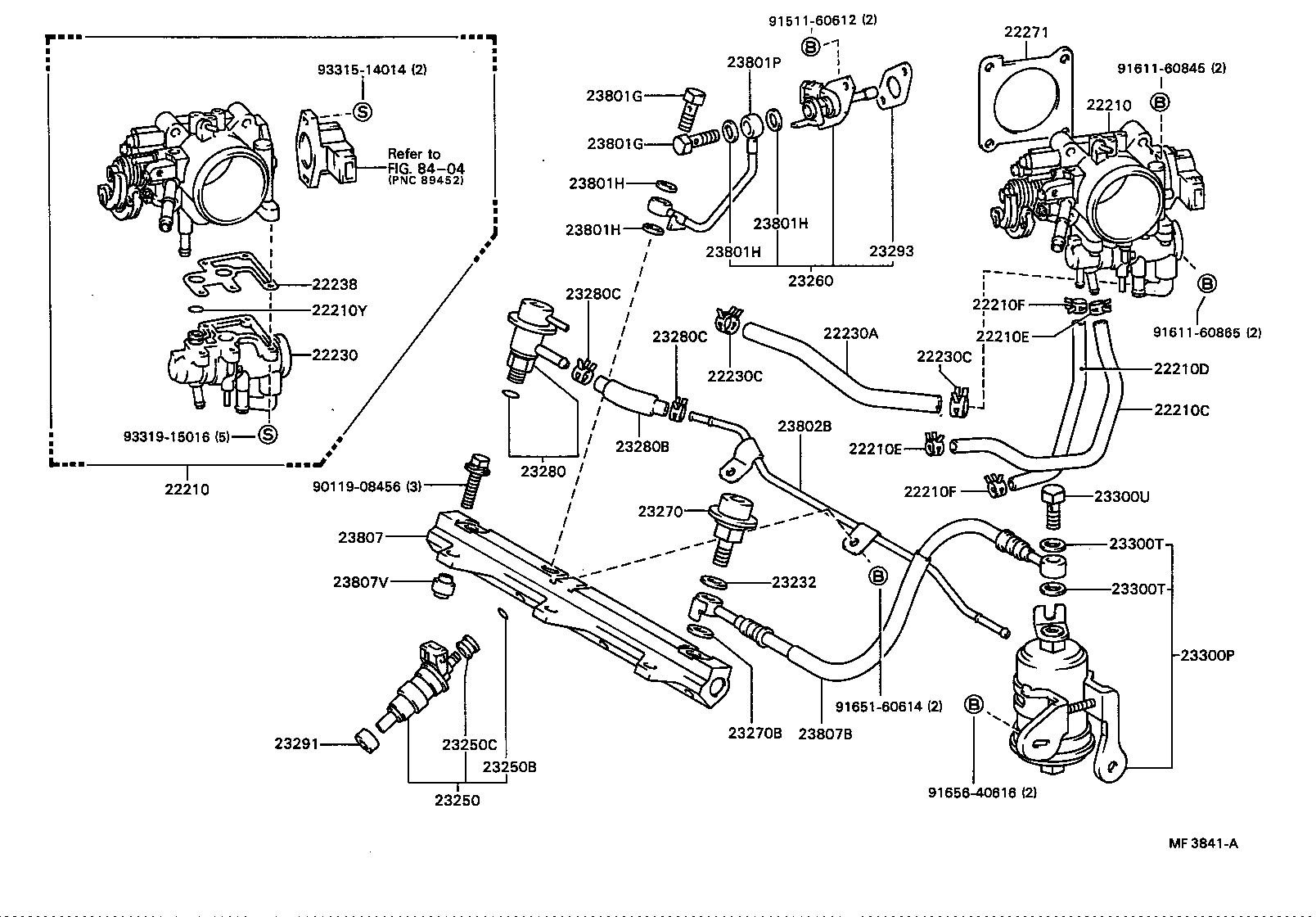

ILLUST NO. 1 OF 3(8608- )3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-74110 |
3SGE..SV21 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-74110 |
3SGE..SV21 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16264-88360 |
3SGE..SV21 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16267-88360 |
3SGE..SV21 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
1SI,3S#..SV2# |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
1SI,3S#..SV2# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
1SI,3S#..SV2# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
1SI,3S#..SV2# |
2 | ||
| 22210Y - RING, O(FOR AIR TUBE) | ||||
| 96711-19009 |
3SGE..SV21 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-74030 |
3SGE..SV21 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22233-88360 |
3SGE..SV21 *54 |
1 | ||
| 22233-88361 |
3SGE..SV21 *53 |
1 | ||
| 22233-88360 |
3SGE..SV21 *54 |
1 | ||
| 22233-88362 |
3SGE..SV21 *53 |
1 | ||
| 22233-88362 |
3SGE..SV21 *53 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-20134 |
3SGE..SV21 |
2 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-20134 |
3SGE..SV21 |
2 | ||
| 22238 - GASKET, AUXILIARY AIR VALVE | ||||
| 22238-74010 |
3SGE..SV21 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88360 |
3SGE..SV21 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-28010 |
3S#..SV21,25 |
1 | ||
| 23232-28010 |
3S#..SV21 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74020 |
3SGE..SV21 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3S#..SV21,25 |
4 | ||
| 90301-07001 |
3S#..SV21 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3S#..SV21 |
4 | ||
| 90480-13005 |
3S#..SV21,25 |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79065 |
3SGE..SV21 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-74010 |
3S#..SV21 |
1 | ||
| 23207-74010 |
3S#..SV21,25 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
3S#..SV21 |
1 | ||
| 90430-12005 |
3S#..SV21,25 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74020 |
3SGE..SV21 |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 90447-12051 |
3SGE..SV21 |
1 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11009 |
1SI,3SGE..SV20,21 |
2 | ||
| 90467-11049 |
1SI,3SGE..SV20,21 |
2 | ||
| 90467-11009 |
1SI,3SGE..SV2# |
2 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11009 |
1SI,3SGE..SV20,21 |
2 | ||
| 90467-11049 |
1SI,3SGE..SV20,21 |
2 | ||
| 90467-11009 |
1SI,3SGE..SV2# |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3S#..SV21 |
4 | ||
| 23291-41010 |
3S#..SV21,25 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-74010 |
1SI,3S#..SV2# |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23030-79025 |
1SI,3S#..SV2# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1SI,3S#..SV2# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1SI,3S#..SV2# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1SI,3S#..SV2# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
3SGE..SV21 *53 |
2 | ||
| 90401-08003 |
3SGE..SV21 *54 |
2 | ||
| 90401-08003 |
3S#..SV21,25 |
2 | ||
| 90401-08003 |
3S#..SV21 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
3SGE..SV21 *53 |
2 | ||
| 90401-08003 |
3SGE..SV21 *54 |
2 | ||
| 90401-08003 |
3S#..SV21,25 |
2 | ||
| 90401-08003 |
3S#..SV21 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
3SGE..SV21 *53 |
4 | ||
| 90430-08005 |
3SGE..SV21 *54 |
4 | ||
| 90430-08009 |
3S#..SV21,25 *53 |
4 | ||
| 90430-08005 |
3SGE..SV21 *54 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
3SGE..SV21 *53 |
4 | ||
| 90430-08005 |
3SGE..SV21 *54 |
4 | ||
| 90430-08009 |
3S#..SV21,25 *53 |
4 | ||
| 90430-08005 |
3SGE..SV21 *54 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
3SGE..SV21 *53 |
4 | ||
| 90430-08005 |
3SGE..SV21 *54 |
4 | ||
| 90430-08009 |
3S#..SV21,25 *53 |
4 | ||
| 90430-08005 |
3SGE..SV21 *54 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08009 |
3SGE..SV21 *53 |
4 | ||
| 90430-08005 |
3SGE..SV21 *54 |
4 | ||
| 90430-08009 |
3S#..SV21,25 *53 |
4 | ||
| 90430-08005 |
3SGE..SV21 *54 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-88360 |
3SGE..SV21 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-88361 |
3SGE..SV21 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-88360 |
3SGE..SV21 *53 |
1 | ||
| 23814-88360 |
3SGE..SV21 |
1 | ||
| 23814-88361 |
3SGE..SV21 *54 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 90923-01356 |
3SGE..SV21 |
1 | ||
| 90923-01311 |
3SGE..SV21 |
1 | ||
| 90923-01311 |
3SGE..SV21 |
1 | ||
| 90923-01330 |
3SGE..SV21 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08012 |
3SGE..SV21 |
3 | ||
| 90561-08024 |
3SGE..SV21 *53 |
1 | ||
| 90561-08024 |
3SGE..SV21 |
3 | ||
| Common parts | ||||
| 90119-08456 | ||||
| 91511-60612 | ||||
| 91611-60845 | ||||
| 91611-60865 | ||||
| 91651-60614 | ||||
| 91656-40616 | ||||
| 93315-14014 | ||||
| 93319-15016 | ||||
| Linked diagrams | ||||
| 8404 | ||||

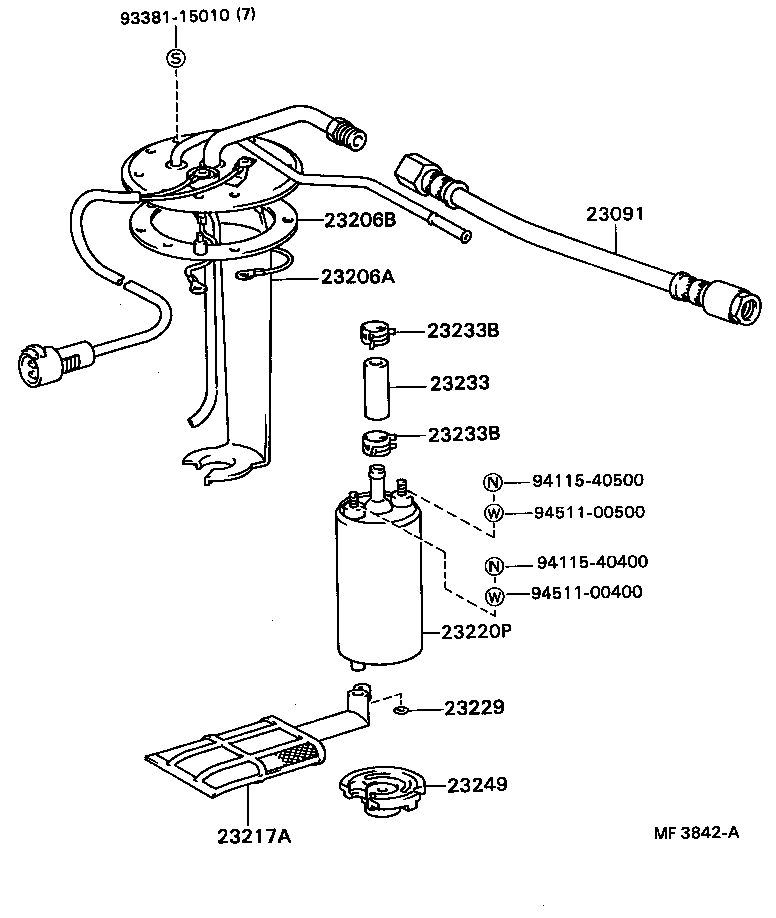

ILLUST NO. 3 OF 3(8608- )1SI,3S#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74060 |
1SI,3S#..SV20,21 |
1 | ||
| 23091-74060 |
1SI,3S#..SV2# |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74160 |
1SI,3S#..SV20,21 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
1SI,3SGE..SV20,21 |
1 | ||
| 77169-14010 |
1SI,3S#..SV2# |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16030 |
1SI,3S#..SV2# DENSO |
1 | ||
| 23217-16043 |
1SI,3S#..SV2# AISAN |
1 | ||
| 23217-16030 |
1SI,3S#..SV2# DENSO |
1 | ||
| 23217-16043 |
1SI,3S#..SV2# AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16084 |
1SI,3S#..SV2# AISAN |
1 | ||
| 23220-43070 |
1SI,3S#..SV20,21 DENSO |
1 | ||
| 23220-16084 |
1SI,3S#..SV2# AISAN |
1 | ||
| 23220-16190 |
1SI,3S#..SV2# DENSO |
1 | ||
| 23220-43070 |
1SI,3S#..SV2# DENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1SI,3S#..SV2# |
1 | ||
| 23229-16010 |
1SI,3S#..SV2# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1SI,3S#..SV2# |
1 | ||
| 23239-16010 |
1SI,3S#..SV2# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1SI,3S#..SV2# |
2 | ||
| 90467-13001 |
1SI,3S#..SV2# |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1SI,3S#..SV2# |
2 | ||
| 90467-13001 |
1SI,3S#..SV2# |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
1SI,3S#..SV2# |
1 | ||
| 23249-74150 |
1SI,3S#..SV2# |
1 | ||
| Common parts | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
