SV21-UTMMK (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

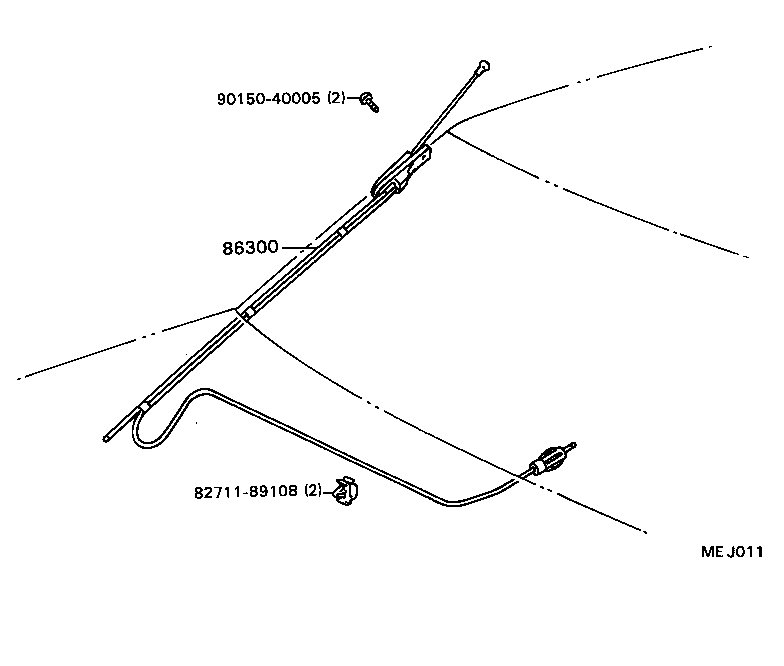

diagram 8271189108 86300 9015040005
Part # Description Qty Price
Common parts
82711-89108
90150-40005

(8808- )

Click highlighted areas on diagram

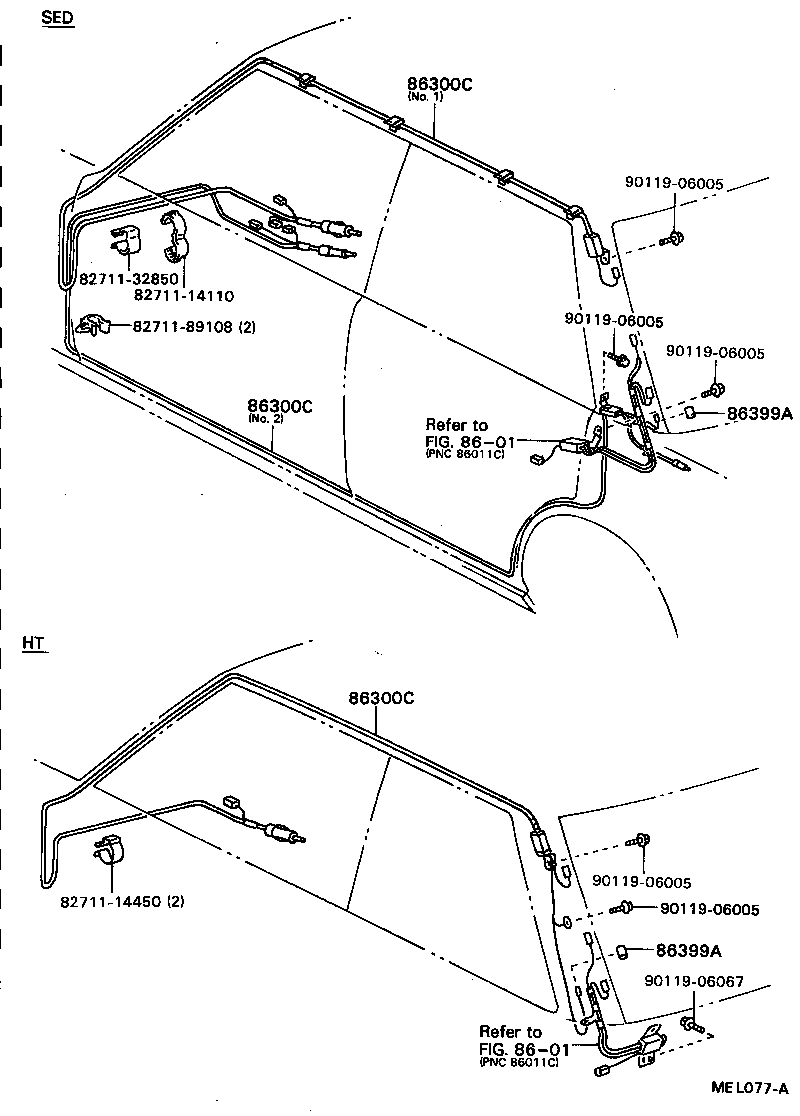

diagram 8271114110 8271114450 8271132850 8271189108 8601 8601 86300C 86300C 86300C 86399A 86399A 9011906005 9011906005 9011906005 9011906005 9011906005 9011906067
Part # Description Qty Price
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-32091

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-32091

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-32091

CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)

 1
86399A - CAP, ANTENNA
86399-22010

CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX

 1
86399A - CAP, ANTENNA
86399-22010

CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX

 1
Common parts
82711-14110
82711-14450
82711-32850
82711-89108
90119-06005
90119-06067
Linked diagrams
8601
