SV21-UTMMK (1988)
Toyota Camry/Vista

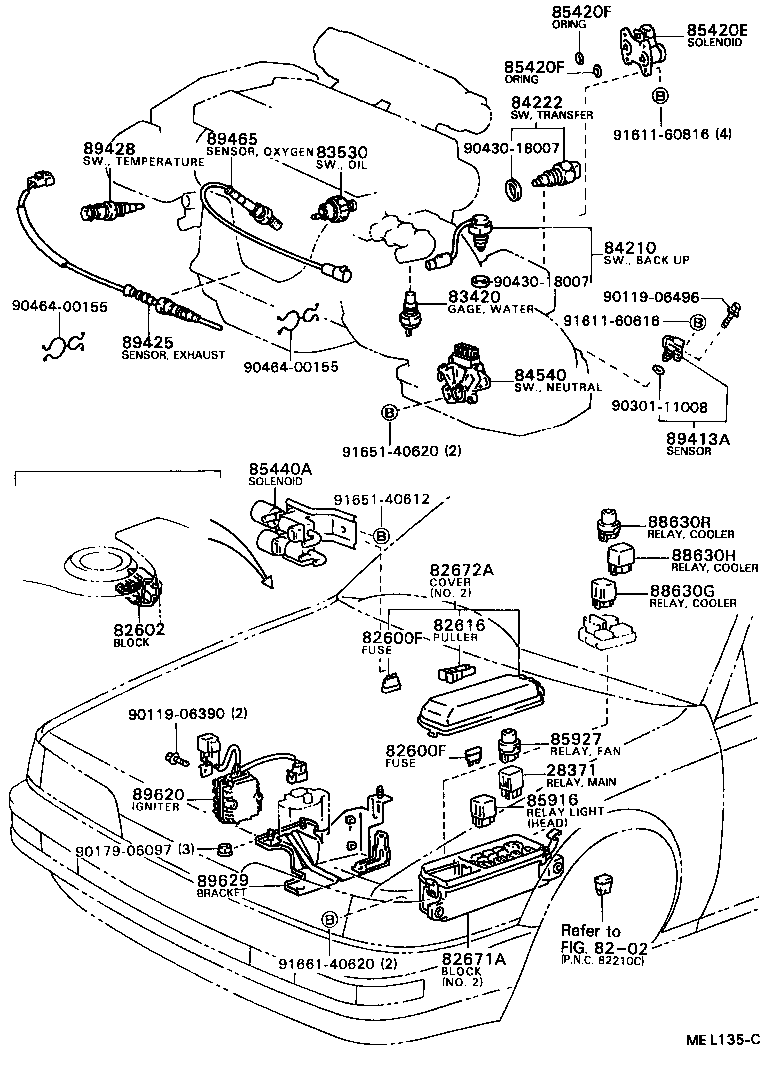

ILLUST NO. 1 OF 7(8808- )SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
2CT,3S#,4SFI..CV20,SV2# |
1 | ||
| 90987-04002 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
CV20,SV2#,VZV20..LUM,PRO,VE,VR,ZE 15A |
6 | ||
| 90982-09002 |
CV20,SV21,22..LUM,VE 10A |
5 | ||
| 90982-09003 |
SV21,22;CV20,SV25,VZV20..PRO,VL,VR,XT,ZE 15A |
5 | ||
| 90982-09003 |
CV20,SV21,22..LUM,VE 15A |
6 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
2 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
1 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
3 | ||
| 90982-09002 |
CV20,SV2#,VZV20 10A |
4 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
2 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
5 | ||
| 90982-09003 |
CV20,SV2#..LUM,VE,VR,ZE 15A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
CV20,SV2#,VZV20..LUM,PRO,VE,VR,ZE 15A |
6 | ||
| 90982-09002 |
CV20,SV21,22..LUM,VE 10A |
5 | ||
| 90982-09003 |
SV21,22;CV20,SV25,VZV20..PRO,VL,VR,XT,ZE 15A |
5 | ||
| 90982-09003 |
CV20,SV21,22..LUM,VE 15A |
6 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
2 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
1 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
3 | ||
| 90982-09002 |
CV20,SV2#,VZV20 10A |
4 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
2 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
5 | ||
| 90982-09003 |
CV20,SV2#..LUM,VE,VR,ZE 15A |
6 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-32080 |
CV20,SV2#,VZV20 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CV20,SV2#,VZV20 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 82671-32030 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32040 |
CV20,SV2#,VZV20 NO.3 |
1 | ||
| 82672-32200 |
SV2#,VZV20 NO.2 |
1 | ||
| 82672-32170 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
SV2#,VZV20..LT,LUM,PRO,VC,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CV20,SV2#,VZV20..5F |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CV20,SV2#,VZV20 HEADLAMP |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 NIPPONDENSO,TAIL LAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
SV2#;CV20..5F |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 85926-30020 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04003 |
CV20..5F;SV22..HT..VL;SV22..LUM,VE,VR,ZE;SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-02004 |
SV21,25;CV20..5F;SV22..HT..VL;SV22..LUM,VE,VR,ZE |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
SV2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-32060 |
SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-32110 |
SV2#,VZV20 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-32060 |
SV2# |
1 | ||
| 89629-32060 |
SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06496 | ||||
| 90179-06097 | ||||
| 90301-11008 | ||||
| 90430-18007 | ||||
| 90464-00155 | ||||
| 91611-60616 | ||||
| 91611-60816 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||

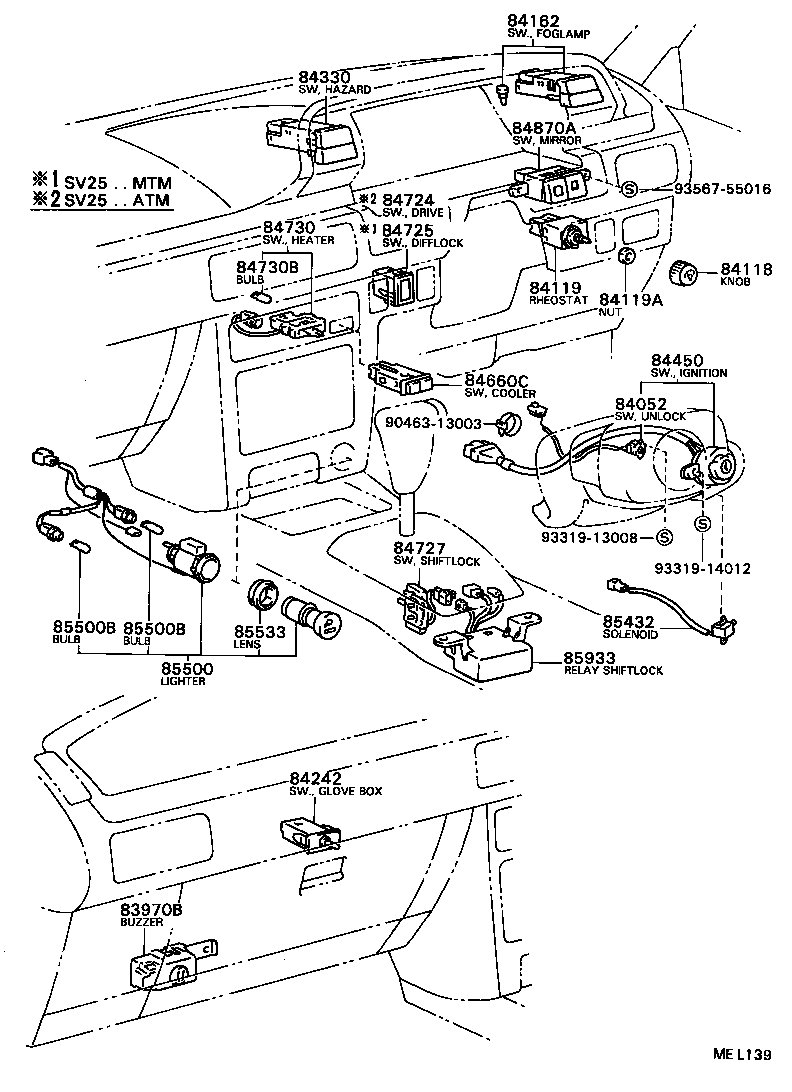

ILLUST NO. 3 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-32070 |
CV20,SV2#,VZV20 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-32150 |
CV20,SV2#,VZV20 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-32020 |
CV20,SV2#..LT,LUM,VC,VE,VL,XT |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-3206003 |
CV20,SV2#..LUM,VE,VL,XT MEDIUM GRAY,TRIM1# |
1 | ||
| 84870-3206004 |
CV20,SV2#..LUM,VE,VL,XT DARK BLUE,TRIM8# |
1 | ||
| 84870-3206002 |
CV20,SV2#..LUM,VE,VL,XT MAROON,TRIM3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32051 |
CV20,SV2#,VZV20 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV20,SV2#,VZV20 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV20,SV2#,VZV20 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-32010 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93567-55016 | ||||

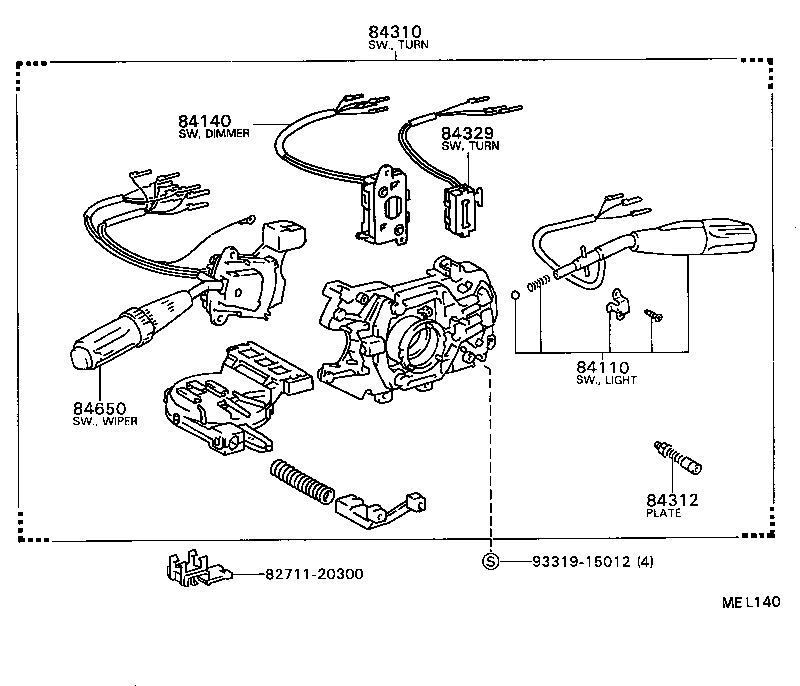

ILLUST NO. 4 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80005 |
CV20,SV2#..LT,LUM,VC,VE,VL,XT 東海理化 |
1 | ||
| 84112-80007 |
CV20,SV2#..LT,LUM,VC,VE,VL,XT MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
CV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE MATSUSHITA |
1 | ||
| 84140-12220 |
CV20,SV2#..LT,LUM,VC,VE,VL,XT 東海理化 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32640 |
CV20,SV21,22..LUM,VE |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
CV20,SV2#,VZV20 MATSUSHITA |
1 | ||
| 84312-12040 |
CV20,SV2#,VZV20 東海理化 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
CV20,SV2#..LT,LUM,VC,VE,VL,XT MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-32590 |
CV20,SV2#..LUM,VE,VR,ZE MATSUSHITA |
1 | ||
| 84652-32600 |
CV20,SV2#..LUM,VE,VR,ZE 東海理化 |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 93319-15012 | ||||

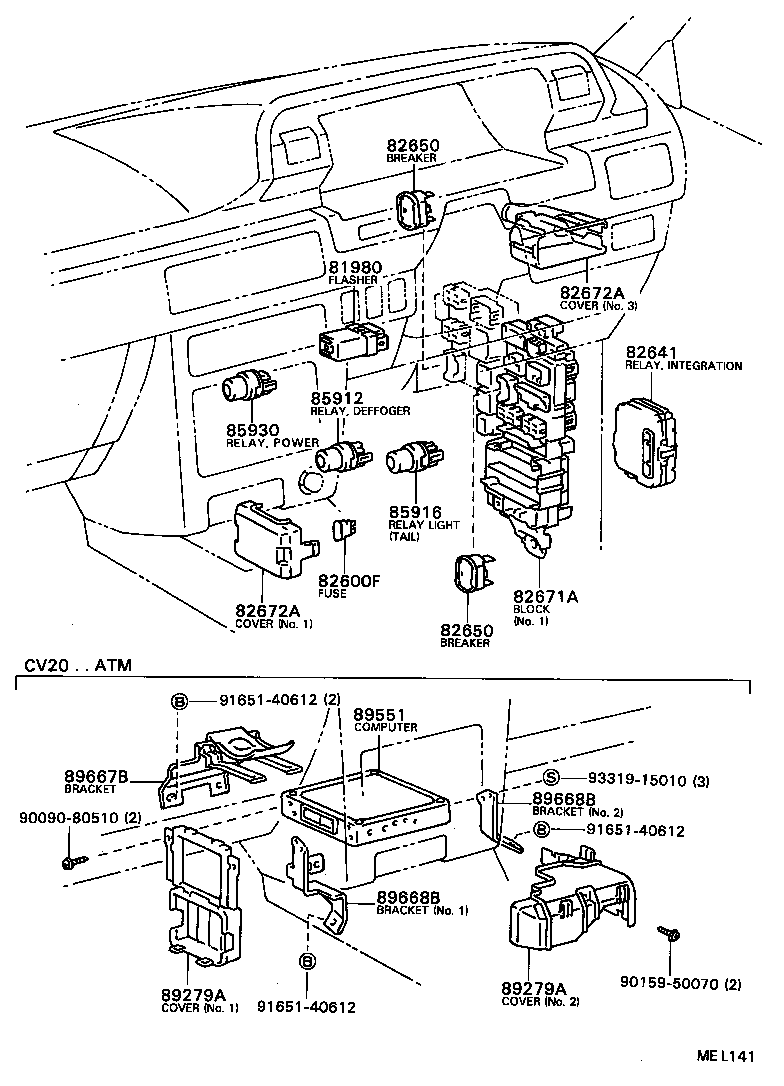

ILLUST NO. 5 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
CV20,SV2#,VZV20 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
CV20,SV2#,VZV20..LUM,PRO,VE,VR,ZE 15A |
6 | ||
| 90982-09002 |
CV20,SV21,22..LUM,VE 10A |
5 | ||
| 90982-09003 |
SV21,22;CV20,SV25,VZV20..PRO,VL,VR,XT,ZE 15A |
5 | ||
| 90982-09003 |
CV20,SV21,22..LUM,VE 15A |
6 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
2 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
1 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
3 | ||
| 90982-09002 |
CV20,SV2#,VZV20 10A |
4 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
2 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
5 | ||
| 90982-09003 |
CV20,SV2#..LUM,VE,VR,ZE 15A |
6 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-32010 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV20 30A |
1 | ||
| 82650-20020 |
CV20,SV2#,VZV20 40A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV20 30A |
1 | ||
| 82650-20020 |
CV20,SV2#,VZV20 40A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 82671-32030 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32040 |
CV20,SV2#,VZV20 NO.3 |
1 | ||
| 82672-32200 |
SV2#,VZV20 NO.2 |
1 | ||
| 82672-32170 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32040 |
CV20,SV2#,VZV20 NO.3 |
1 | ||
| 82672-32200 |
SV2#,VZV20 NO.2 |
1 | ||
| 82672-32170 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
CV20,SV2#,VZV20 MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CV20,SV2#,VZV20 HEADLAMP |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 NIPPONDENSO,TAIL LAMP |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX NIPPONDENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MARUKO |
1 | ||
| Common parts | ||||
| 90090-80510 | ||||
| 90159-50070 | ||||
| 91651-40612 | ||||
| 93319-15010 | ||||

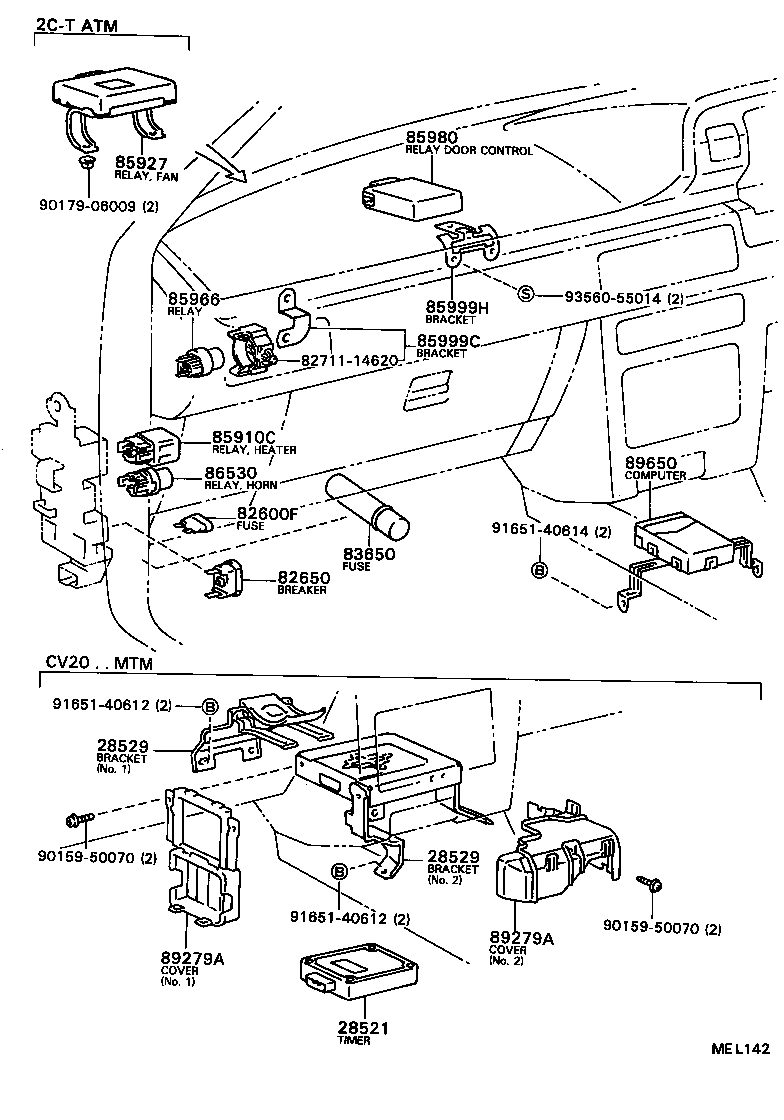

ILLUST NO. 6 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
CV20,SV2#,VZV20..LUM,PRO,VE,VR,ZE 15A |
6 | ||
| 90982-09002 |
CV20,SV21,22..LUM,VE 10A |
5 | ||
| 90982-09003 |
SV21,22;CV20,SV25,VZV20..PRO,VL,VR,XT,ZE 15A |
5 | ||
| 90982-09003 |
CV20,SV21,22..LUM,VE 15A |
6 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
2 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
1 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
3 | ||
| 90982-09002 |
CV20,SV2#,VZV20 10A |
4 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
2 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
5 | ||
| 90982-09003 |
CV20,SV2#..LUM,VE,VR,ZE 15A |
6 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV20 30A |
1 | ||
| 82650-20020 |
CV20,SV2#,VZV20 40A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
CV20,SV2#,VZV20 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
CV20,SV2#,VZV20 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
SV2#;CV20..5F |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-32050 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-32030 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
CV20,SV2#,VZV20 MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 NIPPONDENSO |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90159-50070 | ||||
| 90179-06009 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93560-55014 | ||||

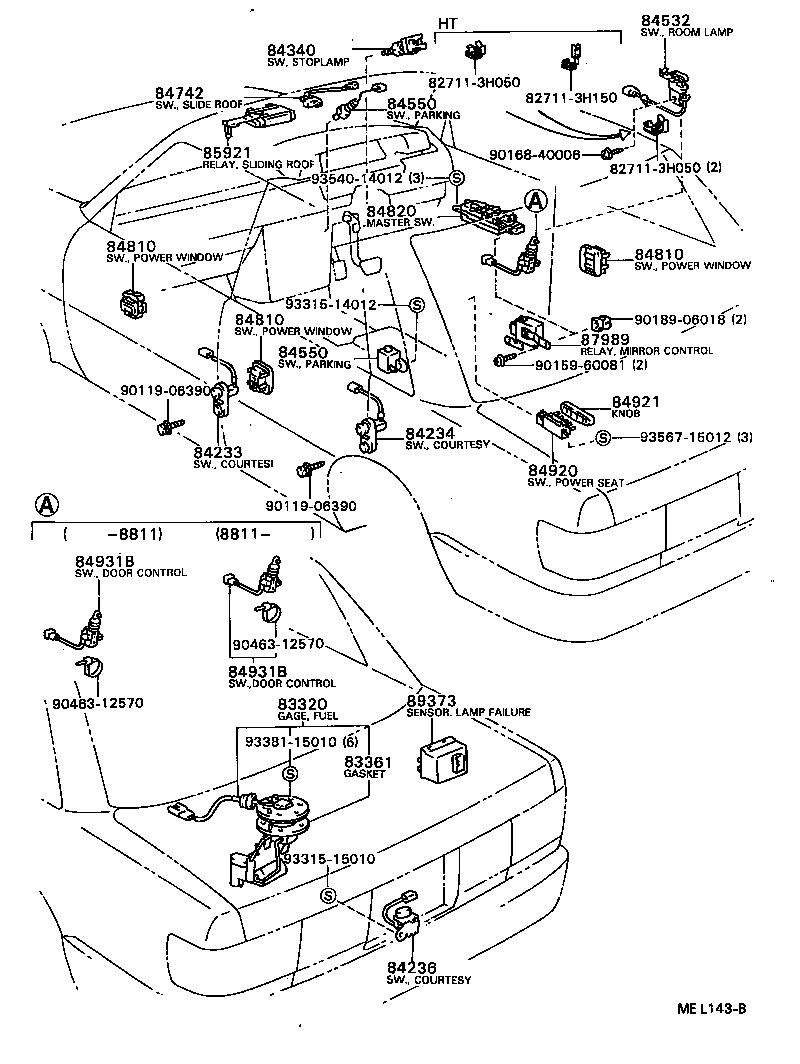

ILLUST NO. 7 OF 7(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39765 |
SV21,22,VZV20 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
CV20,SV21,22,VZV20 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-24010 |
CV20,SV2#,VZV20 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20110 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
SV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
SV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-32010 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32060B0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1#,REAR |
2 | ||
| 84810-32060D0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3#,REAR |
2 | ||
| 84810-32060J0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DARK BLUE,TRIM8#,REAR |
2 | ||
| 84810-32070 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32060B0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1#,REAR |
2 | ||
| 84810-32060D0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3#,REAR |
2 | ||
| 84810-32060J0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DARK BLUE,TRIM8#,REAR |
2 | ||
| 84810-32070 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32060B0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1#,REAR |
2 | ||
| 84810-32060D0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3#,REAR |
2 | ||
| 84810-32060J0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DARK BLUE,TRIM8#,REAR |
2 | ||
| 84810-32070 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FRONT |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22310 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-39025 |
CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 84931-32040 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-39025 |
CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 84931-32040 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-32020 |
CV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32170 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 82711-3H050 | ||||
| 82711-3H150 | ||||
| 90119-06390 | ||||
| 90159-60081 | ||||
| 90168-40006 | ||||
| 90189-06018 | ||||
| 90463-12570 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93381-15010 | ||||
| 93540-14012 | ||||
| 93567-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
