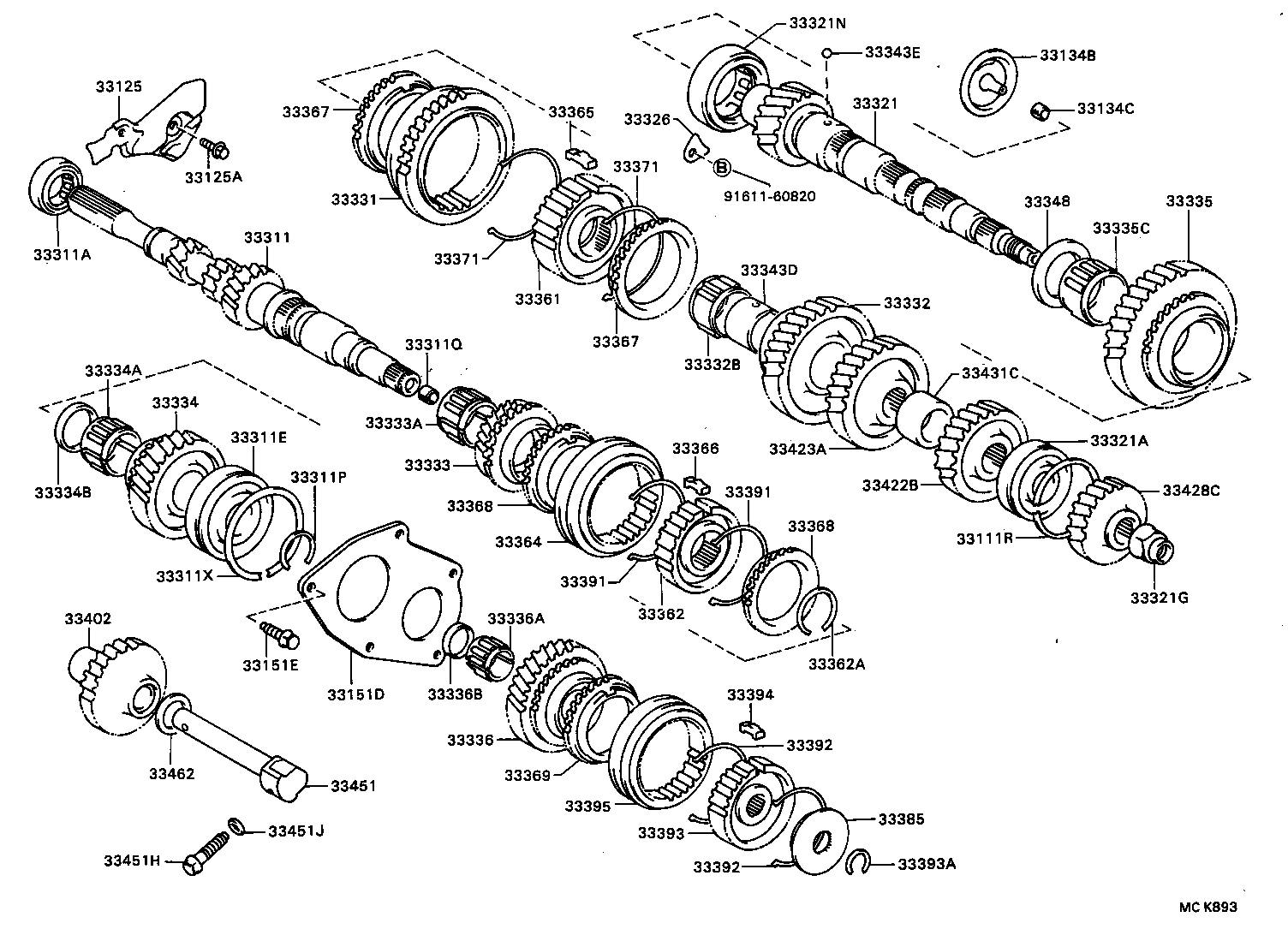

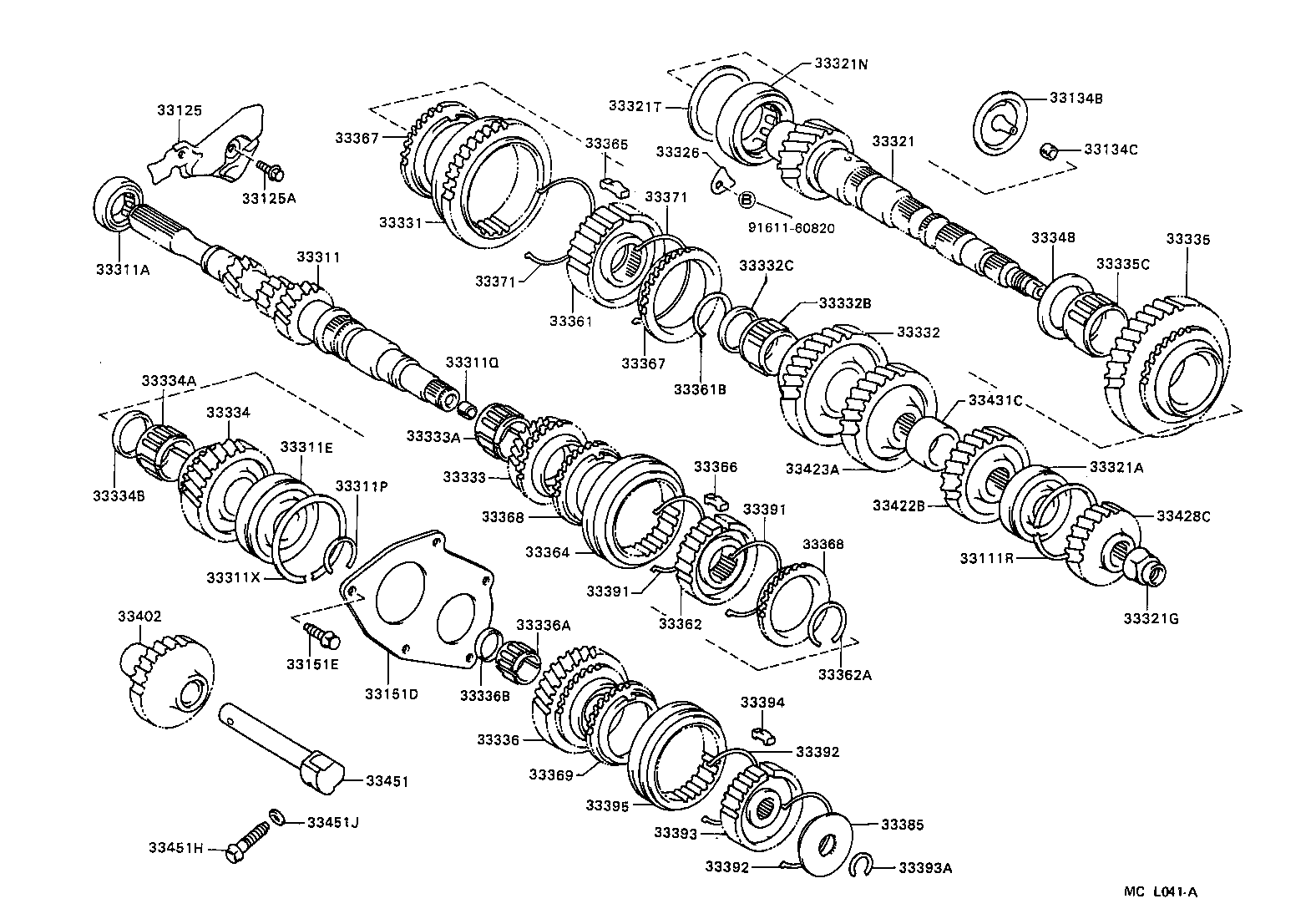

SV21-UTMMK (1988)
Toyota Camry/Vista
(9005- )CV20,SV21,22..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111R - RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90521-66004 |
CV20,SV21,22..5F |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-32011 |
CV20,SV21,22..5F |
1 | ||
| 33125-32010 |
CV20,SV21,22..5F |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-60616 |
CV20,SV21,22..5F |
2 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-32020 |
CV20,SV21,22..5F |
1 | ||
| 33134-32011 |
CV20,SV21,22..5F |
1 | ||
| 33134C - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT) | ||||
| 90254-10001 |
CV20,SV21,22..5F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-32011 |
CV20,SV21,22..5F |
1 | ||
| 33151-32012 |
CV20,SV21,22..5F |
1 | ||
| 33151E - BOLT(FOR REAR BEARING RETAINER) | ||||
| 90105-08045 |
CV20,SV21,22..5F |
5 | ||
| 90105-08237 |
CV20,SV21,22..5F |
5 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33311-32021 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30017 |
CV20,SV21,22..5F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-29006 |
CV20,SV21,22..5F |
1 | ||
| 90363-29004 |
CV20,SV21,22..5F |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-27019 |
CV20,SV21,22..5F 厚さ=2.20−2.25,ﾏｰｸ B |
1 | ||
| 90520-27021 |
CV20,SV21,22..5F 厚さ=2.30−2.35,ﾏｰｸ D |
1 | ||
| 90520-27022 |
CV20,SV21,22..5F 厚さ=2.35−2.40,ﾏｰｸ E |
1 | ||
| 90520-27018 |
CV20,SV21,22..5F 厚さ=2.15−2.20,ﾏｰｸ A |
1 | ||
| 90520-27020 |
CV20,SV21,22..5F 厚さ=2.25−2.30,ﾏｰｸ C |
1 | ||
| 33311Q - PIN, SLOTTED SPRING (FOR INPUT SHAFT) | ||||
| 90254-10002 |
CV20,SV21,22..5F |
1 | ||
| 33311X - RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90521-76001 |
CV20,SV21,22..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-32050 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33321-20090 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25037 |
CV20,SV21,22..5F |
1 | ||
| 90363-25056 |
CV20,SV21,22..5F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-18003 |
CV20,SV21,22..5F |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90365-32013 |
CV20,SV21,22..5F |
1 | ||
| 90365-32012 |
CV20,SV21,22..5F |
1 | ||
| 33326 - PLATE, BEARING LOCK | ||||
| 33326-32020 |
CV20,SV21,22..5F |
1 | ||
| 33326-32010 |
CV20,SV21,22..5F |
1 | ||
| 33326-32010 |
CV20,SV21,22..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-32020 |
CV20,SV21,22..5F |
1 | ||
| 33331-32010 |
CV20,SV21,22..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33033-32020 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-32011 |
CV20,SV21,22..5F |
1 | ||
| 90364-39013 |
CV20,SV21,22..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-32020 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33034-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-33001 |
CV20,SV21,22..5F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-32010 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33035-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-32013 |
CV20,SV21,22..5F |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-32007 |
CV20,SV21,22..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-32020 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33032-32010 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38004 |
CV20,SV21,22..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-32010 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33036-32030 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-27005 |
CV20,SV21,22..5F |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-27004 |
CV20,SV21,22..5F |
1 | ||
| 33343D - BUSH, 2ND GEAR | ||||
| 33343-32010 |
CV20,SV21,22..5F |
1 | ||
| 33343E - BALL (FOR 2ND GEAR BUSH) | ||||
| 90360-05012 |
CV20,SV21,22..5F |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-32010 |
CV20,SV21,22..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-32020 |
CV20,SV21,22..5F |
1 | ||
| 33361-32011 |
CV20,SV21,22..5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-32010 |
CV20,SV21,22..5F |
1 | ||
| 33362-32020 |
CV20,SV21,22..5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-30002 |
CV20,SV21,22..5F 厚さ=1.95−1.99,ﾏｰｸ 1 |
1 | ||
| 90520-30003 |
CV20,SV21,22..5F 厚さ=2.00−2.04,ﾏｰｸ 2 |
1 | ||
| 90520-30006 |
CV20,SV21,22..5F 厚さ=2.15−2.19,ﾏｰｸ 5 |
1 | ||
| 90520-30005 |
CV20,SV21,22..5F 厚さ=2.10−2.14,ﾏｰｸ 4 |
1 | ||
| 90520-30007 |
CV20,SV21,22..5F 厚さ=2.20−2.24,ﾏｰｸ 6 |
1 | ||
| 90520-30004 |
CV20,SV21,22..5F 厚さ=2.05−2.09,ﾏｰｸ 3 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-32011 |
CV20,SV21,22..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-32020 |
CV20,SV21,22..5F |
3 | ||
| 33365-32010 |
CV20,SV21,22..5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-32010 |
CV20,SV21,22..5F |
3 | ||
| 33366-32020 |
CV20,SV21,22..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-32010 |
CV20,SV21,22..5F |
2 | ||
| 33367-32020 |
CV20,SV21,22..5F |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-32010 |
CV20,SV21,22..5F |
2 | ||
| 33367-32020 |
CV20,SV21,22..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-32020 |
CV20,SV21,22..5F |
2 | ||
| 33367-32010 |
CV20,SV21,22..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-32020 |
CV20,SV21,22..5F |
2 | ||
| 33367-32010 |
CV20,SV21,22..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-32010 |
CV20,SV21,22..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
CV20,SV21,22..5F |
2 | ||
| 33371-32020 |
CV20,SV21,22..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
CV20,SV21,22..5F |
2 | ||
| 33371-32020 |
CV20,SV21,22..5F |
2 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-32010 |
CV20,SV21,22..5F |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-32010 |
CV20,SV21,22..5F |
2 | ||
| 33371-32011 |
CV20,SV21,22..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-32010 |
CV20,SV21,22..5F |
2 | ||
| 33371-32011 |
CV20,SV21,22..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-32011 |
CV20,SV21,22..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-32011 |
CV20,SV21,22..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-32020 |
CV20,SV21,22..5F |
1 | ||
| 33393-32010 |
CV20,SV21,22..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-20022 |
CV20,SV21,22..5F 厚さ=1.60−1.65,ﾏｰｸ 1 |
1 | ||
| 90520-20023 |
CV20,SV21,22..5F 厚さ=1.65−1.70,ﾏｰｸ 2 |
1 | ||
| 90520-20026 |
CV20,SV21,22..5F 厚さ=1.80−1.85,ﾏｰｸ 5 |
1 | ||
| 90520-20029 |
CV20,SV21,22..5F 厚さ=1.95−2.00,ﾏｰｸ 8 |
1 | ||
| 90520-20025 |
CV20,SV21,22..5F 厚さ=1.75−1.80,ﾏｰｸ 4 |
1 | ||
| 90520-20027 |
CV20,SV21,22..5F 厚さ=1.85−1.90,ﾏｰｸ 6 |
1 | ||
| 90520-20030 |
CV20,SV21,22..5F 厚さ=2.00−2.05,ﾏｰｸ 9 |
1 | ||
| 90520-20033 |
CV20,SV21,22..5F 厚さ=2.15−2.20,ﾏｰｸ 12 |
1 | ||
| 90520-20035 |
CV20,SV21,22..5F 厚さ=2.25−2.30,ﾏｰｸ 14 |
1 | ||
| 90520-20032 |
CV20,SV21,22..5F 厚さ=2.10−2.15,ﾏｰｸ 11 |
1 | ||
| 90520-20028 |
CV20,SV21,22..5F 厚さ=1.90−1.95,ﾏｰｸ 7 |
1 | ||
| 90520-20024 |
CV20,SV21,22..5F 厚さ=1.70−1.75,ﾏｰｸ 3 |
1 | ||
| 90520-20036 |
CV20,SV21,22..5F 厚さ=2.30−2.35,ﾏｰｸ 15 |
1 | ||
| 90520-20034 |
CV20,SV21,22..5F 厚さ=2.20−2.25,ﾏｰｸ 13 |
1 | ||
| 90520-20051 |
CV20,SV21,22..5F 厚さ=2.35−2.39,ﾏｰｸ 16 |
1 | ||
| 90520-20053 |
CV20,SV21,22..5F 厚さ=2.45−2.49,ﾏｰｸ 18 |
1 | ||
| 90520-20031 |
CV20,SV21,22..5F 厚さ=2.05−2.10,ﾏｰｸ 10 |
1 | ||
| 90520-20057 |
CV20,SV21,22..5F 厚さ=2.65−2.69,ﾏｰｸ 22 |
1 | ||
| 90520-20052 |
CV20,SV21,22..5F 厚さ=2.40−2.44,ﾏｰｸ 17 |
1 | ||
| 90520-20056 |
CV20,SV21,22..5F 厚さ=2.60−2.64,ﾏｰｸ 21 |
1 | ||
| 90520-20054 |
CV20,SV21,22..5F 厚さ=2.50−2.54,ﾏｰｸ 19 |
1 | ||
| 90520-20060 |
CV20,SV21,22..5F 厚さ=2.80−2.84,ﾏｰｸ 25 |
1 | ||
| 90520-20058 |
CV20,SV21,22..5F 厚さ=2.70−2.74,ﾏｰｸ 23 |
1 | ||
| 90520-20059 |
CV20,SV21,22..5F 厚さ=2.75−2.79,ﾏｰｸ 24 |
1 | ||
| 90520-20055 |
CV20,SV21,22..5F 厚さ=2.55−2.59,ﾏｰｸ 20 |
1 | ||
| 90520-20062 |
CV20,SV21,22..5F 厚さ=2.90−2.94,ﾏｰｸ 27 |
1 | ||
| 90520-20061 |
CV20,SV21,22..5F 厚さ=2.85−2.89,ﾏｰｸ 26 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33366-32010 |
CV20,SV21,22..5F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-32010 |
CV20,SV21,22..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-32020 |
CV20,SV21,22..5F |
1 | ||
| 33402-32010 |
CV20,SV21,22..5F |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-32011 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33422-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33423-32020 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33428-32010 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-32020 |
CV20,SV21,22..5F |
1 | ||
| 33431-32010 |
CV20,SV21,22..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-32010 |
CV20,SV21,22..5F |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08041 |
CV20,SV21,22..5F |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90430-08006 |
CV20,SV21,22..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-32010 |
CV20,SV21,22..5F |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
(8808-9005)CV20,SV21,22..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111R - RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90521-66004 |
CV20,SV21,22..5F |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-32011 |
CV20,SV21,22..5F |
1 | ||
| 33125-32010 |
CV20,SV21,22..5F |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-60616 |
CV20,SV21,22..5F |
2 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-32020 |
CV20,SV21,22..5F |
1 | ||
| 33134-32011 |
CV20,SV21,22..5F |
1 | ||
| 33134C - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT) | ||||
| 90254-10001 |
CV20,SV21,22..5F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-32011 |
CV20,SV21,22..5F |
1 | ||
| 33151-32012 |
CV20,SV21,22..5F |
1 | ||
| 33151E - BOLT(FOR REAR BEARING RETAINER) | ||||
| 90105-08045 |
CV20,SV21,22..5F |
5 | ||
| 90105-08237 |
CV20,SV21,22..5F |
5 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33311-32021 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30017 |
CV20,SV21,22..5F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-29006 |
CV20,SV21,22..5F |
1 | ||
| 90363-29004 |
CV20,SV21,22..5F |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-27019 |
CV20,SV21,22..5F 厚さ=2.20−2.25,ﾏｰｸ B |
1 | ||
| 90520-27021 |
CV20,SV21,22..5F 厚さ=2.30−2.35,ﾏｰｸ D |
1 | ||
| 90520-27022 |
CV20,SV21,22..5F 厚さ=2.35−2.40,ﾏｰｸ E |
1 | ||
| 90520-27018 |
CV20,SV21,22..5F 厚さ=2.15−2.20,ﾏｰｸ A |
1 | ||
| 90520-27020 |
CV20,SV21,22..5F 厚さ=2.25−2.30,ﾏｰｸ C |
1 | ||
| 33311Q - PIN, SLOTTED SPRING (FOR INPUT SHAFT) | ||||
| 90254-10002 |
CV20,SV21,22..5F |
1 | ||
| 33311X - RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90521-76001 |
CV20,SV21,22..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-32050 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33321-20090 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25037 |
CV20,SV21,22..5F |
1 | ||
| 90363-25056 |
CV20,SV21,22..5F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-18003 |
CV20,SV21,22..5F |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90365-32013 |
CV20,SV21,22..5F |
1 | ||
| 90365-32012 |
CV20,SV21,22..5F |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-48002 |
CV20,SV21,22..5F |
1 | ||
| 33326 - PLATE, BEARING LOCK | ||||
| 33326-32020 |
CV20,SV21,22..5F |
1 | ||
| 33326-32010 |
CV20,SV21,22..5F |
1 | ||
| 33326-32010 |
CV20,SV21,22..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-32020 |
CV20,SV21,22..5F |
1 | ||
| 33331-32010 |
CV20,SV21,22..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33033-32020 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-32011 |
CV20,SV21,22..5F |
1 | ||
| 90364-39013 |
CV20,SV21,22..5F |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-32006 |
CV20,SV21,22..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-32020 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33034-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-33001 |
CV20,SV21,22..5F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-32010 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33035-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-32013 |
CV20,SV21,22..5F |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-32007 |
CV20,SV21,22..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-32020 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33032-32010 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38004 |
CV20,SV21,22..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-32010 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33036-32030 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-27005 |
CV20,SV21,22..5F |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-27004 |
CV20,SV21,22..5F |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-32010 |
CV20,SV21,22..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-32020 |
CV20,SV21,22..5F |
1 | ||
| 33361-32011 |
CV20,SV21,22..5F |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-29012 |
CV20,SV21,22..5F 厚さ=2.50−2.55,ﾏｰｸ 1 |
1 | ||
| 90520-29015 |
CV20,SV21,22..5F 厚さ=2.65−2.70,ﾏｰｸ 4 |
1 | ||
| 90520-29016 |
CV20,SV21,22..5F 厚さ=2.70−2.75,ﾏｰｸ 5 |
1 | ||
| 90520-29014 |
CV20,SV21,22..5F 厚さ=2.60−2.65,ﾏｰｸ 3 |
1 | ||
| 90520-29013 |
CV20,SV21,22..5F 厚さ=2.55−2.60,ﾏｰｸ 2 |
1 | ||
| 90520-29017 |
CV20,SV21,22..5F 厚さ=2.75−2.80,ﾏｰｸ 6 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-32010 |
CV20,SV21,22..5F |
1 | ||
| 33362-32020 |
CV20,SV21,22..5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-30002 |
CV20,SV21,22..5F 厚さ=1.95−1.99,ﾏｰｸ 1 |
1 | ||
| 90520-30003 |
CV20,SV21,22..5F 厚さ=2.00−2.04,ﾏｰｸ 2 |
1 | ||
| 90520-30006 |
CV20,SV21,22..5F 厚さ=2.15−2.19,ﾏｰｸ 5 |
1 | ||
| 90520-30005 |
CV20,SV21,22..5F 厚さ=2.10−2.14,ﾏｰｸ 4 |
1 | ||
| 90520-30007 |
CV20,SV21,22..5F 厚さ=2.20−2.24,ﾏｰｸ 6 |
1 | ||
| 90520-30004 |
CV20,SV21,22..5F 厚さ=2.05−2.09,ﾏｰｸ 3 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-32011 |
CV20,SV21,22..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-32020 |
CV20,SV21,22..5F |
3 | ||
| 33365-32010 |
CV20,SV21,22..5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-32010 |
CV20,SV21,22..5F |
3 | ||
| 33366-32020 |
CV20,SV21,22..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-32010 |
CV20,SV21,22..5F |
2 | ||
| 33367-32020 |
CV20,SV21,22..5F |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-32010 |
CV20,SV21,22..5F |
2 | ||
| 33367-32020 |
CV20,SV21,22..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-32020 |
CV20,SV21,22..5F |
2 | ||
| 33367-32010 |
CV20,SV21,22..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-32020 |
CV20,SV21,22..5F |
2 | ||
| 33367-32010 |
CV20,SV21,22..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-32010 |
CV20,SV21,22..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
CV20,SV21,22..5F |
2 | ||
| 33371-32020 |
CV20,SV21,22..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
CV20,SV21,22..5F |
2 | ||
| 33371-32020 |
CV20,SV21,22..5F |
2 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-32010 |
CV20,SV21,22..5F |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-32010 |
CV20,SV21,22..5F |
2 | ||
| 33371-32011 |
CV20,SV21,22..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-32010 |
CV20,SV21,22..5F |
2 | ||
| 33371-32011 |
CV20,SV21,22..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-32011 |
CV20,SV21,22..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-32011 |
CV20,SV21,22..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-32020 |
CV20,SV21,22..5F |
1 | ||
| 33393-32010 |
CV20,SV21,22..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-20022 |
CV20,SV21,22..5F 厚さ=1.60−1.65,ﾏｰｸ 1 |
1 | ||
| 90520-20023 |
CV20,SV21,22..5F 厚さ=1.65−1.70,ﾏｰｸ 2 |
1 | ||
| 90520-20026 |
CV20,SV21,22..5F 厚さ=1.80−1.85,ﾏｰｸ 5 |
1 | ||
| 90520-20029 |
CV20,SV21,22..5F 厚さ=1.95−2.00,ﾏｰｸ 8 |
1 | ||
| 90520-20025 |
CV20,SV21,22..5F 厚さ=1.75−1.80,ﾏｰｸ 4 |
1 | ||
| 90520-20027 |
CV20,SV21,22..5F 厚さ=1.85−1.90,ﾏｰｸ 6 |
1 | ||
| 90520-20030 |
CV20,SV21,22..5F 厚さ=2.00−2.05,ﾏｰｸ 9 |
1 | ||
| 90520-20033 |
CV20,SV21,22..5F 厚さ=2.15−2.20,ﾏｰｸ 12 |
1 | ||
| 90520-20035 |
CV20,SV21,22..5F 厚さ=2.25−2.30,ﾏｰｸ 14 |
1 | ||
| 90520-20032 |
CV20,SV21,22..5F 厚さ=2.10−2.15,ﾏｰｸ 11 |
1 | ||
| 90520-20028 |
CV20,SV21,22..5F 厚さ=1.90−1.95,ﾏｰｸ 7 |
1 | ||
| 90520-20024 |
CV20,SV21,22..5F 厚さ=1.70−1.75,ﾏｰｸ 3 |
1 | ||
| 90520-20036 |
CV20,SV21,22..5F 厚さ=2.30−2.35,ﾏｰｸ 15 |
1 | ||
| 90520-20034 |
CV20,SV21,22..5F 厚さ=2.20−2.25,ﾏｰｸ 13 |
1 | ||
| 90520-20051 |
CV20,SV21,22..5F 厚さ=2.35−2.39,ﾏｰｸ 16 |
1 | ||
| 90520-20053 |
CV20,SV21,22..5F 厚さ=2.45−2.49,ﾏｰｸ 18 |
1 | ||
| 90520-20031 |
CV20,SV21,22..5F 厚さ=2.05−2.10,ﾏｰｸ 10 |
1 | ||
| 90520-20057 |
CV20,SV21,22..5F 厚さ=2.65−2.69,ﾏｰｸ 22 |
1 | ||
| 90520-20052 |
CV20,SV21,22..5F 厚さ=2.40−2.44,ﾏｰｸ 17 |
1 | ||
| 90520-20056 |
CV20,SV21,22..5F 厚さ=2.60−2.64,ﾏｰｸ 21 |
1 | ||
| 90520-20054 |
CV20,SV21,22..5F 厚さ=2.50−2.54,ﾏｰｸ 19 |
1 | ||
| 90520-20060 |
CV20,SV21,22..5F 厚さ=2.80−2.84,ﾏｰｸ 25 |
1 | ||
| 90520-20058 |
CV20,SV21,22..5F 厚さ=2.70−2.74,ﾏｰｸ 23 |
1 | ||
| 90520-20059 |
CV20,SV21,22..5F 厚さ=2.75−2.79,ﾏｰｸ 24 |
1 | ||
| 90520-20055 |
CV20,SV21,22..5F 厚さ=2.55−2.59,ﾏｰｸ 20 |
1 | ||
| 90520-20062 |
CV20,SV21,22..5F 厚さ=2.90−2.94,ﾏｰｸ 27 |
1 | ||
| 90520-20061 |
CV20,SV21,22..5F 厚さ=2.85−2.89,ﾏｰｸ 26 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33366-32010 |
CV20,SV21,22..5F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-32010 |
CV20,SV21,22..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-32020 |
CV20,SV21,22..5F |
1 | ||
| 33402-32010 |
CV20,SV21,22..5F |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-32011 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33422-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33423-32020 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-32040 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33428-32010 |
CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-32020 |
CV20,SV21,22..5F |
1 | ||
| 33431-32010 |
CV20,SV21,22..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-32010 |
CV20,SV21,22..5F |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08041 |
CV20,SV21,22..5F |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90430-08006 |
CV20,SV21,22..5F |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
