SV21-UTMGK (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )HT

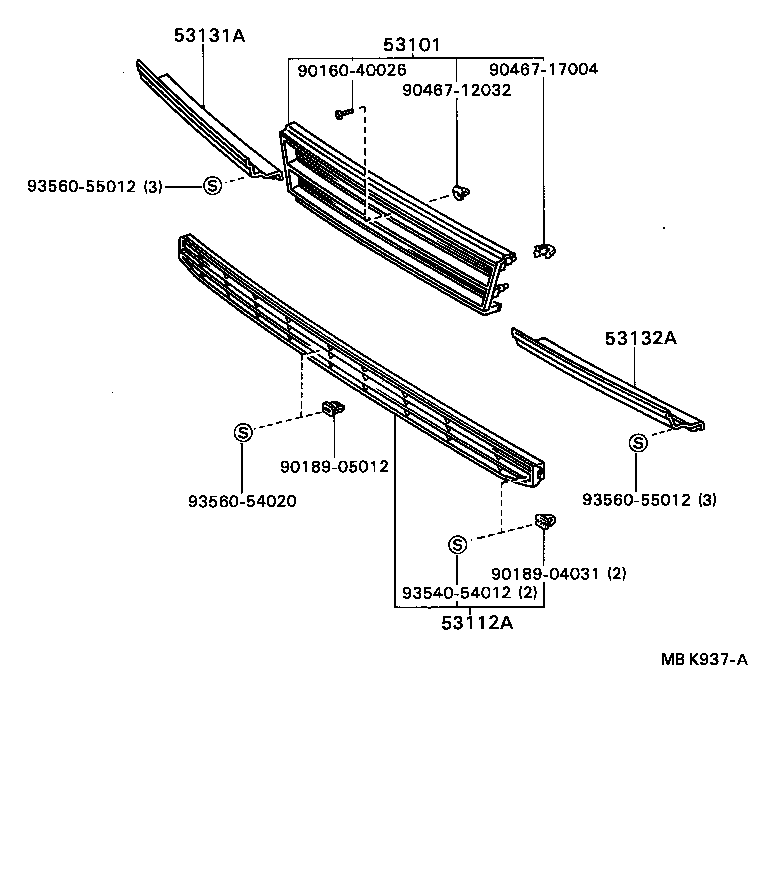

Click highlighted areas on diagram

diagram 53101 53112A 53131A 53132A 9016040026 9018904031 9018905012 9046712032 9046717004 9354054012 9356054020 9356055012 9356055012
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-32120

SV2#..HT

 1
53112A - GRILLE, RADIATOR, LOWER
53112-32020

SV2#..HT

 1
53112-32060

SV21..HT..VX

VX ﾘﾐﾃﾂﾄﾞ

 1
53131A - DOOR, HEADLAMP, RH
53131-32080

SV2#..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-32090

SV2#..HT

 1
Common parts
90160-40026
90189-04031
90189-05012
90467-12032
90467-17004
93540-54012
93560-54020
93560-55012
