SV21-UEPMK (1988)
Toyota Camry/Vista

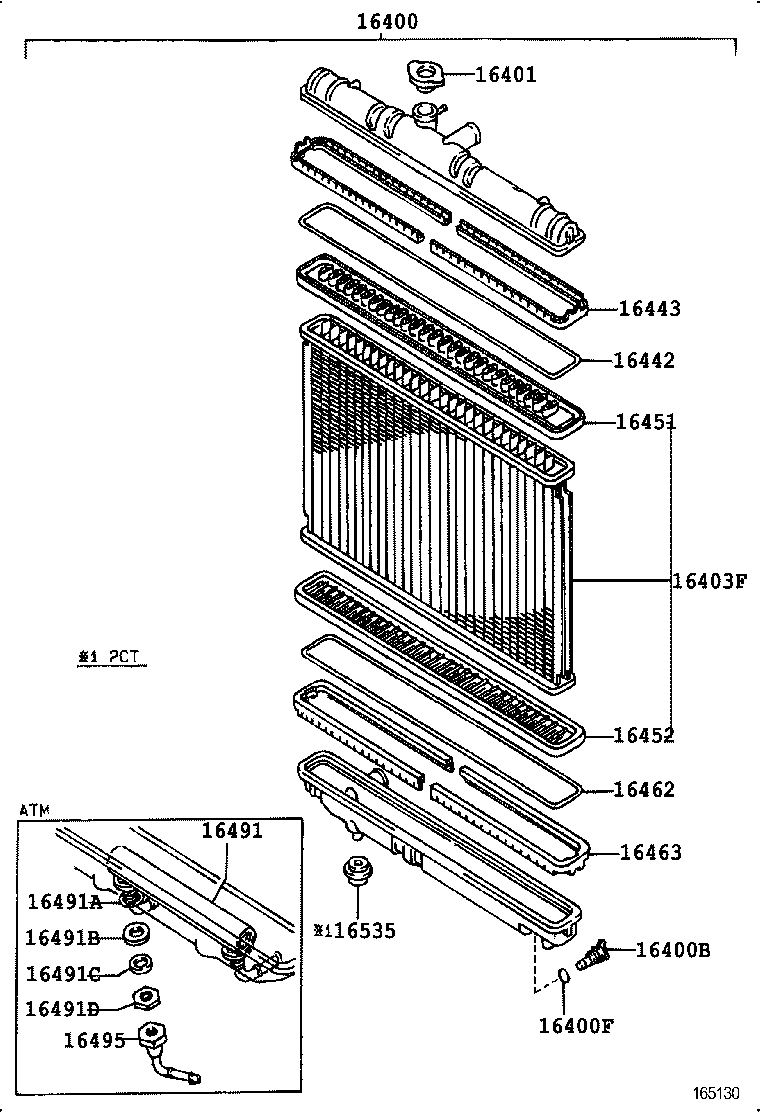

ILLUST NO. 2 OF 2(8808- )3S#,4SFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-74450 |
3S#,4SFI..SV21,22..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3SFE..SV21..5F..LUM;3SFE,4SFI..SV21,22..4FC;3S#..SV21,25..GT,VL,VR,XT,ZE |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3SFE..SV21..5F..LUM;3SFE,4SFI..SV21,22..4FC;3S#..SV21,25..GT,VL,VR,XT,ZE |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3S#,4SFI..SV2# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-74130 |
3SFE..SV21..5F..LUM;3S#,4SFI..SV21,22..4FC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-63030 |
3SGE..SV21;3SFE,4SFI..SV21,22..4FC;3SFE..SV21,25..5F..(LUM,VL,VR,XT,ZE) |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15321 |
3SGE..SV21;3SFE,4SFI..SV21,22..4FC;3SFE..SV21,25..5F..(LUM,VL,VR,XT,ZE) |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-63030 |
3SGE..SV21;3SFE,4SFI..SV21,22..4FC;3SFE..SV21,25..5F..(LUM,VL,VR,XT,ZE) |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
3SGE..SV21;3SFE,4SFI..SV21,22..4FC;3SFE..SV21,25..5F..(LUM,VL,VR,XT,ZE) |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
3SFE..SV21..5F..LUM;3SFE,4SFI..SV21,22..4FC;3S#..SV21,25..GT,VL,VR,XT,ZE |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
3SFE..SV21..5F..LUM;3SFE,4SFI..SV21,22..4FC;3S#..SV21,25..GT,VL,VR,XT,ZE |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-74130 |
3S#,4SFI..SV21,22..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
3S#,4SFI..SV2#..4FC |
2 | ||
| 16492-35080 |
3S#,4SFI..SV2#..4FC |
2 | ||
| 16492-62060 |
3S#,4SFI..SV2#..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-15130 |
3S#,4SFI..SV2#..4FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-15130 |
3S#,4SFI..SV2#..4FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15130 |
3S#,4SFI..SV2#..4FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-74070 |
3S#,4SFI..SV21,22..4FC |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74030 |
3SFE..SV25..5F;3S#,4SFI..SV21,22 |
2 | ||

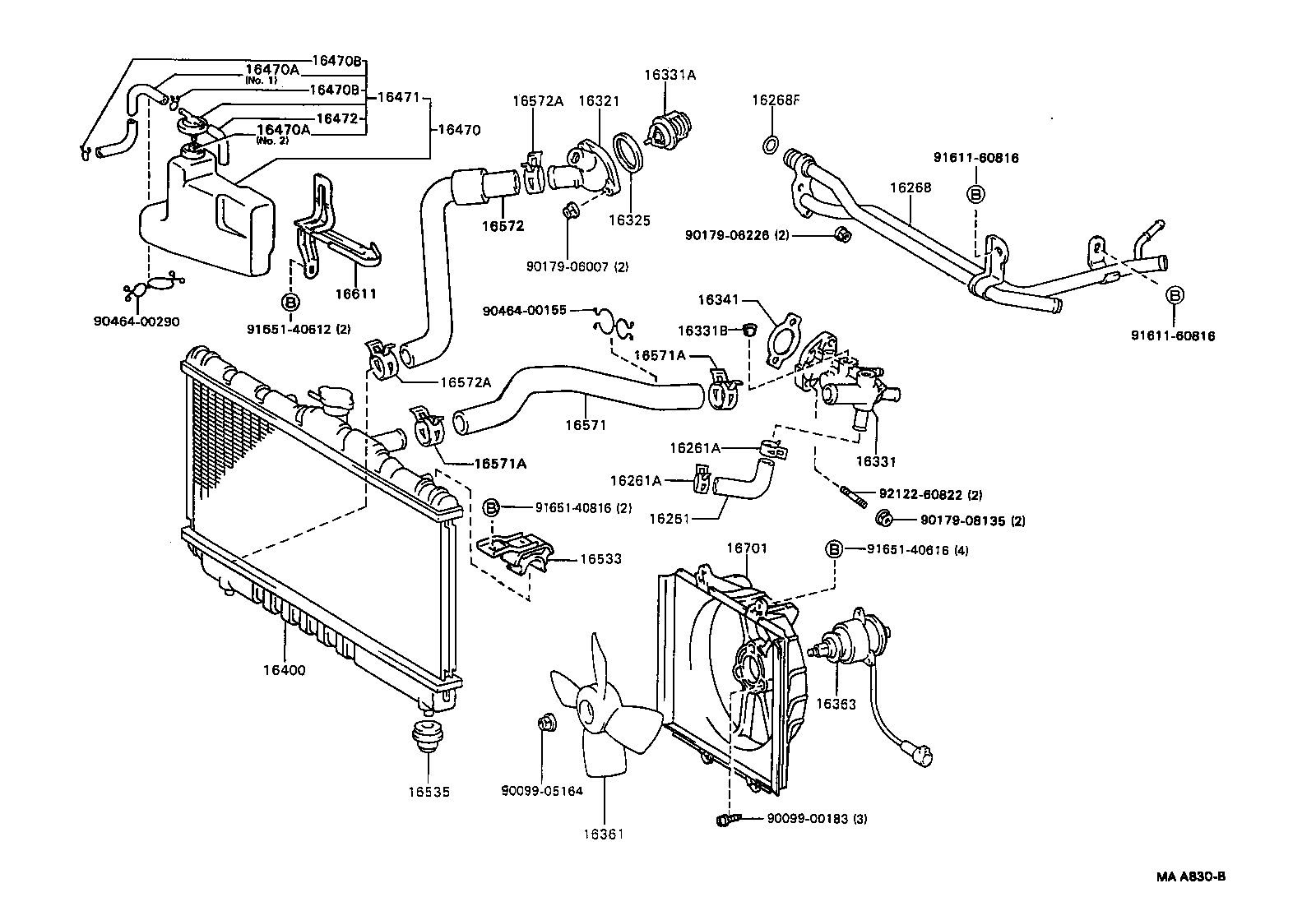

ILLUST NO. 1 OF 2(8808- )3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74010 |
3SFE..SV21,25 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3S#,4SFI..SV2# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3S#,4SFI..SV2# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74010 |
3SFE..SV21,25 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3S#,4SFI..SV2# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-88360 |
3S#,4SFI..SV2# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
3S#,4SFI..SV2# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-74030 |
3SFE..SV21,25 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3S#,4SFI..SV2# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53007 |
3SFE..SV21,25 |
3 | ||
| 90345-53009 |
3SFE..SV21,25 |
3 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-63010 |
3S#,4SFI..SV2# |
1 | ||
| 16341-63011 |
3S#,4SFI..SV2# |
1 | ||
| 16361 - FAN | ||||
| 16361-64010 |
3S#,4SFI..SV2#..4FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16010 |
3S#,4SFI..SV2#..4FC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74450 |
3S#,4SFI..SV21,22..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74041 |
3S#,4SFI..SV2# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3S#,4SFI..SV2# 長さ=600,NO.2 |
1 | ||
| 90445-12078 |
3S#,4SFI..SV2# 長さ=600,NO.2 |
1 | ||
| 90445-12078 |
3S#,4SFI..SV2# 長さ=600,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3S#,4SFI..SV2# 長さ=600,NO.2 |
1 | ||
| 90445-12078 |
3S#,4SFI..SV2# 長さ=600,NO.2 |
1 | ||
| 90445-12078 |
3S#,4SFI..SV2# 長さ=600,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,4SFI..SV2# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,4SFI..SV2# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74031 |
3S#,4SFI..SV2# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
3S#,4SFI..SV2# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74040 |
3SFE..SV25..5F;3S#,4SFI..SV21,22 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74030 |
3SFE..SV25..5F;3S#,4SFI..SV21,22 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74050 |
3S#,4SFI..SV2# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
3S#,4SFI..SV2# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
3S#,4SFI..SV2# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74050 |
3SFE,4SFI..SV2# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
3S#,4SFI..SV2# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
3S#,4SFI..SV2# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74030 |
3S#,4SFI..SV2# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74110 |
3S#,4SFI..SV2#..4FC |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90179-06007 | ||||
| 90179-06226 | ||||
| 90179-08135 | ||||
| 90464-00155 | ||||
| 90464-00290 | ||||
| 91611-60816 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 92122-60822 | ||||
