SV21-UEPMK (1986)
Toyota Camry/Vista

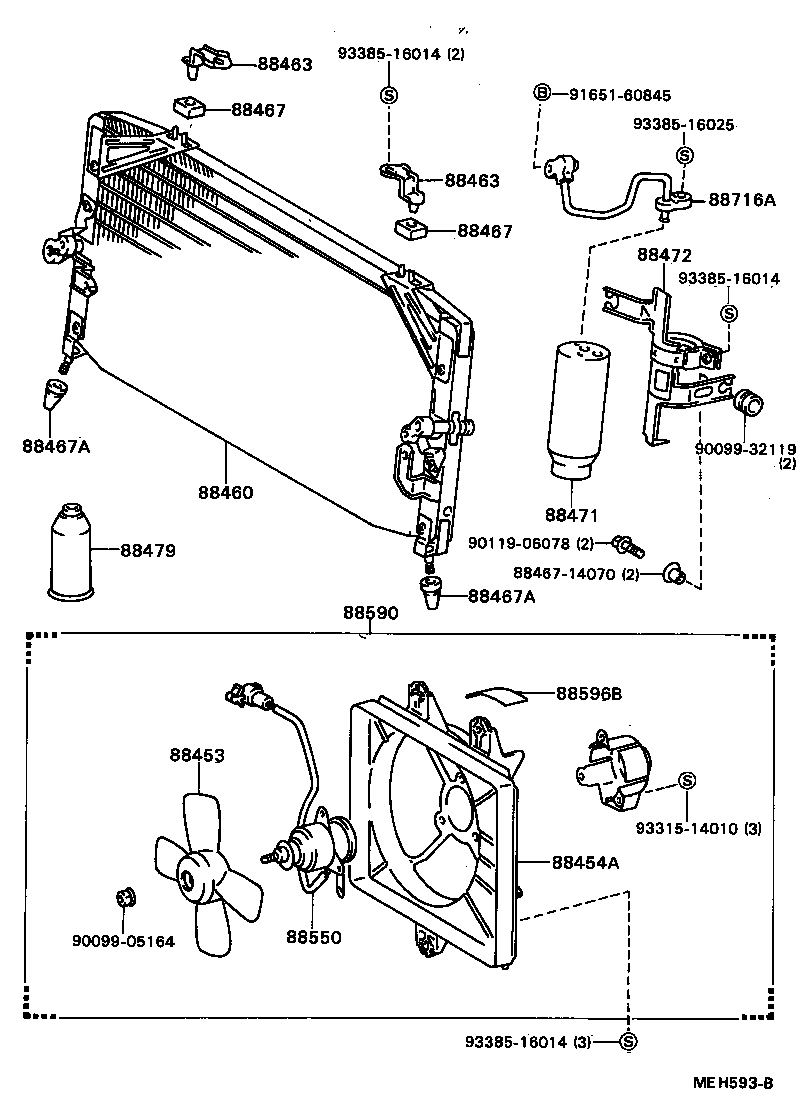

ILLUST NO. 1 OF 2(8608- )SV2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-32030 |
SV2# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-32040 |
SV2# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-32070 |
SV2# |
1 | ||
| 88460-32070 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88460-32070 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-32020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
2 | ||
| 88463-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 88463-32020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-32020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
2 | ||
| 88463-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 88463-32020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-32030 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
2 | ||
| 88467-32030 |
CV20,SV2# |
2 | ||
| 88467-32030 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-32030 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
2 | ||
| 88467-32030 |
CV20,SV2# |
2 | ||
| 88467-32030 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-32020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
2 | ||
| 88467-32020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
2 | ||
| 88467-32020 |
CV20,SV2# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-32020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
2 | ||
| 88467-32020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
2 | ||
| 88467-32020 |
CV20,SV2# |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-10030 |
CV20,SV2#,VZV20 |
1 | ||
| 88471-10030 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88471-10030 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 88473-32020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88473-32020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
CV20,SV2# 400G |
2 | ||
| 90986-02001 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT 400G |
2 | ||
| 90986-02001 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-32050 |
SV2# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-32100 |
SV21,25 |
1 | ||
| 88590-32100 |
SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88590-32100 |
SV21 |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
SV2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-32230 |
CV20,SV2#,VZV20 |
1 | ||
| 88716-32230 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88716-32230 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 90099-05164 | ||||
| 90099-32119 | ||||
| 90119-06078 | ||||
| 91651-60845 | ||||
| 93315-14010 | ||||
| 93385-16014 | ||||
| 93385-16025 | ||||

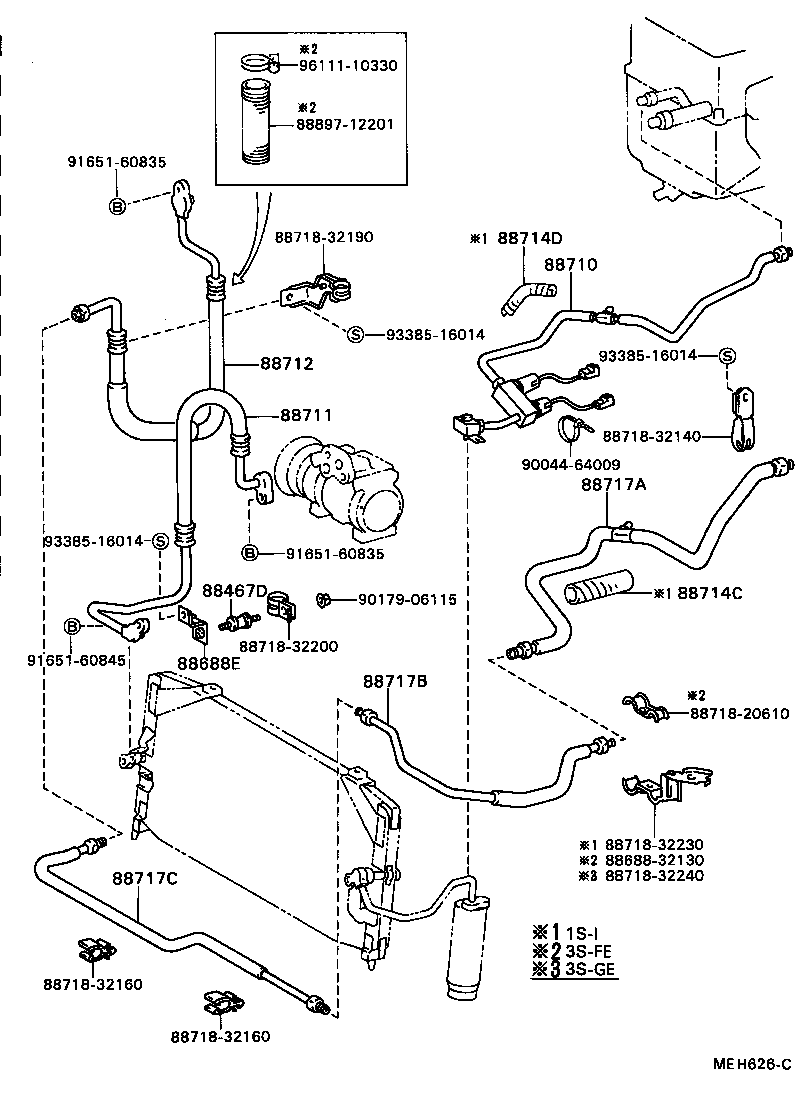

ILLUST NO. 2 OF 2(8608- )SV2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-14040 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88467-14040 |
CV20,SV2# |
1 | ||
| 88467-14040 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-32140 |
CV20,SV2# |
1 | ||
| 88688-32140 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88688-32140 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-32020 |
SV21..VE,VX,ZT,ZX |
1 | ||
| 88710-32021 |
SV21..VE,VX,ZT,ZX |
1 | ||
| 88710-32021 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 88710-32021 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-32070 |
CV20,SV2# |
1 | ||
| 88711-32070 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88711-32070 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-32120 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88712-32120 |
CV20,SV2# |
1 | ||
| 88712-32120 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-32180 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 88717-32180 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88717-32180 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-32190 |
CV20,SV2# |
1 | ||
| 88717-32190 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88717-32190 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-32200 |
CV20,SV2# |
1 | ||
| 88717-32200 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88717-32200 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| Common parts | ||||
| 88688-32130 | ||||
| 88718-20610 | ||||
| 88718-32140 | ||||
| 88718-32160 | ||||
| 88718-32190 | ||||
| 88718-32200 | ||||
| 88718-32230 | ||||
| 88718-32240 | ||||
| 88897-12201 | ||||
| 90044-64009 | ||||
| 90179-06115 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 93385-16014 | ||||
| 96111-10330 | ||||
