SV21-UEPMK (1986)
Toyota Camry/Vista

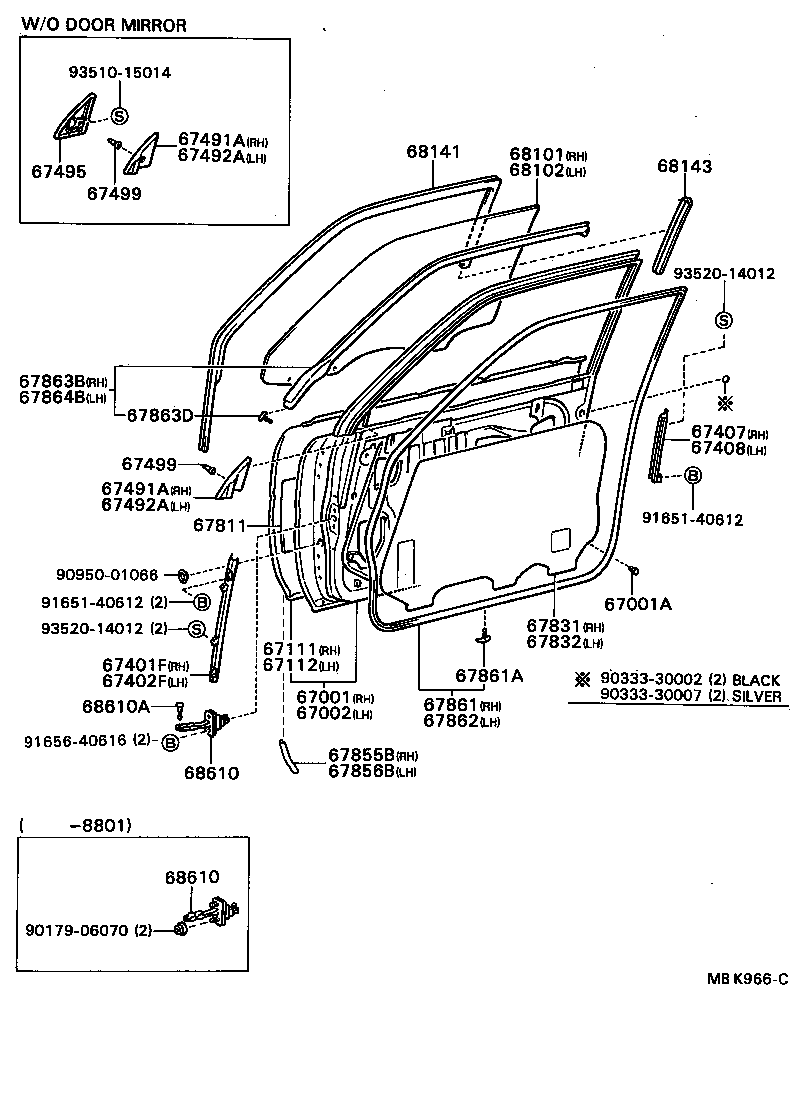

ILLUST NO. 1 OF 2(8608- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-32200 |
CV20,SV2#..SED..(GT,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
1 | ||
| 67001-32220 |
CV20,SV2#..SED W/O DOOR MIRROR |
1 | ||
| 67001-32200 |
CV20,SV2#..SED..(GT,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 67001-32220 |
CV20,SV2#..SED..(GT,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV20,SV2#,VZV20..SED |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-32190 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 67002-32230 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR |
1 | ||
| 67002-32190 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
1 | ||
| 67002-32230 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32040 |
CV20,SV2#,VZV20..SED |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32040 |
CV20,SV2#,VZV20..SED |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-32070 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR |
1 | ||
| 67401-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 67401-32080 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
1 | ||
| 67401-32080 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 67402-32080 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 67402-32070 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR |
1 | ||
| 67402-32080 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-32020 |
CV20,SV2#,VZV20..SED |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-32020 |
CV20,SV2#,VZV20..SED |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32060 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR |
1 | ||
| 67491-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 67491-32060 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 67491-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32060 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR |
1 | ||
| 67491-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 67491-32060 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 67491-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
1 | ||
| 67492-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 67492-32060 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 67492-32060 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
1 | ||
| 67492-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 67492-32060 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 67492-32060 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-32030 |
CV20,SV2#,VZV20..SED RH |
1 | ||
| 67496-32030 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 左側 |
1 | ||
| 67496-32030 |
CV20,SV2#,VZV20..SED LH |
1 | ||
| 67495-32030 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 右側 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
CV20,SV2#,VZV20..SED |
2 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
CV20,SV2#,VZV20..SED |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
CV20,SV2#,VZV20 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32050 |
CV20,SV2#,VZV20..SED |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32050 |
CV20,SV2#,VZV20..SED |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32090 |
CV20,SV2#,VZV20..SED |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
CV20,SV2#,VZV20..SED 右側 |
21 | ||
| 67868-30040 |
CV20,SV2#,VZV20..SED RH |
21 | ||
| 67868-32010 |
CV20,SV2#,VZV20..SED 左側 |
21 | ||
| 67868-32010 |
CV20,SV2#,VZV20..SED LH |
21 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32090 |
CV20,SV2#,VZV20..SED |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-32010 |
CV20,SV2#,VZV20..SED |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67868-22010 |
CV20,SV2#,VZV20..SED 左側 |
2 | ||
| 67868-30040 |
CV20,SV2#,VZV20..SED RH |
2 | ||
| 67868-22010 |
CV20,SV2#,VZV20..SED LH |
2 | ||
| 67868-30040 |
CV20,SV2#,VZV20..SED 右側 |
2 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-32010 |
CV20,SV2#,VZV20..SED |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-32090 |
CV20,SV2#,VZV20..SED *TT,厚さ=4.0,ﾌﾞﾙｰ,W/O *DM,*TT,T=4.0 |
1 | ||
| 68111-32110 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,W/O *DM,BRONZE,*TT,T=4.0 |
1 | ||
| 68111-32120 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,W/*DM,BRONZE,*TT,T=4.0 |
1 | ||
| 68111-32110 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 68111-32120 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-32110 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 68111-32090 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾙｰ,ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 68111-32100 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾙｰ,W/*DM,*TT,T=4.0 |
1 | ||
| 68111-32120 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-32100 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-32110 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,W/O *DM,BRONZE,*TT,T=4.0 |
1 | ||
| 68112-32090 |
CV20,SV2#,VZV20..SED *TT,厚さ=4.0,ﾌﾞﾙｰ,W/O *DM,*TT,T=4.0 |
1 | ||
| 68112-32100 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾙｰ,W/*DM,*TT,T=4.0 |
1 | ||
| 68112-32120 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,W/*DM,BRONZE,*TT,T=4.0 |
1 | ||
| 68112-32110 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 68112-32100 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68112-32120 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68112-32090 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾙｰ,ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 68112-32110 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)) |
1 | ||
| 68112-32120 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68151-32010 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR,LH |
1 | ||
| 68141-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 右側 |
1 | ||
| 68151-32010 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 左側 |
1 | ||
| 68141-32080 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR,RH |
1 | ||
| 68141-32080 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),右側 |
1 | ||
| 68151-32020 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR,LH |
1 | ||
| 68151-32020 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),左側 |
1 | ||
| 68141-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR,RH |
1 | ||
| 68143 - RUN, FRONT DOOR GLASS, LOWER | ||||
| 68143-32040 |
CV20,SV2#,VZV20..SED |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32041 |
CV20,SV2#,VZV20 |
2 | ||
| 68610-32040 |
CV20,SV2#,VZV20 |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32041 |
CV20,SV2#,VZV20 |
2 | ||
| 68610-32040 |
CV20,SV2#,VZV20 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-32010 |
CV20,SV2#,VZV20 |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90333-30007 | ||||
| 90950-01066 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93510-15014 | ||||
| 93520-14012 | ||||
ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3259004 |
SV2#..SED..(VE,ZT) W/*FM,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-3259005 |
SV2#..SED..(VE,ZT) W/*FM,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-3259002 |
SV2#..SED..(VE,ZT) W/*FM,MAROON,MAROON,TRIM3# |
1 | ||
| 67610-3264004 |
SV2#..SED..(VE,ZT) W/*DM,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-3264002 |
SV2#..SED..(VE,ZT) W/*DM,MAROON,MAROON,TRIM3# |
1 | ||
| 67610-3264005 |
SV2#..SED..(VE,ZT) W/*DM,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-3259005 |
SV20,21..SED..(VE,ZT) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),DARK BEIGE,TRIM4# |
1 | ||
| 67610-3259002 |
SV20,21..SED..(VE,ZT) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),MAROON,TRIM3# |
1 | ||
| 67610-3259004 |
SV20,21..SED..(VE,ZT) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),DARK BLUE,TRIM8# |
1 | ||
| 67610-3264004 |
SV20,21..SED..(VE,ZT) DARK BLUE,TRIM8# |
1 | ||
| 67610-3264002 |
SV20,21..SED..(VE,ZT) MAROON,TRIM3# |
1 | ||
| 67610-3264005 |
SV20,21..SED..(VE,ZT) DARK BEIGE,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-32060 |
CV20,SV2#,VZV20 TYPE C |
2 | ||
| 67771-14040 |
CV20,SV2# |
14 | ||
| 67771-14040 |
CV20,SV2#,VZV20..SED ﾀｲﾌﾟ A |
4 | ||
| 67771-14040 |
CV20,SV2#,VZV20..SED ﾀｲﾌﾟ A |
8 | ||
| 67771-14030 |
CV20,SV2#,VZV20 TYPE B |
4 | ||
| 67771-32060 |
CV20,SV2#,VZV20..SED ﾀｲﾌﾟ C |
1 | ||
| 67771-14040 |
CV20,SV2#,VZV20 ﾀｲﾌﾟ A |
8 | ||
| 67771-14030 |
CV20,SV2#,VZV20..SED ﾀｲﾌﾟ B |
2 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000202 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
4 | ||
| 90339-1000202 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
4 | ||
| 90339-1000205 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000204 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
4 | ||
| 90339-1000205 |
CV20,SV2# DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000204 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3248002 |
CV20,SV2#..SED..(VE,ZT) W/*FM,MAROON,MAROON,TRIM3# |
1 | ||
| 67620-3248004 |
CV20,SV2#..SED..(VE,ZT) W/*FM,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-3248005 |
CV20,SV2#..SED..(VE,ZT) W/*FM,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-3253002 |
CV20,SV2#..SED..(VE,ZT) W/*DM,MAROON,MAROON,TRIM3# |
1 | ||
| 67620-3253004 |
CV20,SV2#..SED..(VE,ZT) W/*DM,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-3253005 |
CV20,SV2#..SED..(VE,ZT) W/*DM,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-3248005 |
CV20,SV20,21..SED..(VE,ZT) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),DARK BEIGE,TRIM4# |
1 | ||
| 67620-3248004 |
CV20,SV20,21..SED..(VE,ZT) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),DARK BLUE,TRIM8# |
1 | ||
| 67620-3248002 |
CV20,SV20,21..SED..(VE,ZT) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ)),MAROON,TRIM3# |
1 | ||
| 67620-3253002 |
CV20,SV20,21..SED..(VE,ZT) MAROON,TRIM3# |
1 | ||
| 67620-3253005 |
CV20,SV20,21..SED..(VE,ZT) DARK BEIGE,TRIM4# |
1 | ||
| 67620-3253004 |
CV20,SV20,21..SED..(VE,ZT) DARK BLUE,TRIM8# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-3201002 |
CV20,SV2#,VZV20..SED MAROON,MAROON,TRIM3# |
2 | ||
| 69751-3201004 |
CV20,SV2#,VZV20..SED BLUE,DARK BLUE,TRIM8# |
2 | ||
| 69751-3201005 |
CV20,SV2#..SED BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 69751-3201002 |
CV20,SV2#,VZV20..SED MAROON,TRIM3# |
1 | ||
| 69751-3201005 |
CV20,SV2#..SED DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201004 |
CV20,SV2#,VZV20..SED DARK BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32050 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR,RH |
1 | ||
| 68220-32060 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/O DOOR MIRROR,LH |
1 | ||
| 68170-32040 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
2 | ||
| 68170-32040 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/DOOR MIRROR |
2 | ||
| 68220-32060 |
CV20,SV2#,VZV20..SED W/O DOOR MIRROR,LH |
1 | ||
| 68170-32050 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) W/O DOOR MIRROR,RH |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90189-04012 | ||||
| 90189-06024 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
