SV21-UEPGK (1986)
Toyota Camry/Vista

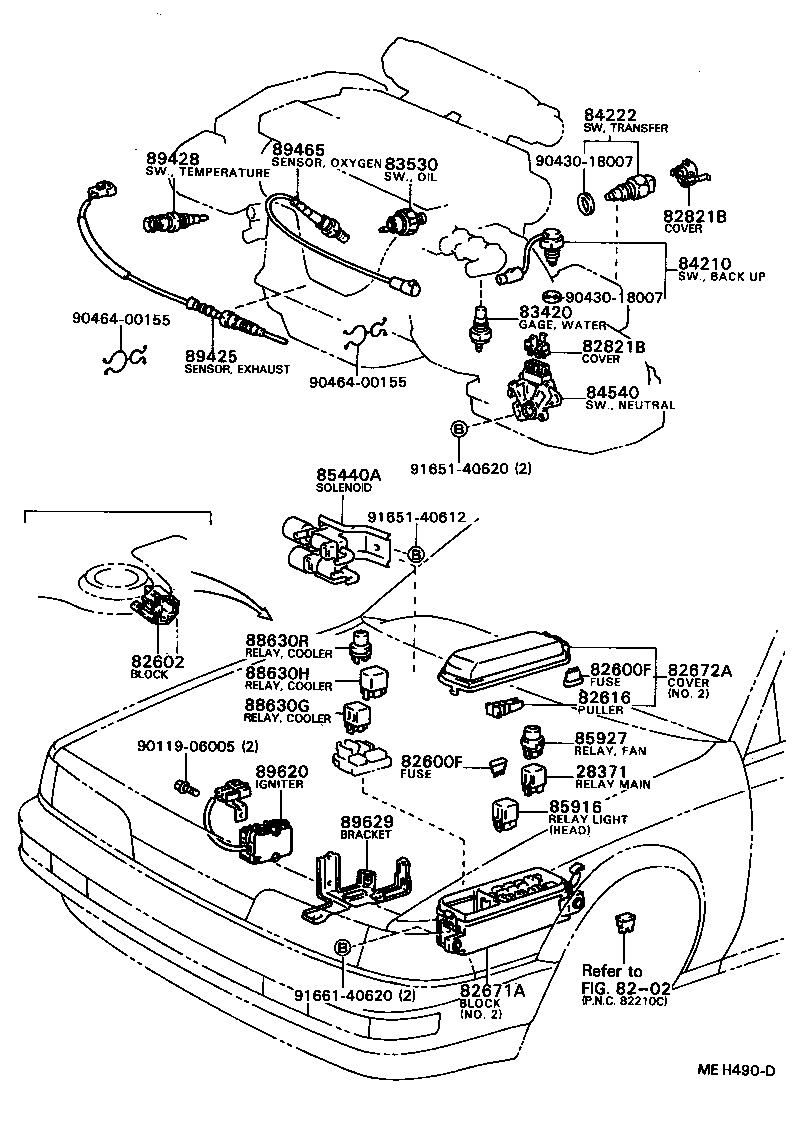

ILLUST NO. 1 OF 7(8608- )SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
2CT,1SI,3S#,1VZFE..CV20,SV2#,VZV20 |
1 | ||
| 85913-30020 |
2CT,1SI,3S#..CV20,SV2# |
1 | ||
| 90987-04002 |
2CT,1SI,3S#,1VZFE..CV20,SV2#,VZV20 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A,7.5A |
6 | ||
| 90982-09005 |
CV20,SV2# 7.5A |
2 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
1 | ||
| 90982-09003 |
SV2# 15A |
7 | ||
| 90982-09002 |
CV20,SV2#,VZV20 10A,10A |
3 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄,20A |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
4 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
1 | ||
| 90982-09002 |
CV20,SV2# 10A |
3 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A,15A |
12 | ||
| 90982-09005 |
CV20,SV2# 7.5A |
4 | ||
| 90982-09003 |
SV2#,VZV20 15A |
7 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A,7.5A |
6 | ||
| 90982-09005 |
CV20,SV2# 7.5A |
2 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
1 | ||
| 90982-09003 |
SV2# 15A |
7 | ||
| 90982-09002 |
CV20,SV2#,VZV20 10A,10A |
3 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄,20A |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
4 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
1 | ||
| 90982-09002 |
CV20,SV2# 10A |
3 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A,15A |
12 | ||
| 90982-09005 |
CV20,SV2# 7.5A |
4 | ||
| 90982-09003 |
SV2#,VZV20 15A |
7 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
2 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-32080 |
CV20,SV2#,VZV20 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CV20,SV2#,VZV20 |
1 | ||
| 82616-12010 |
CV20,SV2# |
1 | ||
| 82616-12010 |
CV20,SV2#,VZV20 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-32030 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82671-32030 |
CV20,SV2# NO.2 |
1 | ||
| 82671-20030 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 82671-32030 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82671-20030 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32060 |
SV2#,VZV20 NO.2 |
1 | ||
| 82672-32010 |
CV20,SV2# NO.1 |
1 | ||
| 82672-32010 |
CV20,SV2# NO.1 |
1 | ||
| 82672-32060 |
SV2# NO.2 |
1 | ||
| 82672-32060 |
SV2#,VZV20 NO.2 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-32050 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 82821-35010 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 82821-32050 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-32050 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 82821-35010 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 82821-32050 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83420-16020 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83530-30080 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83530-30080 |
SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-32070 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 84540-32070 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CV20,SV2#,VZV20 HEAD LAMP |
1 | ||
| 90987-02006 |
CV20,SV2#,VZV20 HEADLAMP |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 TAIL LAMP,MARUKO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 TAIL LAMP,DENSO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 TAIL LAMP,DENSO |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
SV20,21;CV20,SV25,VZV20..5F |
1 | ||
| 90987-03001 |
SV2# |
1 | ||
| 90987-03001 |
SV20,21;CV20,SV25..5F |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 85926-30020 |
SV2#,VZV20 |
1 | ||
| 85926-30020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 85926-30020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-32010 |
SV2#,VZV20 |
1 | ||
| 88630-32010 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88630-32010 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-02004 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 90987-02004 |
SV2#,VZV20 |
1 | ||
| 90987-02004 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12250 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 89425-12250 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 89425-12190 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
SV2# |
1 | ||
| 89428-32010 |
SV2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-32060 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 89465-32060 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-32010 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 89621-32010 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-32030 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 89629-32030 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90430-18007 | ||||
| 90464-00155 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||

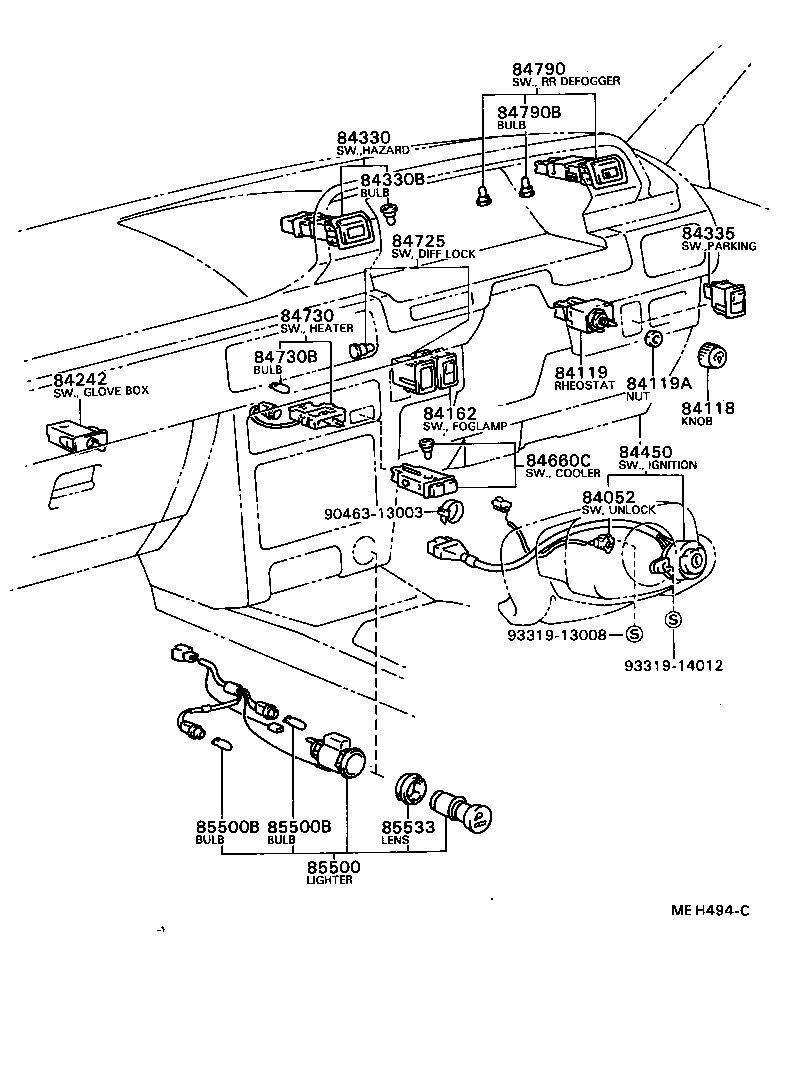

ILLUST NO. 3 OF 7(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10020 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 84052-10020 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 84118-20011 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-32080 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 84119-32080 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 90170-09167 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 84242-20030 |
SV25,VZV20..PRO,VR,ZE;SV20,21..SED..(GT,VR,VX,ZE,ZX) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-32110 |
CV20,SV2#,VZV20 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10190 |
CV20,SV2#,VZV20 12V 0.87W |
1 | ||
| 84999-10190 |
CV20,SV2#,VZV20 12V 0.87W,12V 0.87W |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-95400 |
CV20,SV2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14060 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 84450-14060 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32090 |
SV21..SED..(VE,VX,ZT,ZX) |
1 | ||
| 84790-32031 |
SV20,21..4FC;CV20,SV25,VZV20;SV20,21..HT..5F;SV21..SED..5F..GT;SV20..SED..5F..(VE,VR,ZE,ZT) |
1 | ||
| 84790-32031 |
SV2#..SED..4FC W/TIMER |
1 | ||
| 84790-32031 |
SV21..SED..4FC..(VE,VX,ZT,ZX) W/TIMER |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10190 |
CV20,SV2#,VZV20 12V 0.87W,12V 0.87W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32050 |
CV20,SV2#,VZV20 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV20,SV2#,VZV20 14V 1.4W |
2 | ||
| 90981-11014 |
CV20,SV2#,VZV20 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CV20,SV2#,VZV20 14V 1.4W |
2 | ||
| 90981-11014 |
CV20,SV2#,VZV20 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||

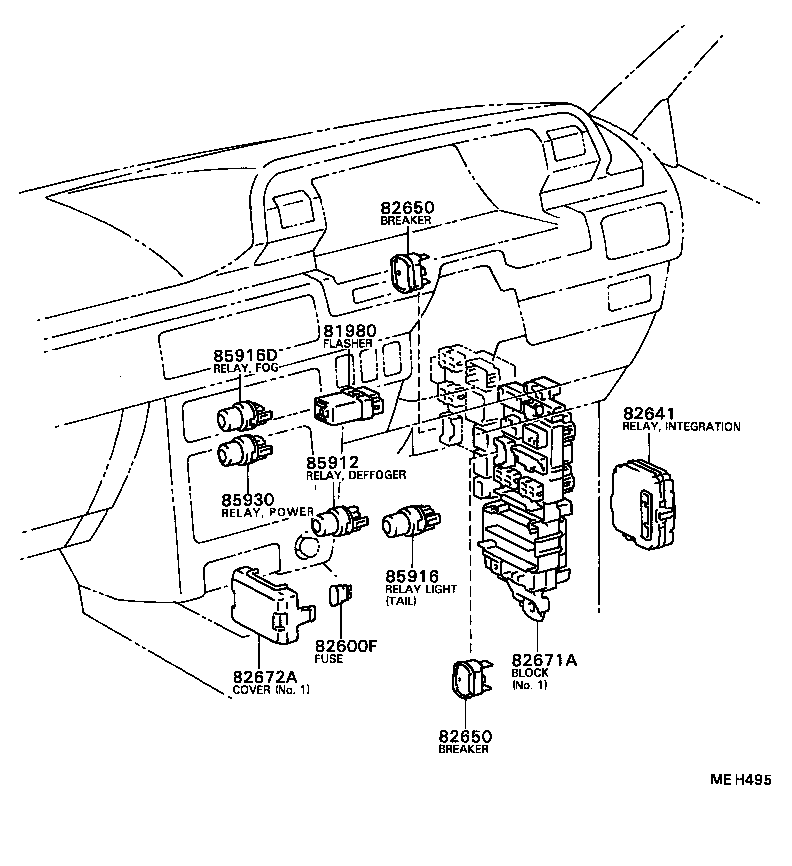

ILLUST NO. 5 OF 7(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CV20,SV2#,VZV20 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A,7.5A |
6 | ||
| 90982-09005 |
CV20,SV2# 7.5A |
2 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
1 | ||
| 90982-09003 |
SV2# 15A |
7 | ||
| 90982-09002 |
CV20,SV2#,VZV20 10A,10A |
3 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄,20A |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
4 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
1 | ||
| 90982-09002 |
CV20,SV2# 10A |
3 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A,15A |
12 | ||
| 90982-09005 |
CV20,SV2# 7.5A |
4 | ||
| 90982-09003 |
SV2#,VZV20 15A |
7 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
2 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-32010 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV20 30A,30A |
3 | ||
| 82650-20011 |
CV20,SV2#,VZV20 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV20 30A,30A |
3 | ||
| 82650-20011 |
CV20,SV2#,VZV20 30A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-32030 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82671-32030 |
CV20,SV2# NO.2 |
1 | ||
| 82671-20030 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 82671-32030 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82671-20030 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32060 |
SV2#,VZV20 NO.2 |
1 | ||
| 82672-32010 |
CV20,SV2# NO.1 |
1 | ||
| 82672-32010 |
CV20,SV2# NO.1 |
1 | ||
| 82672-32060 |
SV2# NO.2 |
1 | ||
| 82672-32060 |
SV2#,VZV20 NO.2 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CV20,SV2#,VZV20 DENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 MARUKO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 DENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CV20,SV2#,VZV20 HEAD LAMP |
1 | ||
| 90987-02006 |
CV20,SV2#,VZV20 HEADLAMP |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 TAIL LAMP,MARUKO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 TAIL LAMP,MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 TAIL LAMP,DENSO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 TAIL LAMP,DENSO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX DENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MARUKO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX DENSO |
1 | ||

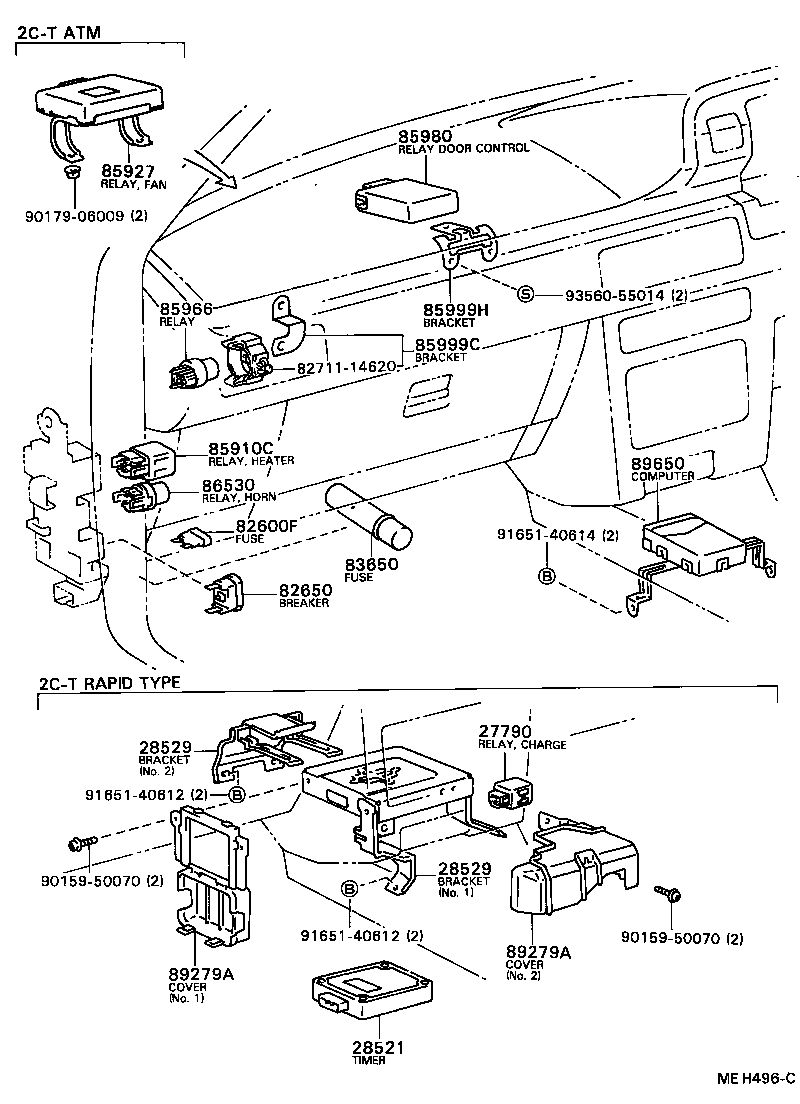

ILLUST NO. 6 OF 7(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A,7.5A |
6 | ||
| 90982-09005 |
CV20,SV2# 7.5A |
2 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
1 | ||
| 90982-09003 |
SV2# 15A |
7 | ||
| 90982-09002 |
CV20,SV2#,VZV20 10A,10A |
3 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄,20A |
1 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A |
4 | ||
| 90982-09004 |
CV20,SV2#,VZV20 20A,黄 |
1 | ||
| 90982-09002 |
CV20,SV2# 10A |
3 | ||
| 90982-09003 |
CV20,SV2#,VZV20 15A,15A |
12 | ||
| 90982-09005 |
CV20,SV2# 7.5A |
4 | ||
| 90982-09003 |
SV2#,VZV20 15A |
7 | ||
| 90982-09005 |
CV20,SV2#,VZV20 7.5A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CV20,SV2#,VZV20 30A,30A |
3 | ||
| 82650-20011 |
CV20,SV2#,VZV20 30A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
CV20,SV2#,VZV20 |
1 | ||
| 90986-01003 |
CV20,SV2#,VZV20 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
CV20,SV2#,VZV20 |
1 | ||
| 85913-30020 |
CV20,SV2# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
SV20,21;CV20,SV25,VZV20..5F |
1 | ||
| 90987-03001 |
SV2# |
1 | ||
| 90987-03001 |
SV20,21;CV20,SV25..5F |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-32050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-32030 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
CV20,SV2#,VZV20 DENSO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 MARUKO |
1 | ||
| 90987-02002 |
CV20,SV2#,VZV20 MARUKO |
1 | ||
| 90987-02004 |
CV20,SV2#,VZV20 DENSO |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-32010 |
SV21,VZV20..PRO,VX,ZX |
1 | ||
| 89650-32010 |
SV21,VZV20..PRO,VX,ZX |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90159-50070 | ||||
| 90179-06009 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93560-55014 | ||||

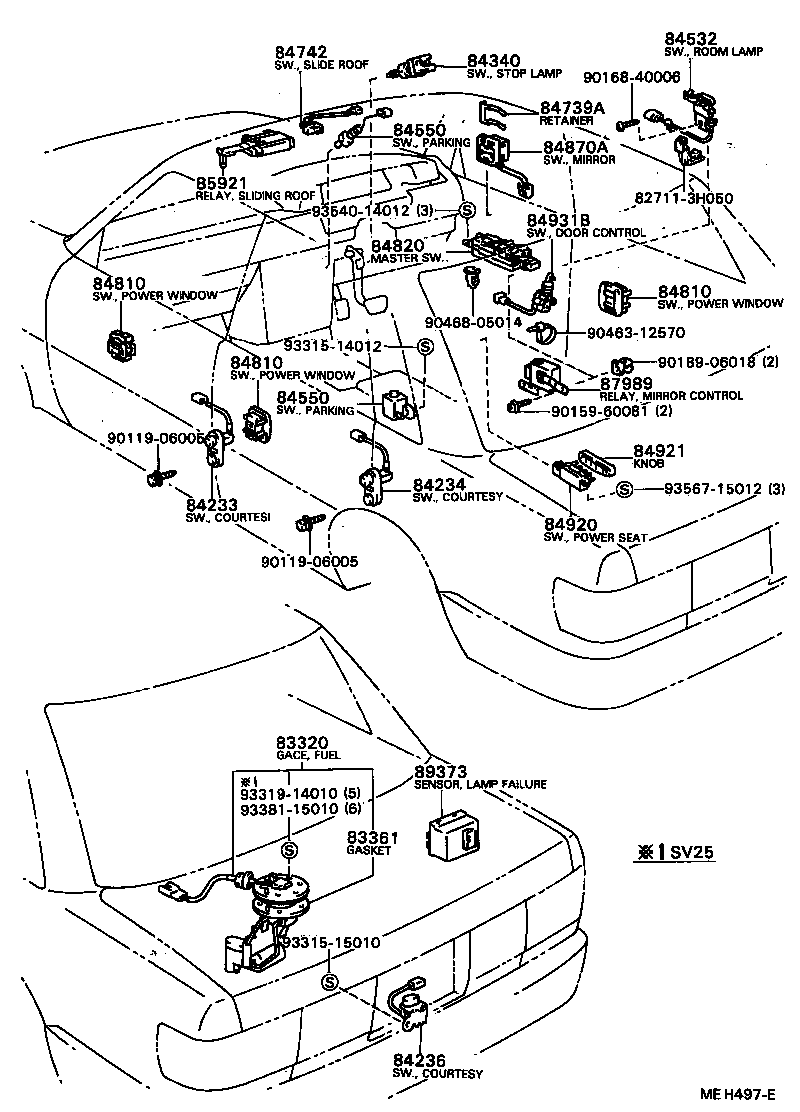

ILLUST NO. 7 OF 7(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39795 |
SV21,VZV20..GT,PRO,VX,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83320-39765 |
SV2#,VZV20 |
1 | ||
| 83320-39795 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83320-39765 |
SV20,21,VZV20 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 83361-32020 |
CV20,SV20,21,VZV20 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-24010 |
CV20,SV2#,VZV20 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20110 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 84231-20110 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
CV20,SV2#,VZV20 MATSUSHITA |
1 | ||
| 84340-32010 |
CV20,SV2#,VZV20 TOKAIRIKA |
1 | ||
| 84340-22110 |
SV21..GT,VX,ZX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),TOKAIRIKA |
1 | ||
| 84340-22110 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX W/*AD,TOKAIRIKA |
1 | ||
| 84340-32010 |
CV20,SV2#,VZV20 TOKAIRIKA |
1 | ||
| 84340-22100 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX W/*AD,MATSUSHITA |
1 | ||
| 84340-22100 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),MATSUSHITA |
1 | ||
| 84340-30030 |
CV20,SV2#,VZV20 MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 84550-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 84550-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-32010 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 84739-32010 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-32010 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,MAROON,MAROON,TRIM3# |
2 | ||
| 84810-2006014 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 84810-32050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX FR |
1 | ||
| 84810-2006005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX RR,DARK BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 84810-2006002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,MAROON,MAROON,TRIM3# |
2 | ||
| 84810-2006014 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,DARK BLUE,DARK BLUE,TRIM8# |
2 | ||
| 84810-32050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX FR |
1 | ||
| 84810-2006005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX RR,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,MAROON,MAROON,TRIM3# |
2 | ||
| 84810-2006014 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 84810-32050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX FR |
1 | ||
| 84810-2006005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX RR,DARK BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 84810-2006002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,MAROON,MAROON,TRIM3# |
2 | ||
| 84810-2006014 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,DARK BLUE,DARK BLUE,TRIM8# |
2 | ||
| 84810-32050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX FR |
1 | ||
| 84810-2006005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX RR,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,MAROON,MAROON,TRIM3# |
2 | ||
| 84810-2006014 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 84810-32050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX FR |
1 | ||
| 84810-2006005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX RR,DARK BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 84810-2006002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,MAROON,MAROON,TRIM3# |
2 | ||
| 84810-2006014 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RR,DARK BLUE,DARK BLUE,TRIM8# |
2 | ||
| 84810-32050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX FR |
1 | ||
| 84810-2006005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX RR,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32090 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-3203004 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX W/*DRC,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84870-3203005 |
SV2#..GT,VR,VX,ZE,ZX W/*DRC,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84870-3204004 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX W/*FRC,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84870-3203004 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 84870-3203002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX W/*DRC,MAROON,MAROON,TRIM3# |
1 | ||
| 84870-3203005 |
SV2#..GT,VR,VX,ZE,ZX DARK BEIGE,TRIM4# |
1 | ||
| 84870-3204005 |
SV2#..GT,VR,VX,ZE,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84870-3203002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 84870-3204002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 84870-3204005 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX W/*FRC,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84870-3204004 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-),DARK BLUE,TRIM8# |
1 | ||
| 84870-3204005 |
SV2#..GT,VR,VX,ZE,ZX ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-),DARK BEIGE,TRIM4# |
1 | ||
| 84870-3204002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX W/*FRC,MAROON,MAROON,TRIM3# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-32040 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-32010 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-32010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 87989-32010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32140 |
CV20,SV2# |
1 | ||
| 89373-32141 |
CV20,SV2# |
1 | ||
| Common parts | ||||
| 82711-3H050 | ||||
| 90119-06005 | ||||
| 90159-60081 | ||||
| 90168-40006 | ||||
| 90189-06018 | ||||
| 90463-12570 | ||||
| 90468-05014 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93540-14012 | ||||
| 93567-15012 | ||||

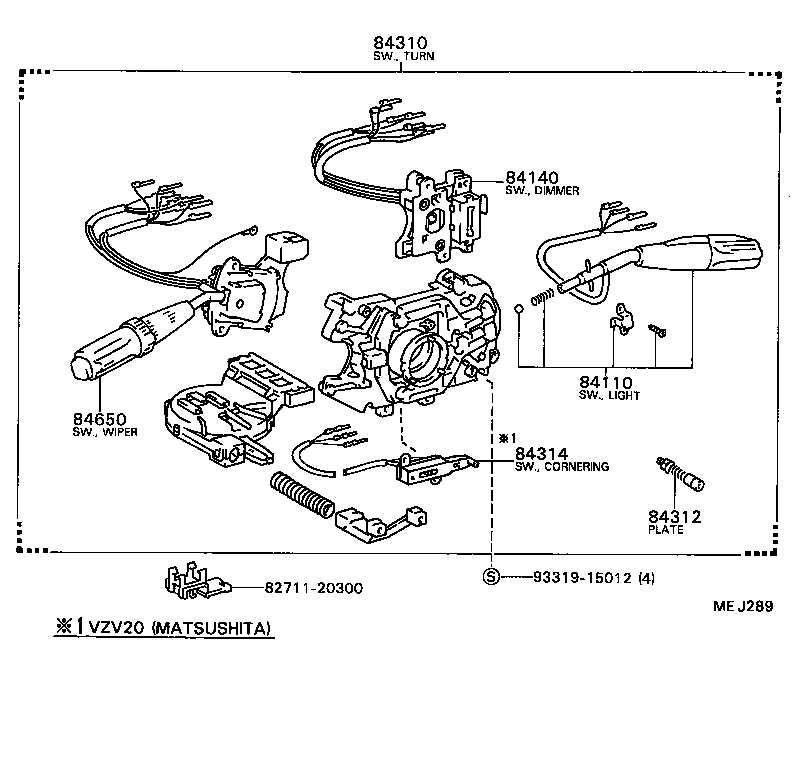

ILLUST NO. 4 OF 7(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39375 |
SV21,VZV20..GT,PRO,VX,ZX MATSUSHITA |
1 | ||
| 84112-39375 |
SV21,VZV20..GT,PRO,VX,ZX MATSUSHITA |
1 | ||
| 84112-39345 |
SV21,VZV20..GT,PRO,VX,ZX TOKAIRIKA |
1 | ||
| 84112-39345 |
SV21,VZV20..GT,PRO,VX,ZX TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32060 |
SV21,VZV20..GT,PRO,VX,ZX MATSUSHITA |
1 | ||
| 84140-32080 |
SV21..GT,VX,ZX TOKAIRIKA |
1 | ||
| 84140-32060 |
SV21,VZV20..GT,PRO,VX,ZX MATSUSHITA |
1 | ||
| 84140-32080 |
SV21..GT,VX,ZX TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32450 |
SV21..GT,VX,ZX W/*AD |
1 | ||
| 84310-32450 |
SV21..GT,VX,ZX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 84310-32440 |
SV21..GT,VX,ZX |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
CV20,SV2#,VZV20 MATSUSHITA |
1 | ||
| 84312-32010 |
CV20,SV2#,VZV20 TOKAIRIKA |
1 | ||
| 84312-32010 |
CV20,SV2#,VZV20 TOKAIRIKA |
1 | ||
| 84312-32020 |
CV20,SV2#,VZV20 MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-32330 |
SV21..GT,VX,ZX W/*AD,TOKAIRIKA |
1 | ||
| 84652-32320 |
SV21..GT,VX,ZX TOKAIRIKA |
1 | ||
| 84652-32320 |
SV21..GT,VX,ZX TOKAIRIKA |
1 | ||
| 84652-32440 |
SV21,VZV20..GT,PRO,VX,ZX MATSUSHITA |
1 | ||
| 84652-32330 |
SV21..GT,VX,ZX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),TOKAIRIKA |
1 | ||
| 84652-32440 |
SV21,VZV20..GT,PRO,VX,ZX MATSUSHITA |
1 | ||
| 84652-32450 |
SV21,VZV20..GT,PRO,VX,ZX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),MATSUSHITA |
1 | ||
| 84652-32450 |
SV21,VZV20..GT,PRO,VX,ZX W/*AD,MATSUSHITA |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
