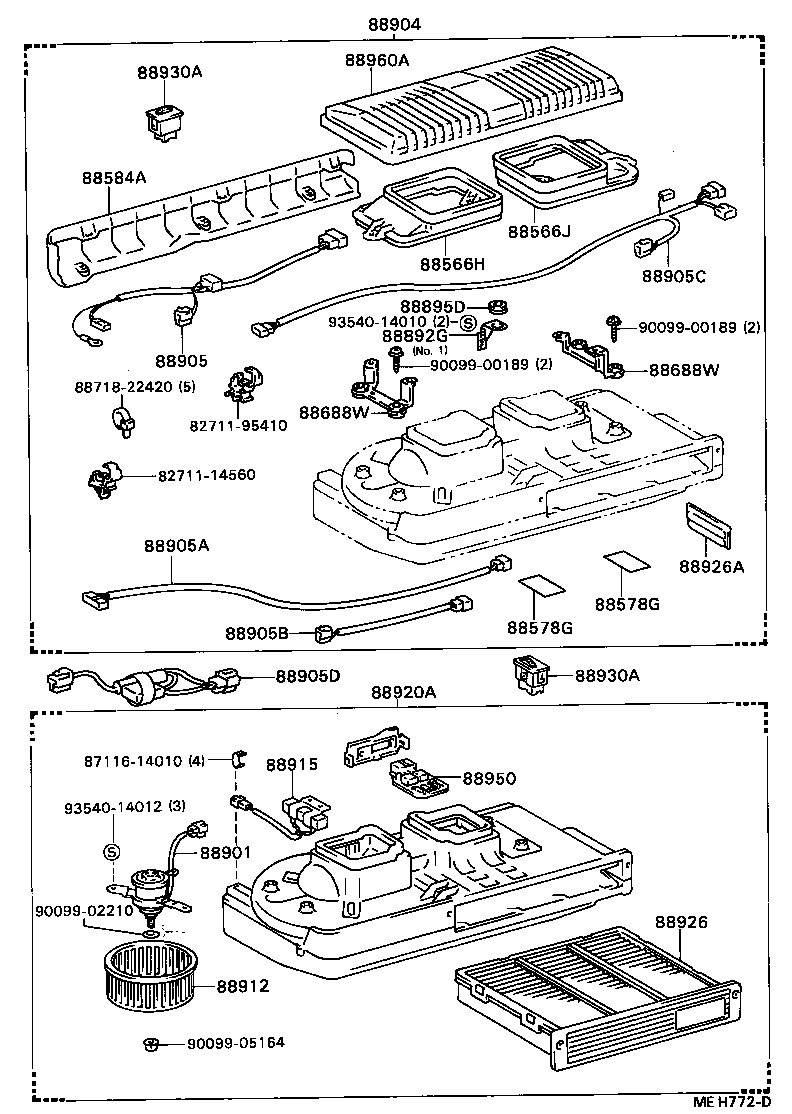

SV21-UEMMK (1986)
Toyota Camry/Vista
(8608- )
MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-32050 |
CV20,SV2#,VZV20..SED |
1 | ||
| 88566-32050 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 88566J - DUCT, AIR, NO.2 | ||||
| 88566-32060 |
CV20,SV2#,VZV20..SED |
1 | ||
| 88566-32060 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 88584A - GUIDE, AIR | ||||
| 88584-32010 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88584-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-32200 |
CV20,SV2#,VZV20..SED LH |
1 | ||
| 88688-32240 |
CV20,SV2#,VZV20..SED RH |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-32200 |
CV20,SV2#,VZV20..SED LH |
1 | ||
| 88688-32240 |
CV20,SV2#,VZV20..SED RH |
1 | ||
| 88892G - PLATE SUB-ASSY | ||||
| 88892-32080 |
CV20,SV2#,VZV20 NO.1 |
1 | ||
| 88895D - GROMMET (FOR AIR PURIFIER) | ||||
| 88895-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 88901-32010 |
SV2#..HT..(GT,VR,VX);CV20,SV2#..LT,VC,VE,VL,XT,ZT ﾏﾆﾕｱﾙ |
1 | ||
| 88904 - FITTING KIT, AIR PURIFIER | ||||
| 88904-3201002 |
CV20,SV2#,VZV20..SED MAROON,MAROON,TRIM3# |
1 | ||
| 88904-3201004 |
CV20,SV2#,VZV20..SED BLUE,DARK BLUE,TRIM8# |
1 | ||
| 88904-3202004 |
SV2#,VZV20..SED AUTO,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 88904-3201002 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) MAROON,TRIM3# |
1 | ||
| 88904-3202005 |
SV2#..SED AUTO,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 88904-3201005 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) DARK BEIGE,TRIM4# |
1 | ||
| 88904-3202002 |
SV2#,VZV20..SED AUTO,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-3201005 |
CV20,SV2#..SED BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 88904-3201004 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) DARK BLUE,TRIM8# |
1 | ||
| 88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1 | ||||
| 88905-32030 |
CV20,SV2# |
1 | ||
| 88905-32031 |
CV20,SV2#,VZV20 |
1 | ||
| 88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2 | ||||
| 88905-32040 |
CV20,SV2# |
1 | ||
| 88905-32070 |
SV2#,VZV20..SED AUTO |
1 | ||
| 88905-32080 |
CV20,SV2#,VZV20..SED |
1 | ||
| 88905B - WIRE SUB-ASSY, AIR PURIFIER, NO.3 | ||||
| 88905-32060 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88905-32060 |
CV20,SV2#,VZV20 |
1 | ||
| 88905C - WIRE SUB-ASSY, AIR PURIFIER, NO.4 | ||||
| 88905-32050 |
SV2#..HT..(GT,VR,VX);CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88905-32050 |
CV20,SV2#,VZV20 |
1 | ||
| 88905D - WIRE SUB-ASSY, AIR PURIFIER, NO.4 | ||||
| 88648-32090 |
CV20,SV2#,VZV20 |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 88912-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 88912-32010 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88915 - RESISTOR, AIR PURIFIER | ||||
| 88915-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 88915-32010 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-32010 |
CV20,SV2#,VZV20..SED |
1 | ||
| 88920-32010 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-32010 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88926-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 88926A - ODOR, CARTRIDGE | ||||
| 88926-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 88926-32020 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-32030 |
SV2#,VZV20..5F;SV21..HT..4FC..GT AUTO |
1 | ||
| 88930-22041 |
SV21..HT..4FC..GT;CV20,SV2#,VZV20..5F |
1 | ||
| 88930-22041 |
SV20..HT..5F;SV21..HT..4FC..GT;SV21,25..5F..(VE,VL,XT,ZT);SV21,25..HT..5F..(GT,VR,VX);CV20,SV20..SED..5F..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 88930-32020 |
SV20..HT..5F;SV21..HT..4FC..GT;SV21,25..5F..(VE,VL,XT,ZT);SV21,25..HT..5F..(GT,VR,VX);CV20,SV20..SED..5F..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-32030 |
SV2#,VZV20..5F;SV21..HT..4FC..GT AUTO |
1 | ||
| 88930-22041 |
SV21..HT..4FC..GT;CV20,SV2#,VZV20..5F |
1 | ||
| 88930-22041 |
SV20..HT..5F;SV21..HT..4FC..GT;SV21,25..5F..(VE,VL,XT,ZT);SV21,25..HT..5F..(GT,VR,VX);CV20,SV20..SED..5F..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 88930-32020 |
SV20..HT..5F;SV21..HT..4FC..GT;SV21,25..5F..(VE,VL,XT,ZT);SV21,25..HT..5F..(GT,VR,VX);CV20,SV20..SED..5F..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 88960A - GRILLE ASSY, AIR PURIFIER | ||||
| 88960-3201005 |
CV20,SV2#..SED BEIGE,BEIGE,TRIM4# |
1 | ||
| 88960-3201004 |
CV20,SV2#,VZV20..SED BLUE,BLUE,TRIM8# |
1 | ||
| 88960-3201002 |
CV20,SV2#,VZV20..SED MAROON,MAROON,TRIM3# |
1 | ||
| 88960-3201004 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) BLUE,TRIM8# |
1 | ||
| 88960-3201005 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) BEIGE,TRIM4# |
1 | ||
| 88960-3201002 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 82711-95410 | ||||
| 87116-14010 | ||||
| 88718-22420 | ||||
| 90099-00189 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 93540-14010 | ||||
| 93540-14012 | ||||
