SV21-UEMMK (1986)
Toyota Camry/Vista
(8608- )LT,VC,VE,VL,XT,ZT

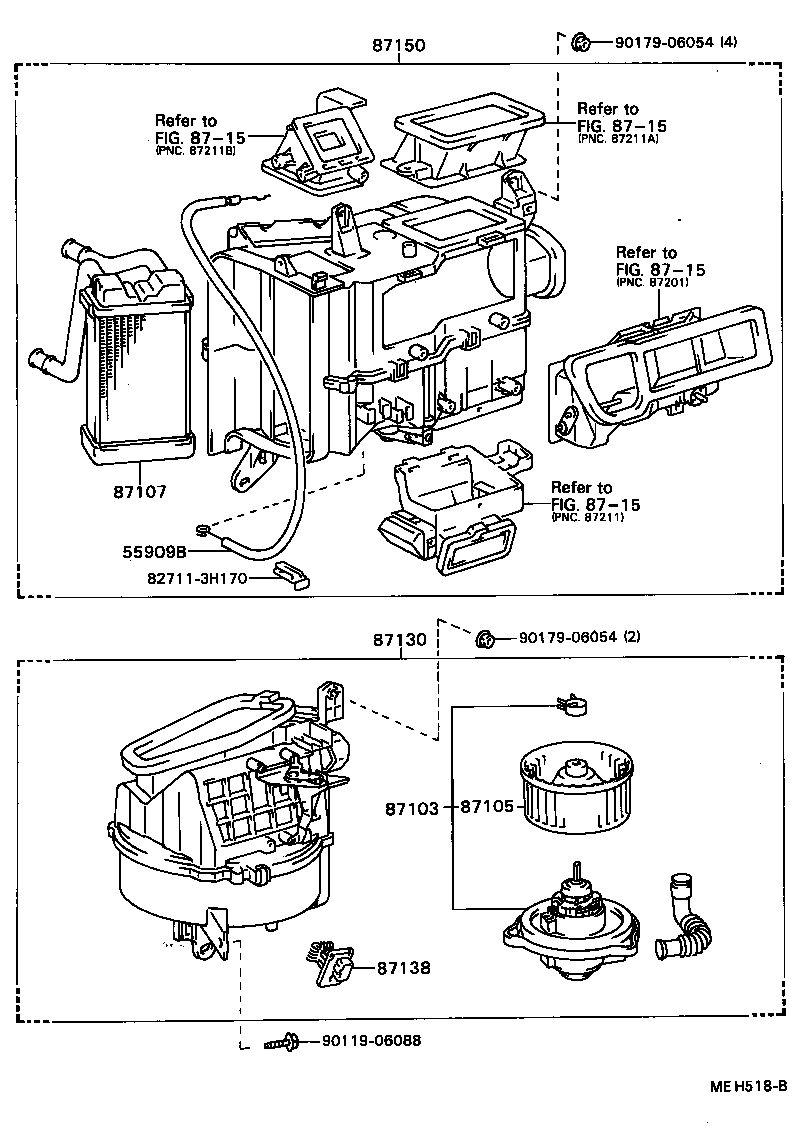

LEVER HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-32100 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-32050 |
SV2#,VZV20 |
1 | ||
| 87107-32060 |
SV2#,VZV20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-32050 |
SV2#,VZV20 |
1 | ||
| 87107-32060 |
SV2#,VZV20..GT,LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZX ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-32060 |
SV2#,VZV20 COLD SPEC |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-32070 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-32040 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88635-32020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88635-32020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88635-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/*AAC |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-32080 |
SV2#..LT,VC,VE,VL,XT,ZT COLD SPEC |
1 | ||
| 87150-32070 |
SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 87150-32080 |
SV2#..LT,VC,VE,VL,XT,ZT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 82711-3H170 | ||||
| 90119-06088 | ||||
| 90179-06054 | ||||
| Linked diagrams | ||||
| 8715 | ||||

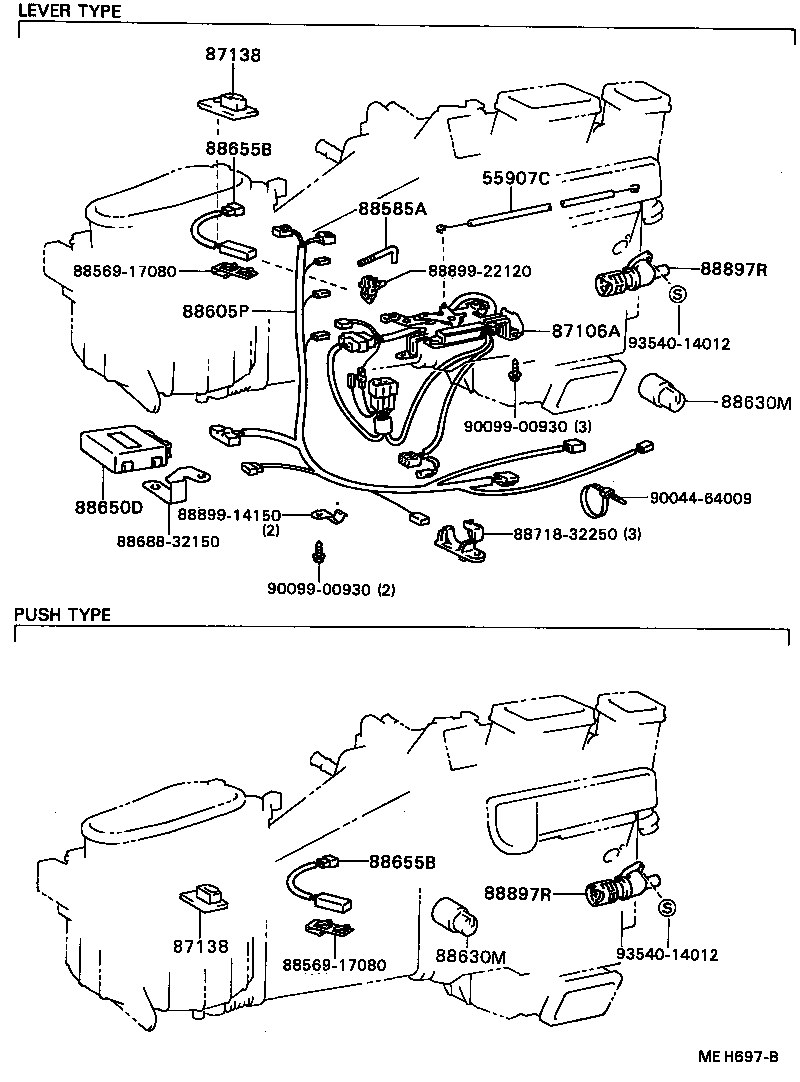

(8608- )GT,VE,VL,VR,VX,XT,ZE,ZT,ZX
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 87286-32010 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT |
1 | ||
| 87286-32010 |
CV20,SV2#..VE,VL,XT,ZT |
1 | ||
| 87286-32010 |
SV20..VE;SV20..HT..VL;SV21,25..VE,VL,XT |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 88660-32090 |
CV20,SV2#..VE,VL,XT,ZT W/*AAC,AIR MIX CONTROL |
1 | ||
| 88660-32090 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),AIR MIX CONTROL |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-32040 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88635-32020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88635-32020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88635-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/*AAC |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-32040 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 88635-32020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88635-32020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88635-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/*AAC |
1 | ||
| 88585A - SHAFT, HEATER AIR DAMPER | ||||
| 88585-32010 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT |
1 | ||
| 88585-32010 |
CV20,SV2#..VE,VL,XT,ZT |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-32340 |
CV20,SV2#..VE,VL,XT,ZT |
1 | ||
| 88605-32340 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT |
1 | ||
| 88630M - RELAY ASSY, COOLER | ||||
| 88630-95702 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 88630M - RELAY ASSY, COOLER | ||||
| 88630-95702 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-32140 |
SV20..VE,ZT;SV20..HT..VL;CV20,SV21,25..VE,VL,XT,ZT |
1 | ||
| 88650-32140 |
CV20,SV2#..VE,VL,XT,ZT |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88655-22020 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 88655-22020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88655-22020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88655-22020 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 88655-22020 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88655-22020 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88897R - ASPIRATOR | ||||
| 88897-32010 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 88897-32010 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88897-32010 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88897R - ASPIRATOR | ||||
| 88897-32010 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 88897-32010 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88897-32010 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| Common parts | ||||
| 88569-17080 | ||||
| 88688-32150 | ||||
| 88718-32250 | ||||
| 88899-14150 | ||||
| 88899-22120 | ||||
| 90044-64009 | ||||
| 90099-00930 | ||||
| 93540-14012 | ||||
