SV21-UEMMK (1986)
Toyota Camry/Vista

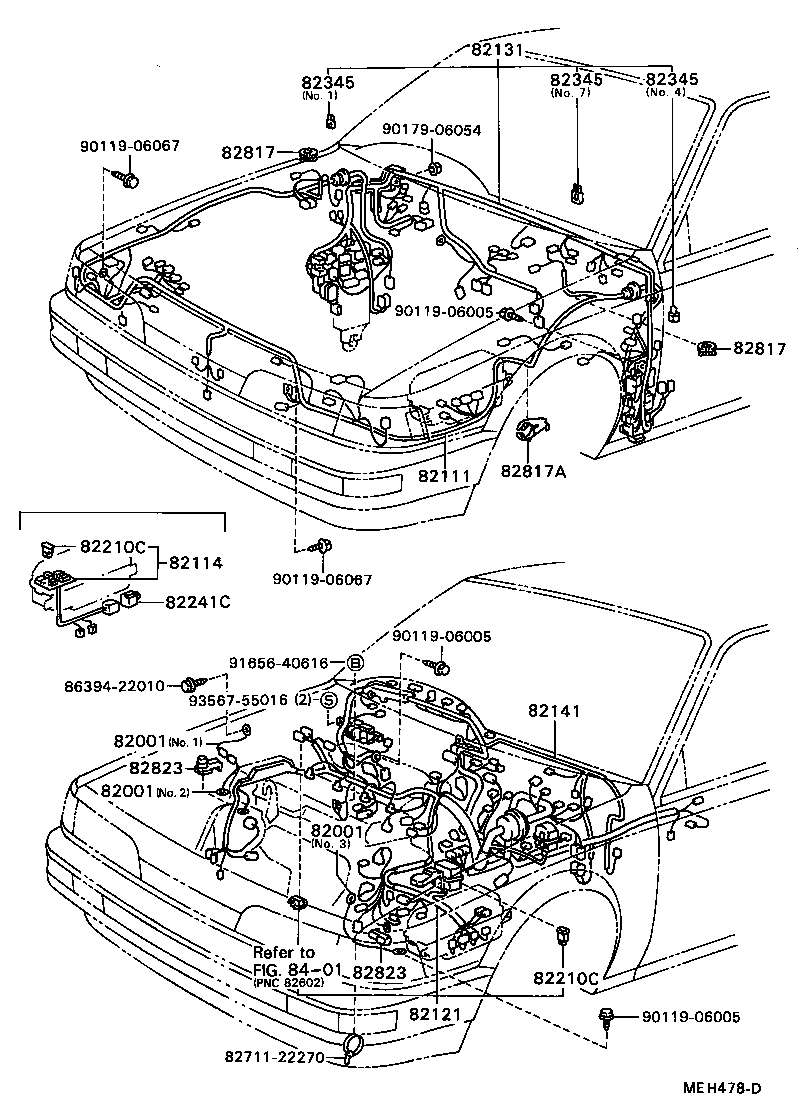

ILLUST NO. 1 OF 5(8608- )SV21,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07136 |
SV2# NO.3 |
1 | ||
| 90980-07287 |
SV2#,VZV20 NO.1 |
1 | ||
| 90980-07206 |
SV2# NO.1 |
1 | ||
| 90980-07280 |
SV21..VE,VX,ZT,ZX NO.2 |
1 | ||
| 90980-07136 |
SV2# NO.3 |
1 | ||
| 90980-07280 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX NO.2 |
1 | ||
| 90980-07287 |
SV2#,VZV20 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07136 |
SV2# NO.3 |
1 | ||
| 90980-07287 |
SV2#,VZV20 NO.1 |
1 | ||
| 90980-07206 |
SV2# NO.1 |
1 | ||
| 90980-07280 |
SV21..VE,VX,ZT,ZX NO.2 |
1 | ||
| 90980-07136 |
SV2# NO.3 |
1 | ||
| 90980-07280 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX NO.2 |
1 | ||
| 90980-07287 |
SV2#,VZV20 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07136 |
SV2# NO.3 |
1 | ||
| 90980-07287 |
SV2#,VZV20 NO.1 |
1 | ||
| 90980-07206 |
SV2# NO.1 |
1 | ||
| 90980-07280 |
SV21..VE,VX,ZT,ZX NO.2 |
1 | ||
| 90980-07136 |
SV2# NO.3 |
1 | ||
| 90980-07280 |
SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX NO.2 |
1 | ||
| 90980-07287 |
SV2#,VZV20 NO.1 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-32040 |
SV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX W/*AD,W/*FRC,W/TEMS |
1 | ||
| 82111-32040 |
SV2#..VE,VL,XT,ZT ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-)---ﾉｿﾞｸ(ESC) |
1 | ||
| 82111-32031 |
SV2# |
1 | ||
| 82111-32041 |
SV2#..VE,VL,XT,ZT ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-)---ﾉｿﾞｸ(ESC) |
1 | ||
| 82111-32030 |
SV2# |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32030 |
SV2# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-32600 |
SV21..5F..(VE,VX,ZT,ZX) |
1 | ||
| 82121-32601 |
SV21..5F..(VE,VX,ZT,ZX) |
1 | ||
| 82121-32602 |
SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-3H331 |
CV20,SV2#..VE,ZT |
1 | ||
| 82131-3H330 |
CV20,SV2#..VE,ZT |
1 | ||
| 82131-3H331 |
CV20,SV20,21..VE,ZT |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-32030 |
CV20,SV2#..5F..(VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 82141-32031 |
CV20,SV2#..5F..(VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑,40A |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒,80A |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV20 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
SV20,21..5F;SV21..4FC..GT;CV20,SV25,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV20 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A |
5 | ||
| 90982-08203 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑,40A |
1 | ||
| 90982-08189 |
CV20,SV2#,VZV20 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒,80A |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV20 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
SV20,21..5F;SV21..4FC..GT;CV20,SV25,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
CV20,SV2#,VZV20 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A |
5 | ||
| 90982-08203 |
CV20,SV2#,VZV20 80A,ｵｽ端子,黒 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32020 |
SV2# W/O *AIC |
1 | ||
| 82241-32020 |
SV20,21;CV20,SV25..5F ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIER,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV2#..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-20060 |
CV20,SV20,21..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345-12050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIER,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV2#..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-20060 |
CV20,SV20,21..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345-12050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIER,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV2#..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-20060 |
CV20,SV20,21..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345-12050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
CV20,SV2#,VZV20 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
CV20,SV2#,VZV20 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32310 |
CV20,SV2#,VZV20 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX STARTER |
1 | ||
| 82823-22050 |
SV2# ALTERNATOR |
1 | ||
| 82823-22050 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX ALTERNATOR |
1 | ||
| 82823-20030 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX STARTER |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX STARTER |
1 | ||
| 82823-22050 |
SV2# ALTERNATOR |
1 | ||
| 82823-22050 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX ALTERNATOR |
1 | ||
| 82823-20030 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX STARTER |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 86394-22010 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-06054 | ||||
| 91656-40616 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

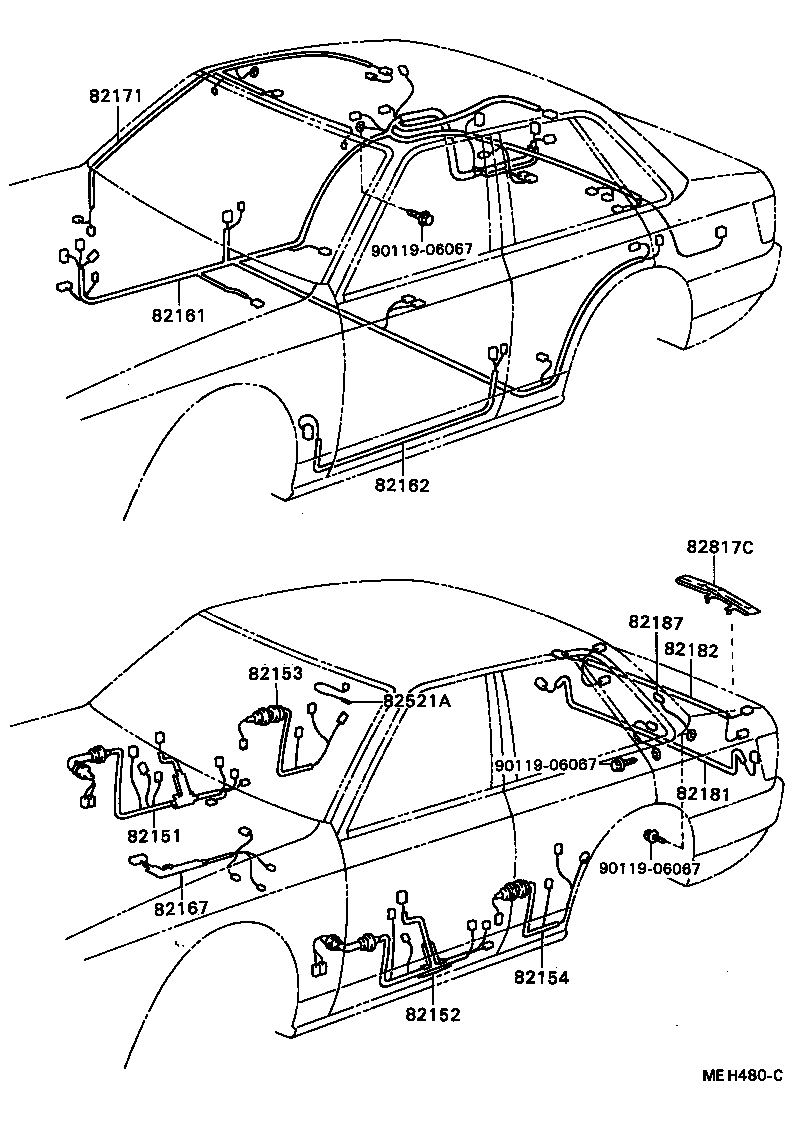

ILLUST NO. 2 OF 5(8608- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32210 |
CV20,SV2#..SED..(VE,ZT) |
1 | ||
| 82151-32370 |
CV20,SV2#..SED..(VE,ZT) W/*FRC |
1 | ||
| 82151-32210 |
CV20,SV20,21..SED..(VE,ZT) |
1 | ||
| 82151-32370 |
CV20,SV20,21..SED..(VE,ZT) ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32200 |
CV20,SV2#..SED..(VE,ZT) |
1 | ||
| 82152-32200 |
CV20,SV20,21..SED..(VE,ZT) |
1 | ||
| 82152-32350 |
CV20,SV20,21..SED..(VE,ZT) ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-) |
1 | ||
| 82152-32350 |
CV20,SV2#..SED..(VE,ZT) W/*FRC |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-32070 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-32090 |
CV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 82161-32090 |
CV20,SV20,21..SED..(GT,VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-32060 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 82162-32060 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32050 |
CV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 82171-32060 |
CV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX) W/*SNR |
1 | ||
| 82171-32060 |
CV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-32050 |
CV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32030 |
CV20,SV2#,VZV20..SED |
1 | ||
| 82181-32030 |
CV20,SV20,21,VZV20..SED |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-32050 |
CV20,SV2#,VZV20..SED |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||

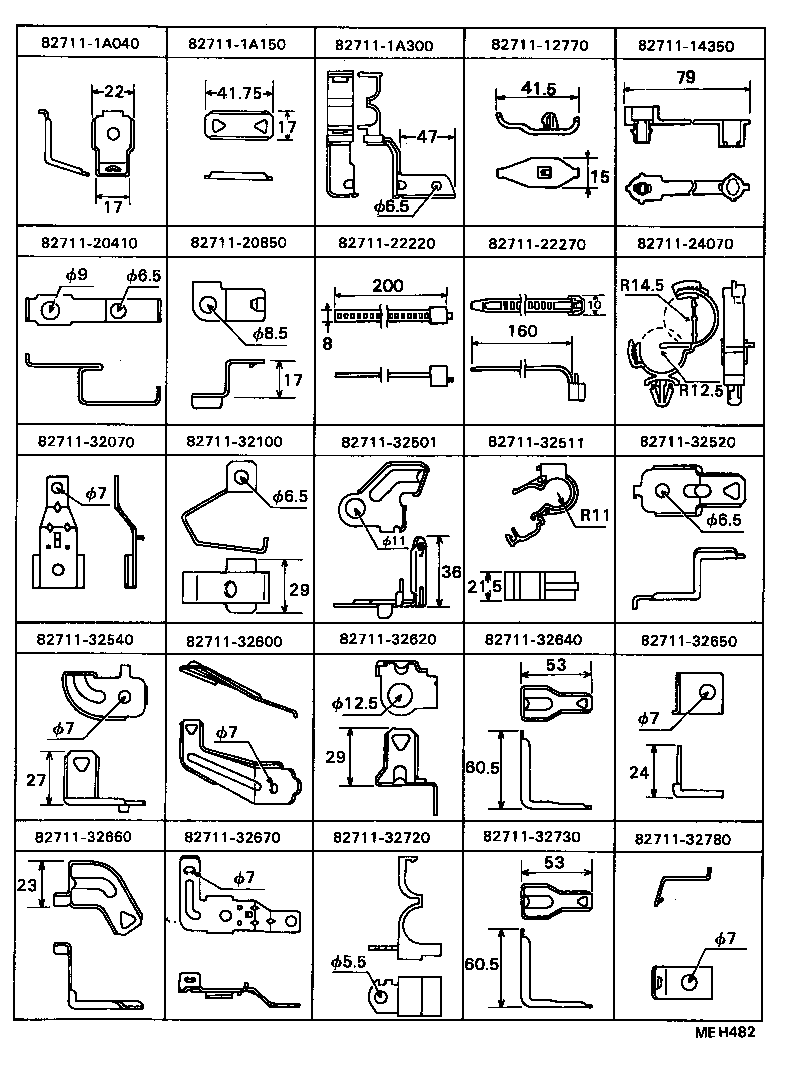

ILLUST NO. 3 OF 5(8608- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-20410 | ||||
| 82711-20850 | ||||
| 82711-22220 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-32070 | ||||
| 82711-32100 | ||||
| 82711-32501 | ||||
| 82711-32511 | ||||
| 82711-32520 | ||||
| 82711-32540 | ||||
| 82711-32600 | ||||
| 82711-32620 | ||||
| 82711-32640 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32670 | ||||
| 82711-32720 | ||||
| 82711-32730 | ||||
| 82711-32780 | ||||
ILLUST NO. 4 OF 5(8608- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20010 |
CV20,SV2#,VZV20 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-32020 |
CV20,SV2#..SED |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
CV20,SV2#,VZV20 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82991-20050 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| Common parts | ||||
| 82981-20010 | ||||
| 82982-32010 | ||||
| 82983-32020 | ||||
| 82984-20010 | ||||
| 82987-30010 | ||||
| 82991-20050 | ||||
ILLUST NO. 4 OF 5(8608- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-32020 |
CV20,SV2#..SED |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82991-20050 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| 82991-20050 |
CV20,SV2#,VZV20 NO.2 |
1 | ||
| Common parts | ||||
| 82982-20030 | ||||
| 82983-20010 | ||||
| 82991-32050 | ||||
| 82991-32060 | ||||

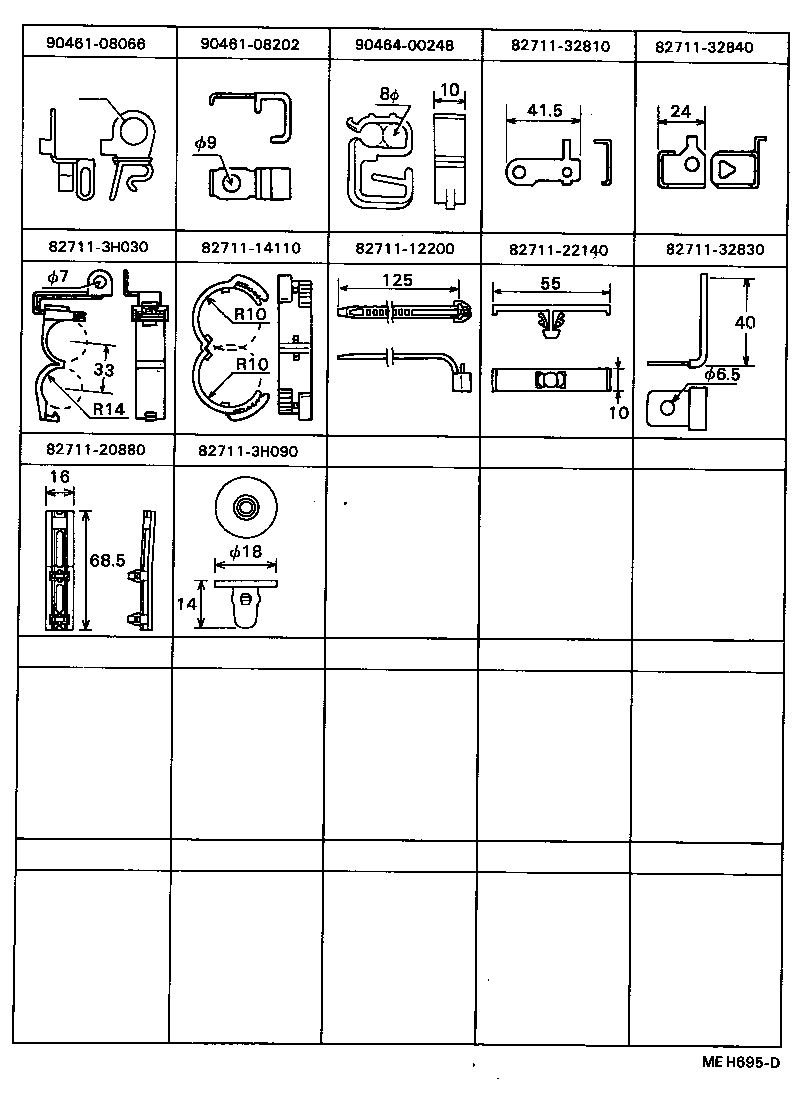

ILLUST NO. 3 OF 5(8608- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-20880 | ||||
| 82711-22140 | ||||
| 82711-32810 | ||||
| 82711-32830 | ||||
| 82711-32840 | ||||
| 82711-3H030 | ||||
| 82711-3H090 | ||||
| 90461-08066 | ||||
| 90461-08202 | ||||
| 90464-00248 | ||||

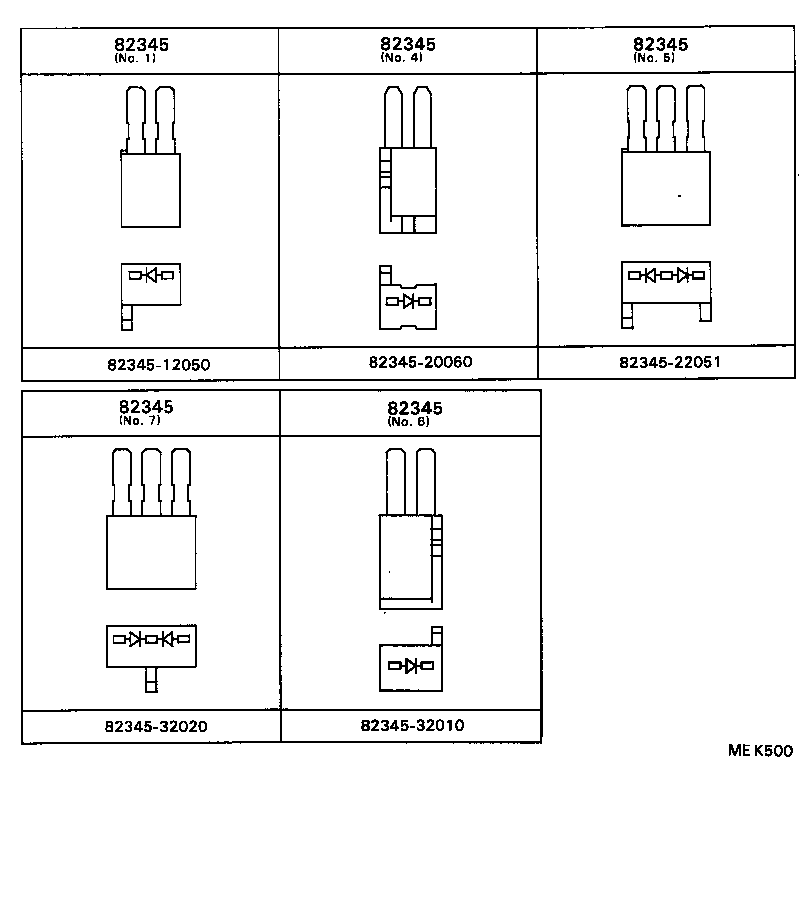

ILLUST NO. 5 OF 5(8608- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIER,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV2#..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-20060 |
CV20,SV20,21..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345-12050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIER,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV2#..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-20060 |
CV20,SV20,21..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345-12050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIER,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV2#..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-20060 |
CV20,SV20,21..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345-12050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIER,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV2#..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-20060 |
CV20,SV20,21..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345-12050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIER,NO.1 |
1 | ||
| 82345-20060 |
CV20,SV2#..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-20060 |
CV20,SV20,21..VE,ZT COWL WIRE,NO.4 |
1 | ||
| 82345-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| 82345-12050 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX COWL WIRE,NO.1 |
1 | ||
| 82345-32020 |
CV20,SV20,21,VZV20..GT,PRO,VE,VX,ZT,ZX COWL WIRE,NO.7 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-20060 | ||||
| 82345-22051 | ||||
| 82345-32010 | ||||
| 82345-32020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
