SV21-UEMMK (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )SED

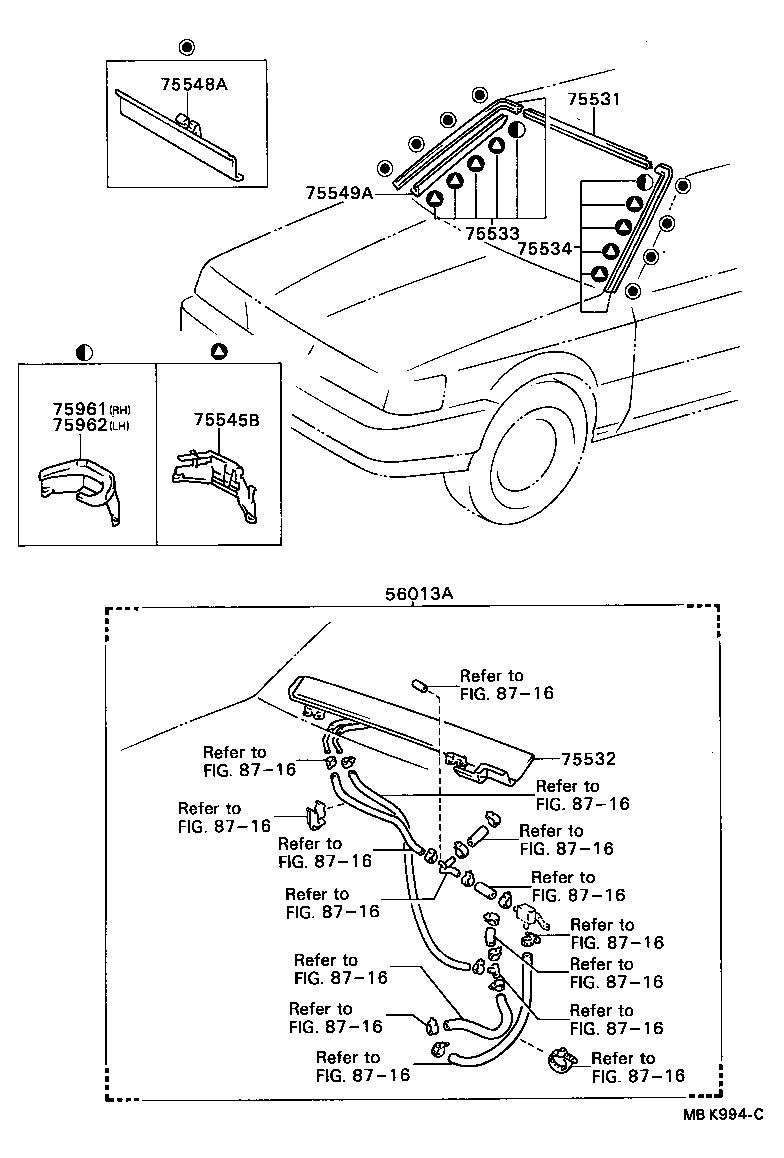

Click highlighted areas on diagram

diagram 56013A 75531 75532 75533 75534 75545B 75548A 75549A 75961 75962 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716
Part # Description Qty Price
56013A - MOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER
56013-32020

SV21,25

 1
56013-32020

SV21

COLD SPEC

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-32030

CV20,SV2#,VZV20..SED

 1
75532 - MOULDING, WINDSHIELD, LOWER
75504-32010

CV20,SV2#

 1
75504-32010

CV20,SV2#,VZV20

 1
75504-32010

CV20,SV2#

COLD SPEC

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-32030

CV20,SV2#,VZV20..SED

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-32030

CV20,SV2#,VZV20..SED

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-32020

CV20,SV2#,VZV20..SED

 8
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-20060

CV20,SV2#,VZV20..SED

 8
75549A - MOULDING, WINDSHIELD OUTSIDE SUB
75549-32040

CV20,SV2#,VZV20..SED

COLD SPEC

 1
75549-32040

CV20,SV20,21,VZV20..SED

 1
75961 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
75961-32010

CV20,SV2#,VZV20..SED

 1
75962 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
75962-32010

CV20,SV2#,VZV20..SED

 1
Linked diagrams
8716
