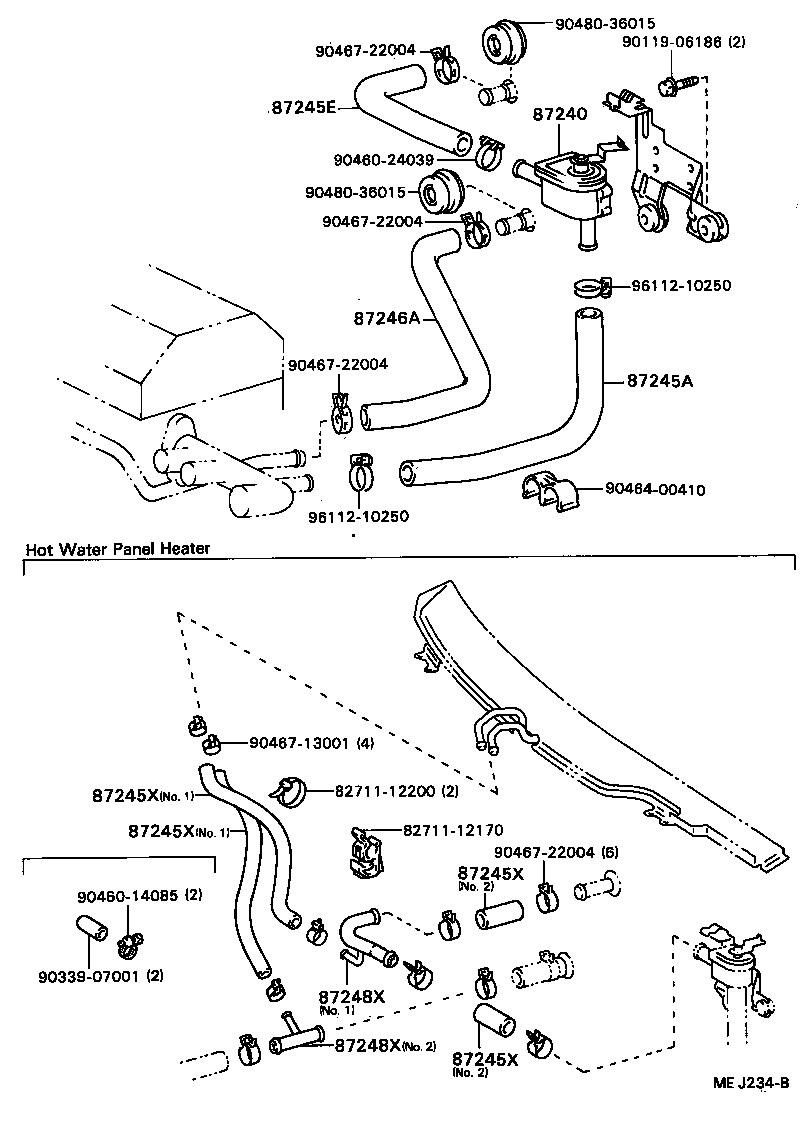

Toyota Camry/vista SV21 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87240 - VALVE ASSY, HEATER WATER
87240-32040	CV20,SV2#,VZV20	08/1986 - 08/1988	1
87245A - HOSE, HEATER WATER, INLET A
87245-32160	CV20,SV21	08/1986 - 10/1987	1
87245-32160	CV20,SV21,25	10/1987 - 08/1988	1
87245E - HOSE, HEATER WATER, INLET E
87245-32150	CV20,SV2#,VZV20	08/1986 - 08/1988	1
87245X - HOSE, HEATER WATER
99556-12500	CV20,SV2#,VZV20 長さ=500	09/1987 - 08/1988	1
99556-30100	CV20,SV2#,VZV20 *H,L=50,NO.2	09/1987 - 08/1988	2
99556-30100	CV20,SV2# *H,L=50,NO.2	10/1986 - 09/1987	2
99556-12500	CV20,SV2# 長さ=500,NO.1	10/1986 - 09/1987	1
87245X - HOSE, HEATER WATER
99556-12500	CV20,SV2#,VZV20 長さ=500	09/1987 - 08/1988	1
99556-30100	CV20,SV2#,VZV20 *H,L=50,NO.2	09/1987 - 08/1988	2
99556-30100	CV20,SV2# *H,L=50,NO.2	10/1986 - 09/1987	2
99556-12500	CV20,SV2# 長さ=500,NO.1	10/1986 - 09/1987	1
87245X - HOSE, HEATER WATER
99556-12500	CV20,SV2#,VZV20 長さ=500	09/1987 - 08/1988	1
99556-30100	CV20,SV2#,VZV20 *H,L=50,NO.2	09/1987 - 08/1988	2
99556-30100	CV20,SV2# *H,L=50,NO.2	10/1986 - 09/1987	2
99556-12500	CV20,SV2# 長さ=500,NO.1	10/1986 - 09/1987	1
87245X - HOSE, HEATER WATER
99556-12500	CV20,SV2#,VZV20 長さ=500	09/1987 - 08/1988	1
99556-30100	CV20,SV2#,VZV20 *H,L=50,NO.2	09/1987 - 08/1988	2
99556-30100	CV20,SV2# *H,L=50,NO.2	10/1986 - 09/1987	2
99556-12500	CV20,SV2# 長さ=500,NO.1	10/1986 - 09/1987	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32110	SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX	08/1986 - 08/1988	1
87248X - PIPE, HEATER WATER
87248-20300	CV20,SV2# NO.2	10/1986 - 09/1987	1
87248-20300	CV20,SV2#,VZV20 NO.2	09/1987 - 08/1988	1
87248-32030	SV21 NO.1	10/1986 - 10/1987	1
87248-32030	SV21,25 NO.1	10/1987 - 08/1988	1
87248X - PIPE, HEATER WATER
87248-20300	CV20,SV2# NO.2	10/1986 - 09/1987	1
87248-20300	CV20,SV2#,VZV20 NO.2	09/1987 - 08/1988	1
87248-32030	SV21 NO.1	10/1986 - 10/1987	1
87248-32030	SV21,25 NO.1	10/1987 - 08/1988	1
Common parts
82711-12170
82711-12200
90119-06186
90339-07001
90460-14085
90460-24039
90464-00410
90467-13001
90467-22004
90480-36015
96112-10250

SV21-UEMGK (1986)

(8608- )SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX
