SV21-UEMGK (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )GT,PRO,VE,VL,VR,VX,ZE,ZT,ZX

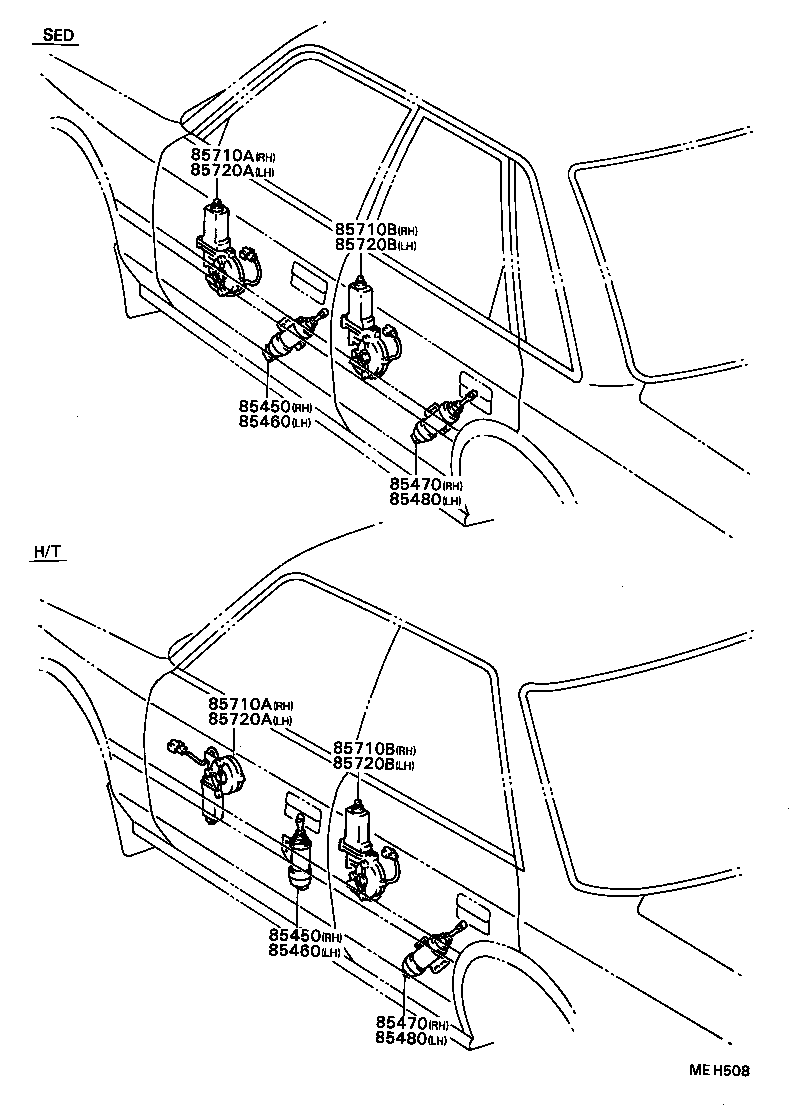

Click highlighted areas on diagram

diagram 85450 85450 85460 85460 85470 85470 85480 85480 85710A 85710A 85710B 85710B 85720A 85720A 85720B 85720B
Part # Description Qty Price
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-17030

SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)

 1
85450-17030

SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)

 1
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-17030

SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)

 1
85450-17030

SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85450-17020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85450-17020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH
85450-30530

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH
85450-30530

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH
85450-30540

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH
85450-30540

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-32040

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-32040

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85710-32050

CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85710-32050

CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-32040

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-32040

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85720-32050

CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85720-32050

CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX

 1
