SV21-UEMGK (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

Click highlighted areas on diagram

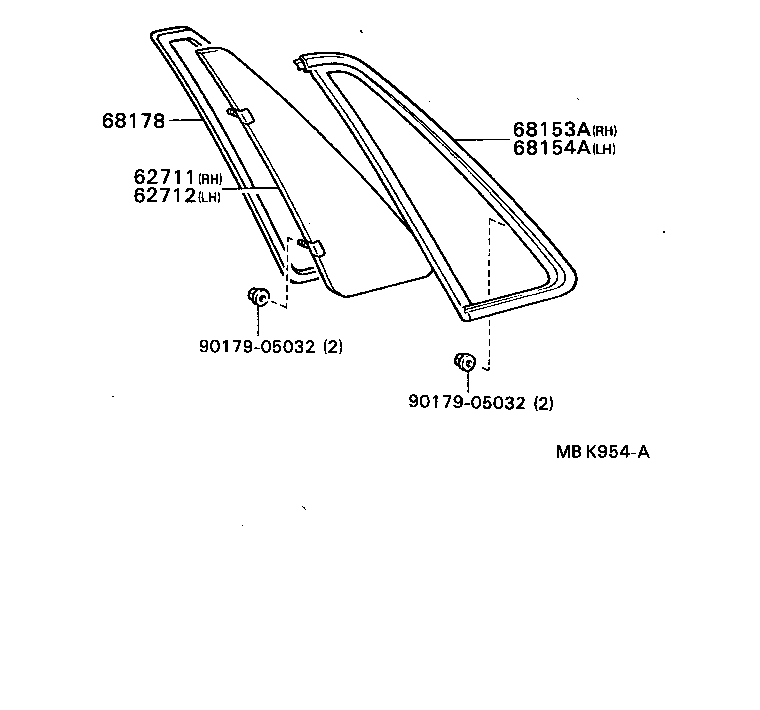

diagram 62711 62712 68153A 68154A 68178 9017905032 9017905032
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-32200

SV2#..SED..(VR,VX)

*TT.厚さ=3.5,*TT,T=3.5

 1
62711-32230

SV2#..SED..(VR,VX)

*TT.厚さ=3.5,ﾌﾞﾛﾝｽﾞ,BRONZE,*TT,T=3.5

 1
62711-32200

SV2#..SED..(VR,VX)

*TT.厚さ=3.5

 1
62711-32230

SV2#..SED..(VR,VX)

*TT.厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-32210

SV2#..SED..(VR,VX)

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,BRONZE,*TT,T=3.5

 1
62712-32180

SV2#..SED..(VR,VX)

*TT,厚さ=3.5,*TT,T=3.5

 1
62712-32180

SV2#..SED..(VR,VX)

*TT,厚さ=3.5

 1
62712-32210

SV2#..SED..(VR,VX)

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
68153A - MOULDING, QUARTER WINDOW NO.2 GLASS, RH
68153-32040

CV20,SV2#,VZV20..SED

 1
68154A - MOULDING, QUARTER WINDOW NO.2 GLASS, LH
68154-32040

CV20,SV2#,VZV20..SED

 1
68178 - SEAL, QUARTER WINDOW NO.2 GLASS
68177-32030

CV20,SV2#,VZV20..SED

 2
68177-32030

CV20,SV2#,VZV20..SED

 1
Common parts
90179-05032
