SV21-UEMGK (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

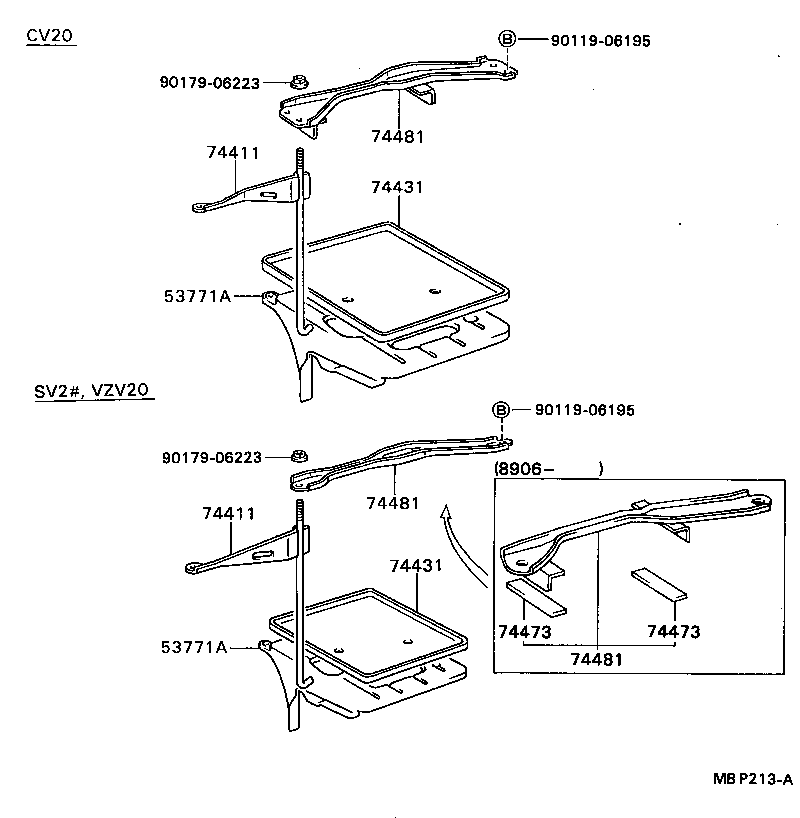

Click highlighted areas on diagram

diagram 53771A 53771A 74411 74411 74431 74431 74473 74473 74481 74481 74481 9011906195 9011906195 9017906223 9017906223
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-32020

CV20,SV2#,VZV20

 1
53771A - SUPPORT, BATTERY CARRIER
53771-32020

CV20,SV2#,VZV20

 1
74411 - CARRIER, BATTERY
74403-32020

SV21,VZV20..5F..(GT,PRO);SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
74411 - CARRIER, BATTERY
74403-32020

SV21,VZV20..5F..(GT,PRO);SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
74431 - TRAY, BATTERY
74431-14050

SV21,25..5F

 1
74431-14020

SV21,25..5F

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74431 - TRAY, BATTERY
74431-14050

SV21,25..5F

 1
74431-14020

SV21,25..5F

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-32040

SV21,VZV20..5F..(GT,PRO);SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-32040

SV21,VZV20..5F..(GT,PRO);SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-32040

SV21,VZV20..5F..(GT,PRO);SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
Common parts
90119-06195
90179-06223
