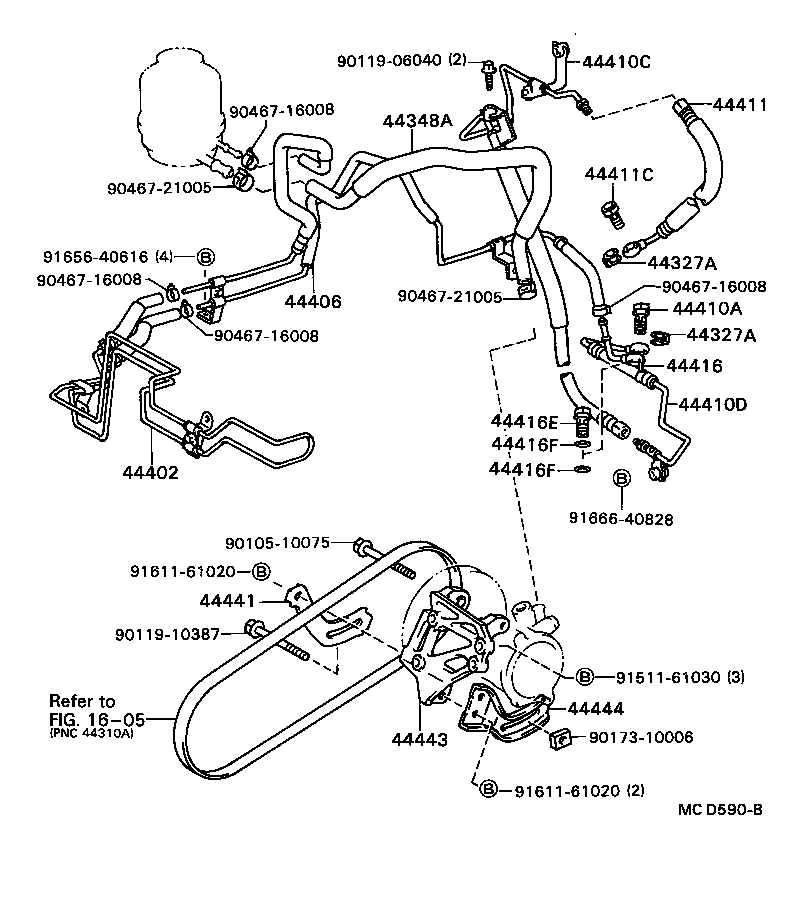

Toyota Camry/vista SV21 POWER STEERING TUBE

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-12020	SV21,VZV20..PRO,VX,ZX GEAR SIDE	08/1988 - 07/1990	1
44327-12010	SV21,VZV20..PRO,VX,ZX VANE PUMP SIDE	08/1988 - 07/1990	1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12020	SV21,VZV20..PRO,VX,ZX GEAR SIDE	08/1988 - 07/1990	1
44327-12010	SV21,VZV20..PRO,VX,ZX VANE PUMP SIDE	08/1988 - 07/1990	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-32100	SV2#..GT,LUM,VE,VL,VR,VX,XT,ZE,ZX	08/1988 - 07/1990	1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-32130	VZV20..SED;SV21..VX,ZX	08/1988 - 07/1990	1
44406 - TUBE SUB-ASSY, RETURN
44406-32030	SV21,VZV20..PRO,VX,ZX ｱﾘ(*66)	08/1988 - 07/1990	1
44406-32040	SV21,VZV20..PRO,VX,ZX	08/1988 - 07/1990	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-17002	SV21,VZV20..PRO,VX,ZX	08/1988 - 07/1990	1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-32360	SV21..VX,ZX	08/1988 - 07/1990	1
44410D - TUBE ASSY, PRESSURE FEED, NO.2
44410-32171	SV21..VX,ZX	08/1988 - 07/1990	1
44411 - HOSE, PRESSURE FEED
44411-32100	SV21..VX,ZX	08/1988 - 07/1990	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008	SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX	08/1988 - 07/1990	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-32010	SV21..VX,ZX	08/1988 - 07/1990	1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-16013	SV21,VZV20..PRO,VX,ZX	08/1988 - 07/1990	1
44416F - GASKET(FOR RETURN TUBE)
90430-17005	SV21,VZV20..PRO,VX,ZX	08/1988 - 07/1990	2
44416F - GASKET(FOR RETURN TUBE)
90430-17005	SV21,VZV20..PRO,VX,ZX	08/1988 - 07/1990	2
44441 - BRACKET, PUMP, FRONT
44441-32010	SV2#..GT,LUM,VE,VL,VR,VX,XT,ZE,ZX	08/1988 - 07/1990	1
44443 - BRACKET, PUMP
44443-20050	SV21,25	08/1988 - 07/1990	1
44444 - STAY, PUMP, REAR
44444-20030	SV21,25	08/1988 - 07/1990	1
Common parts
90105-10075
90119-06040
90119-10387
90173-10006
90467-16008
90467-21005
91511-61030
91611-61020
91656-40616
91666-40828
Linked diagrams
1605

SV21-UEMGK (1988)

(8808- )GT,VX,ZX
