SV21-JEPVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

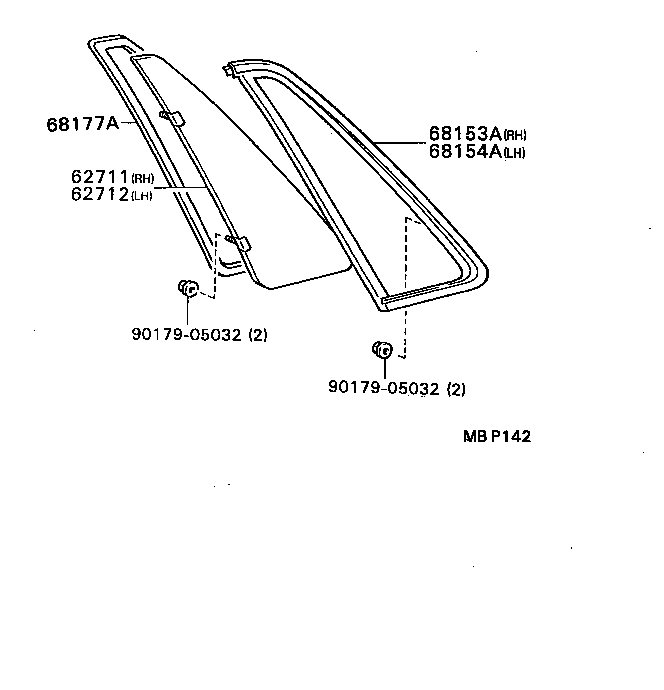

Click highlighted areas on diagram

diagram 62711 62712 68153A 68154A 68177A 9017905032 9017905032
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-32190

SV2#,VZV20..SED..(GT,PRO,ZE,ZX)

*TT.厚さ=3.5

 1
62711-32220

SV2#,VZV20..SED..(GT,PRO,ZE,ZX)

*TT.厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-32250

SV2#,VZV20..SED..(GT,PRO,ZE,ZX)

*TT,厚さ=3.5

 1
62712-32200

SV2#,VZV20..SED..(GT,PRO,ZE,ZX)

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
68153A - MOULDING, QUARTER WINDOW NO.2 GLASS, RH
68153-32040

CV20,SV2#,VZV20..SED

 1
68154A - MOULDING, QUARTER WINDOW NO.2 GLASS, LH
68154-32040

CV20,SV2#,VZV20..SED

 1
68177A - SEAL, QUARTER WINDOW NO.2 GLASS, NO.1
68177-32030

CV20,SV2#,VZV20..SED

 1
Common parts
90179-05032
