SV21-JEPVF (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3SGE

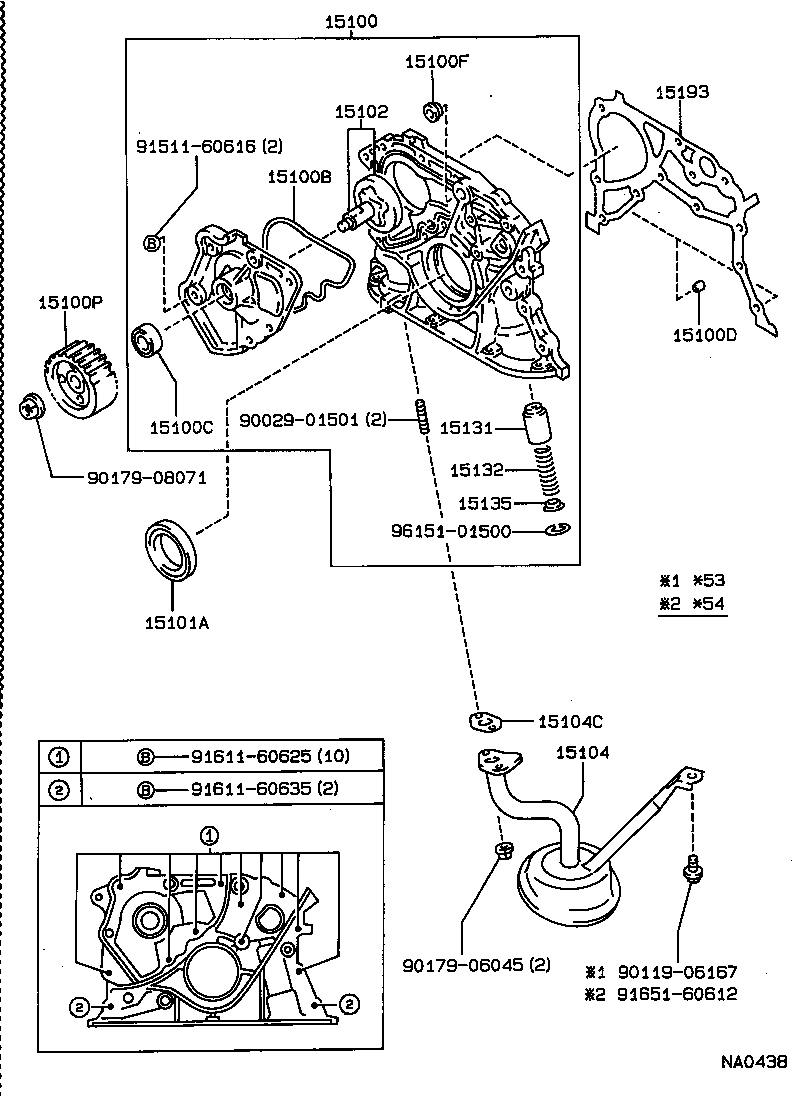

Click highlighted areas on diagram

diagram 15100 15100B 15100C 15100D 15100F 15100P 15101A 15102 15104 15104C 15131 15132 15135 15193 9002901501 9011906167 9017906045 9017908071 9151160616 9161160625 9161160635 9165160612 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-88360

3SGE..SV21

 1
15100B - RING, O(FOR OIL PUMP)
15188-63010

3SGE..SV21

 1
15100C - SEAL(FOR OIL PUMP)
15165-70010

3SGE..SV21

 1
15100D - PIN(FOR OIL PUMP SET)
90253-09001

3S#,4SFI..SV2#

 2
15100F - BUSH (FOR OIL PUMP)
90029-38300

3SGE..SV21

 1
90029-38300

3S#,4SFI..SV2#

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-88360

3SGE..SV21

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-42003

3S#,4SFI..SV2#

 1
90311-42003

3SGE..SV21

 1
15102 - ROTOR SET, OIL PUMP
15102-63010

3S#,4SFI..SV2#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-88380

3SGE..SV21

 1
15104-88380

3S#,4SFI..SV2#

 1
15104-88361

3SGE..SV21

 1
15104C - GASKET(FOR OIL STRAINER)
15149-74020

3S#,4SFI..SV2#

*53

 1
23293-88360

3SGE..SV21

*54

 1
15149-88360

3SGE..SV21

*54

 1
15149-88360

3S#,4SFI..SV2#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

3S#,4SFI..SV2#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

3S#,4SFI..SV2#

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

3S#,4SFI..SV2#

 1
15193 - GASKET, OIL PUMP
15197-63021

3S#,4SFI..SV2#

 1
15197-63020

3S#,4SFI..SV2#

 1
Common parts
90029-01501
90119-06167
90179-06045
90179-08071
91511-60616
91611-60625
91611-60635
91651-60612
96151-01500
