SV21-JEPVF (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3SGE

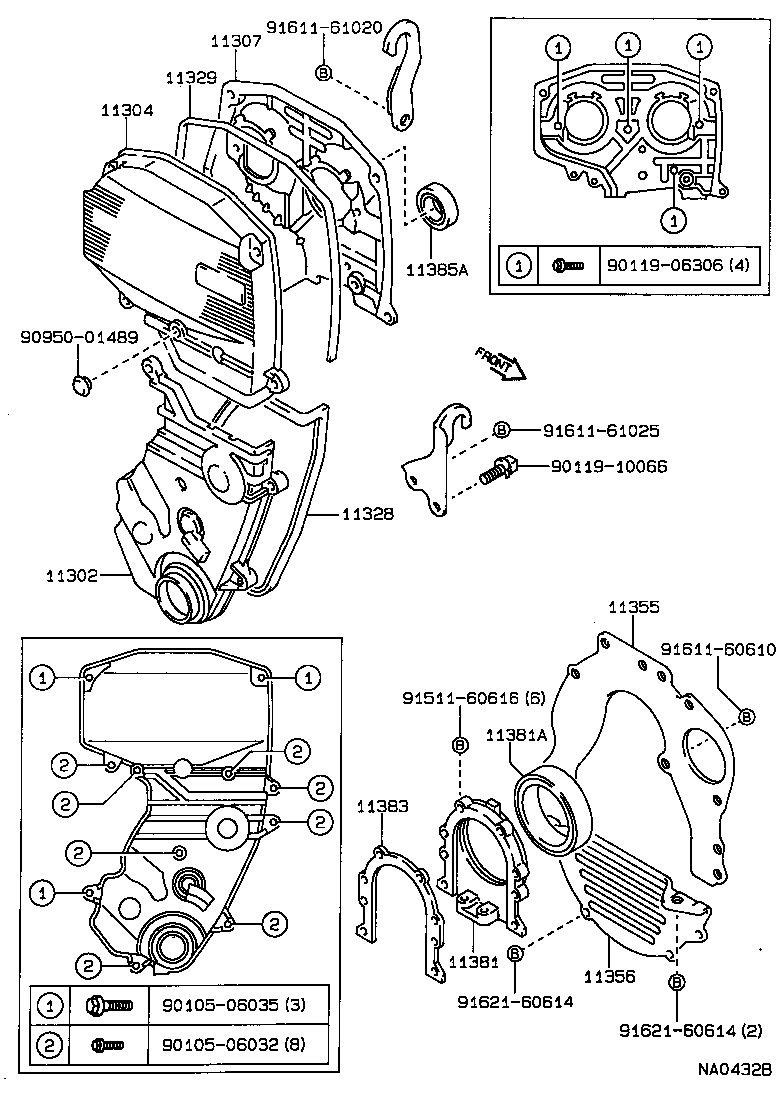

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-88360 |
3SGE..SV21 |
1 | ||
| 11321-74031 |
3SGE..SV21 |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11322-88361 |
3SGE..SV21 |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11323-88361 |
3SGE..SV21 *54 |
1 | ||
| 11323-88361 |
3SGE..SV21 *53 |
1 | ||
| 11323-74050 |
3SGE..SV21 *53 |
1 | ||
| 11323-88360 |
3SGE..SV21 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-88361 |
3SGE..SV21 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-88360 |
3SGE..SV21 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-63021 |
3SGE..SV21 |
1 | ||
| 11356 - PLATE, REAR END, NO.2 | ||||
| 11356-63030 |
3S#,4SFI..SV2# |
1 | ||
| 11356-63031 |
3S#,4SFI..SV2# |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-63012 |
3S#,4SFI..SV2# |
1 | ||
| 11381-63011 |
3S#,4SFI..SV2# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-89001 |
3SGE..SV21 |
1 | ||
| 90311-85003 |
3S#,4SFI..SV2# |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-63011 |
3S#,4SFI..SV2# *53 |
1 | ||
| 11383-88380 |
3SGE..SV21 *54 |
1 | ||
| 11383-63010 |
3S#,4SFI..SV2# *53 |
1 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-35008 |
3SGE..SV21 |
2 | ||
| Common parts | ||||
| 90105-06032 | ||||
| 90105-06035 | ||||
| 90119-06306 | ||||
| 90119-10066 | ||||
| 90950-01489 | ||||
| 91511-60616 | ||||
| 91611-60610 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91621-60614 | ||||
