SV21-JEPVF (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )SED

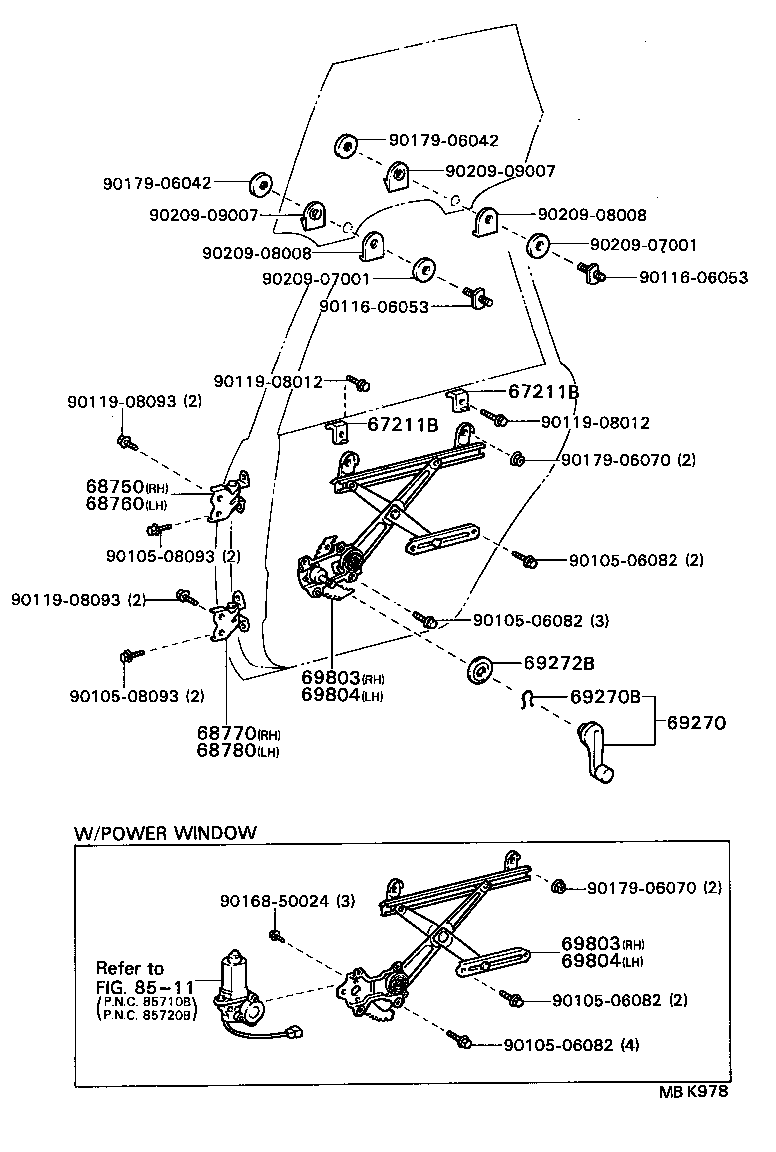

Click highlighted areas on diagram

diagram 67211B 67211B 68750 68760 68770 68780 69270 69270B 69272B 69803 69803 69804 69804 8511 9010506082 9010506082 9010506082 9010506082 9010508093 9010508093 9011606053 9011606053 9011908012 9011908012 9011908093 9011908093 9016850024 9017906042 9017906042 9017906070 9017906070 9020907001 9020907001 9020908008 9020908008 9020909007 9020909007
Part # Description Qty Price
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-32010

CV20,SV2#,VZV20..SED

 4
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-32010

CV20,SV2#,VZV20..SED

 4
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32020

CV20,SV2#,VZV20

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32020

CV20,SV2#,VZV20

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-32020

CV20,SV2#,VZV20

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-32020

CV20,SV2#,VZV20

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-32020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
69803-32020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-32020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
69803-32020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-32020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
69804-32020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-32020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
69804-32020

CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)

 1
Common parts
90105-06082
90105-08093
90116-06053
90119-08012
90119-08093
90168-50024
90179-06042
90179-06070
90209-07001
90209-08008
90209-09007
Linked diagrams
8511
