SV21-JEPMK (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

Click highlighted areas on diagram

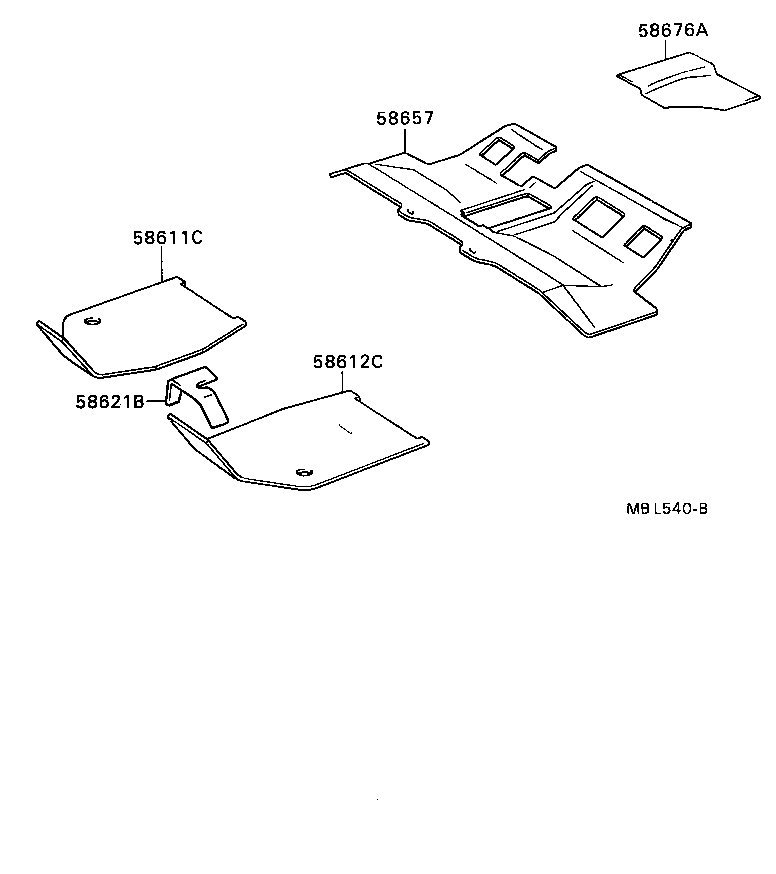

diagram 58611C 58612C 58621B 58657 58676A
Part # Description Qty Price
58611C - SHEET, FRONT FLOOR SILENCER, RH
58611-32020

CV20,SV2#,VZV20

 1
58611-32020

CV20,SV20,21,VZV20

 1
58612C - SHEET, FRONT FLOOR SILENCER, LH
58612-32020

CV20,SV2#,VZV20

 1
58621B - PAD, FRONT FLOOR SILENCER
58621-32020

CV20,SV2#,VZV20..4FC

 1
58621-32020

CV20,SV20,21,VZV20..4FC

 1
58657 - PAD, UNDER REAR SEAT SILENCER
58657-32030

CV20,SV20,21,VZV20

 1
58657-32030

CV20,SV2#,VZV20

 1
